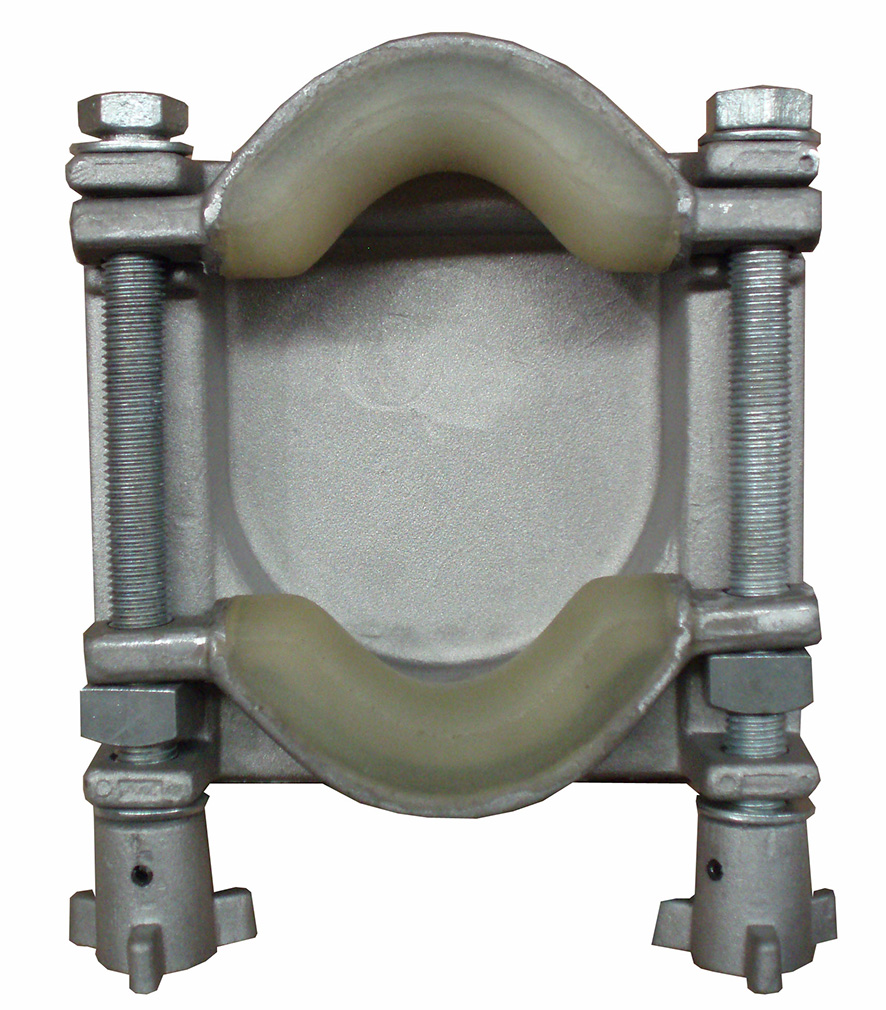

Insulator bracket, suit SPP-1A max 125mm OD insulator flange, sml/med neck insulators

Ten Group // PULLING AND HAULING // Cable Rollers // Overhead Distribution Rollers // Insulator bracket, suit SPP-1A max 125mm OD insulator flange, sml/med neck insulators
Insulator bracket, suit SPP-1A max 125mm OD insulator flange, sml/med neck insulators


Code: SPP-1A-2A
Brand: Scott Power Products
Product Details:
Insulator bracket, suit SPP-1A max 125mm OD insulator flange, sml/med neck insulators

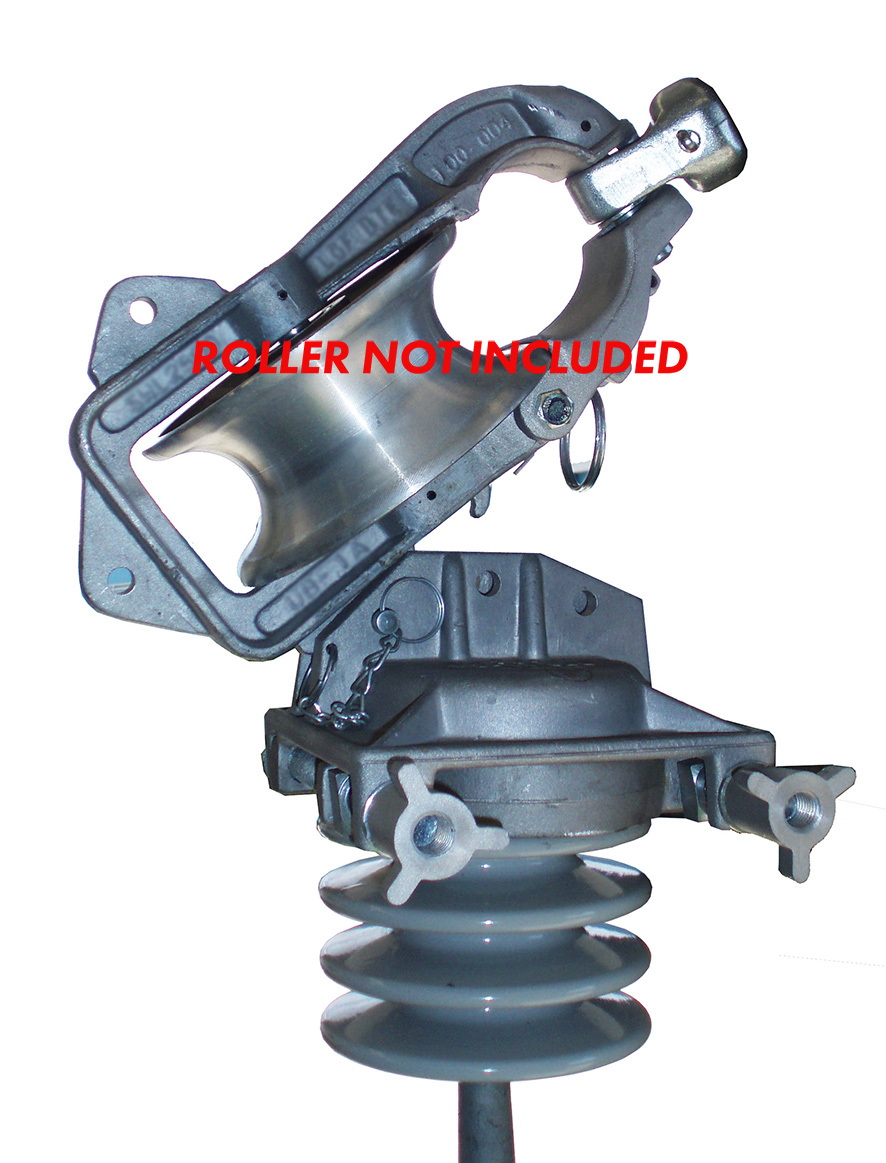

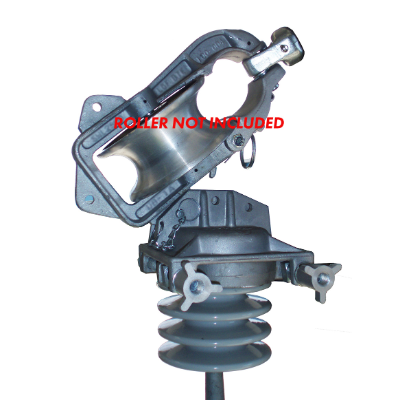

Tie Top Post Insulator Bracket for Universal Roller SPP-1A - SPP

High quality cable tray rollers for underground cable pulling operations. Built tough and engineered for Australia’s harshest project environments, SPP gear is trusted by utility crews and contractors nation-wide.

  • Manufactured from cast aluminium with urethane jaws
  • Easy to operate reverse twist knobs
  • Suits maximum insulator 123mm OD neck
Part No.Max Insulator Throat (mm)WLL** (kg)Wt (kg)
SPP-1A-2A123Refer Universal Roller Bracket - Load ratings2.6

Refer Insulator minimum failure load when considering the WLL
