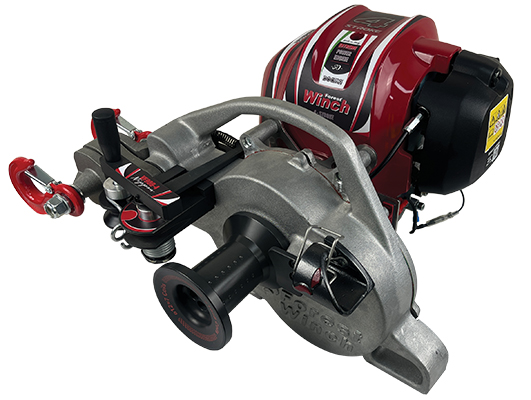

Winch, Capstan, 865kg capacity, Honda Petrol 4stroke Portable Winch, DOCMA
Winch, Capstan, 865kg capacity, Honda Petrol 4stroke Portable Winch, DOCMA
Code: VF900-4
Brand: Docma Srl
Product Details
Winch, Capstan, 865kg capacity, Honda Petrol 4stroke Portable Winch, DOCMA
Brand: Docma Srl
Product Details
Winch, Capstan, 865kg capacity, Honda Petrol 4stroke Portable Winch, DOCMA
Docma offer a highly innovative range of Winches for Pulling and lifting loads for the Power Utilities, Telecommunication, Railway, Mining, Oil and Gas industries.
They combine Italian quality materials, modern and functional design to achieve excellent Performance, Speed and Portability. Perform these tasks in remote locations or areas where power is not yet available.
The portable winches are designed to handle all of your day-to-day conductor pulls from loads of 865 to 1150kg (2300kg via single pulley).
The Innovative built-in rope accelerator, controlled by the operator, simply tug on the rope to start the pull/lift.
Features
- Italian Quality
- Pulling from remote locations no longer a challenge
- Ready for immediate use on site
- Over 1 tonne pulling capacity
- Built-In Rope Accelerator Switch
- Quickly mobilised and placed in working position

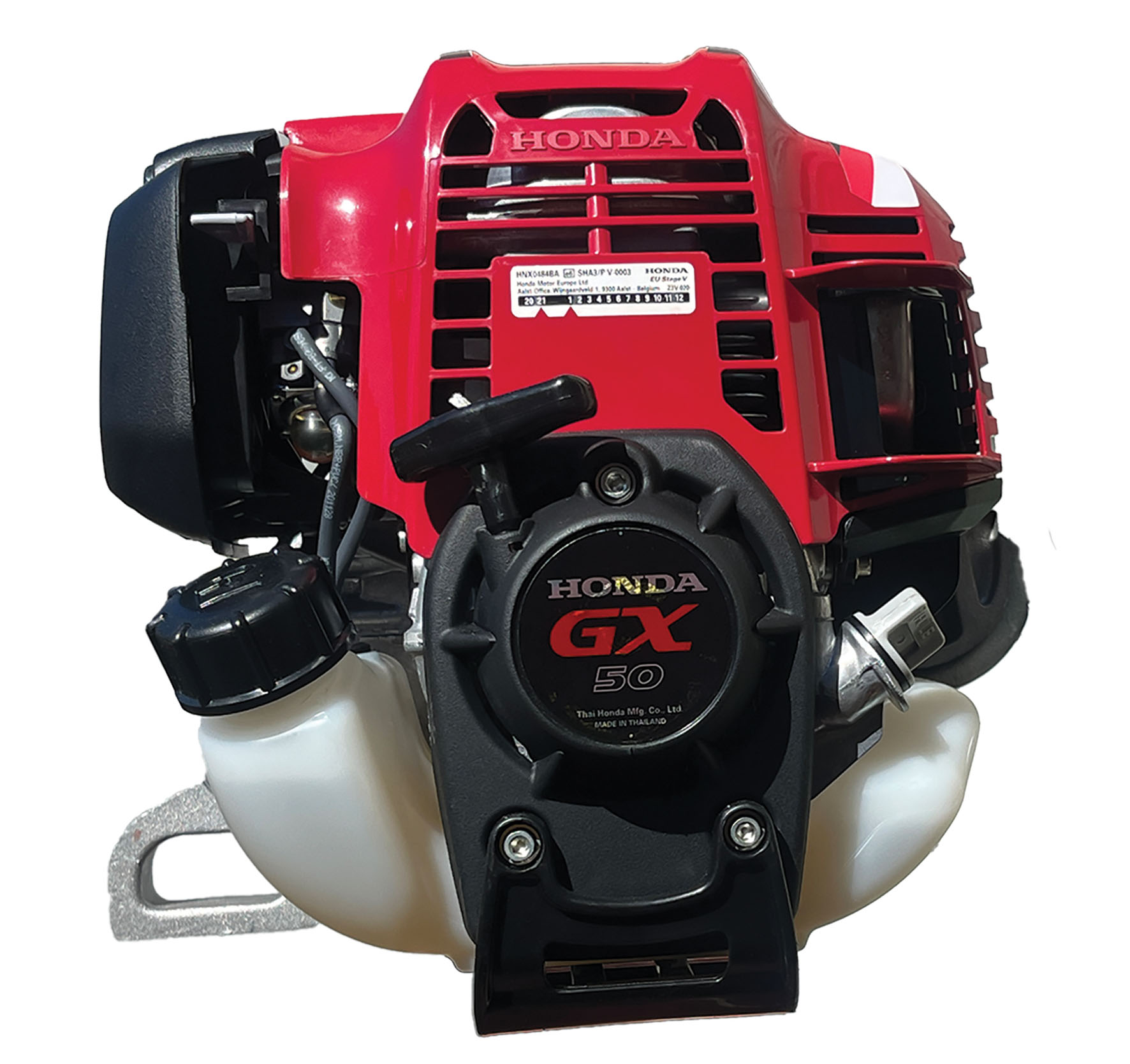

- 2 or 4 Stroke options (Honda 4 stroke HGX50)
- No tilt restrictions (Honda 4 stroke HGX50)
- Balanced Cast Carry Handle
- Wide range of attachment and accessories
| Part No | Capacity | Engine Type | Pull Speed | Engine | Rope | Weight | ||
|---|---|---|---|---|---|---|---|---|
| Pulling | Lifting | Size | Wraps on drum | |||||
| VF900-4 | 865 kg | 200 kg | 4 stroke | 14 metres/min | 50cc | 10/12* mm | 4/5 | 10.85 kg |
| VF105-2 | 1050 kg | 2 stroke | 20 metres/min | 50.8cc | 10/12* mm | 4/5 | 10.50 kg | |
*10 and 12mm Double Braid Polyester Hauling Rope available in a variety of lengths. Contact TEN for further information.
