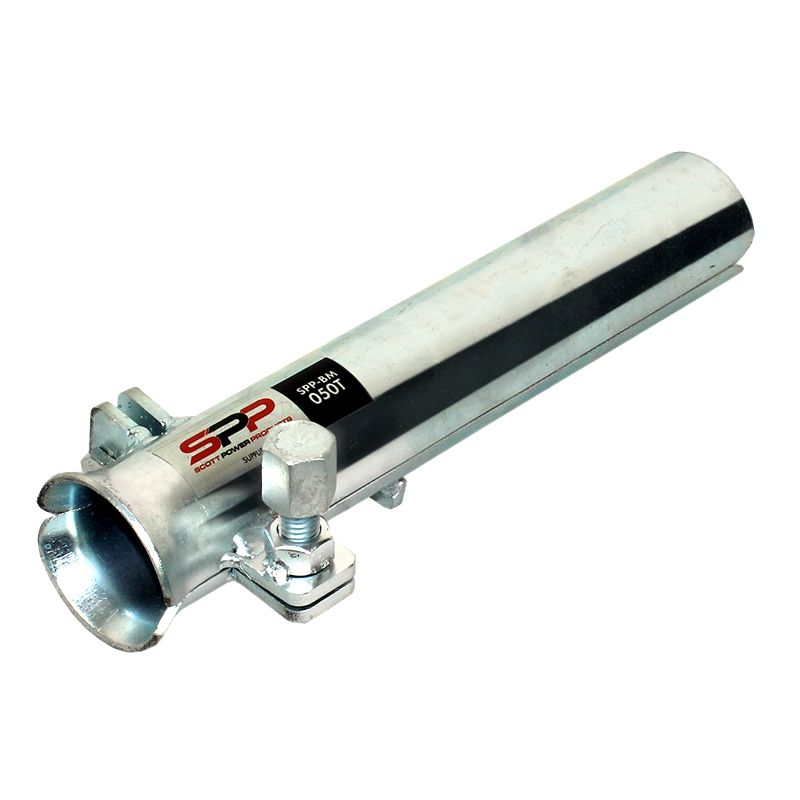

Bellmouth, feeding sheave, suit 50mm Telco conduit, SPP
SPP Bell-Mouth Cable Feeding - Lockable
Part No. SPP-BM-050T
| Part No | Neck OD | Suits Conduit Nminal Diameter | Split Feature | Dimensions | Wt (kg) | ||
|---|---|---|---|---|---|---|---|
| SPP-BM-050T | 48mm | 50mm Telco | Dual Wingnut | Length: 255mm | Width: 130mm | Height: 115mm | 1.3kg |
Features
- Bellmouths guide cables during installation, protecting the cable sheath and conduit from damage by reducing friction, preventing snags, and guiding the cable smoothly around sharp edges Made from Zinc Plated Steel
- Split design allows easy removal after cable installation
- Designed for cable entry applications
- Allows multi-direction entry into the conduit
| Part No | Neck OD | Suits Conduit Nminal Diameter | Split Feature | Dimensions | Wt (kg) | ||
|---|---|---|---|---|---|---|---|
| SPP-BM-050E | 42mm | 50mm Electrical | Dual Wingnut | Length: 255mm | Width: 120mm | Height: 115mm | 1.1kg |
| SPP-BM-063E | 48mm | 63mm Electrical | Dual Wingnut | Length: 255mm | Width: 140mm | Height: 115mm | 1.3kg |
| SPP-BM-063T | 60mm | 63 Telcomm | Hinged | Length: 250mm | Width: 117mm | Height: 110mm | 1.3kg |
| SPP-BM-080 | 74mm | 80mm | Hinged | Length: 250mm | Width: 130mm | Height: 140mm | 1.6kg |
| SPP-BM-100 | 98mm | 100mm | Hinged | Length: 250mm | Width: 177mm | Height: 155mm | 2.8kg |
| SPP-BM-125 | 118mm | 125mm | Hinged | Length: 250mm | Width: 200mm | Height: 165mm | 3.4kg |
| SPP-BM-150 | 138mm | 150mm | Hinged | Length: 250mm | Width: 220mm | Height: 175mm | 3.8kg |
| SPP-BM-200 | 190mm | 200mm | Hinged | Length: 300mm | Width: 297mm | Height: 260mm | 1.6kg |
