Roller, 3 corner, 45 degrees, suits radius 500, 550mmL, 170mmW

Ten Group // PULLING AND HAULING // Cable Rollers // Corner & Curve Rollers // Roller, 3 corner, 45 degrees, suits radius 500, 550mmL, 170mmW
Roller, 3 corner, 45 degrees, suits radius 500, 550mmL, 170mmW


Code: SPP-2D-3C45
Brand: Scott Power Products
Product Details:

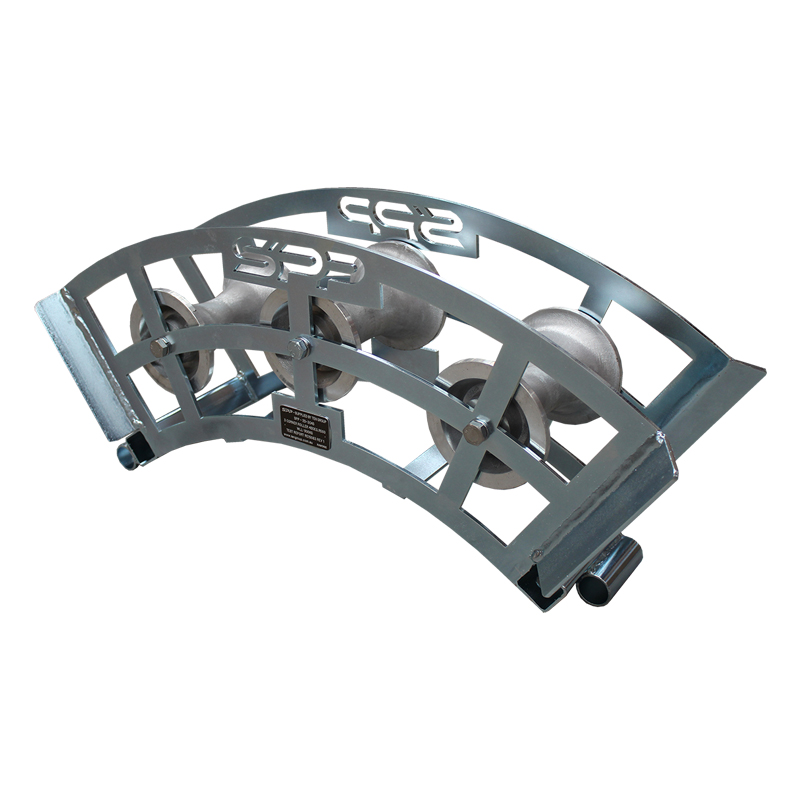

Roller, 3 corner, 45 degrees, suits radius 500, 550mmL, 170mmW

High quality cable tray rollers for underground cable pulling operations. Built tough and engineered for Australia’s harshest project environments, SPP gear is trusted by utility crews and contractors nation-wide.

  • Solid construction trench roller guides
  • Provisions to peg units down and join units together
  • Supplied with two internal bearings
  • Zinc plated finish
  • Aluminium or Nylon rollers available
  • Replacement rollers available
Part # Dimensions Angle Bend Radius No. of Rollers Rollers Max. Cable OD
SPP-2D-4C90 700mmL x 170mmW 90° 350mm & 600mm 4 Aluminium or Nylon 150mm
SPP-2D-3C45 550mmL x 170mmW 45° 500mm 3 Aluminium or Nylon 150mm
SPP-2D-4C45 800mmL x 170mmW 45° 900mm 4 Aluminium or Nylon 150mm
