Punch, hydraulic, remote head, 31kN, 21mm max hole, Al-Cu-St, 80mm throat, inc 4xpunches,TEN


Code: SB-80C
Brand: TEN
Product Details
Punch, hydraulic, remote head, 31kN, 21mm max hole, Al-Cu-St, 80mm throat, inc 4xpunches,TEN

Hydraulic Punch Head

The SB-80C Tower & Busbar punch is ideal for punching through steel tower legs & busbar, with a max hole diameter of 20.5mm. The punch is sold standard with 4 punch & dies (10.5, 13.5, 17.5 & 20.5mm) Additional accessories include die fixing tool, Allen key and Steel Carrying Case

Features

  • Body manufacture from high strength steel
  • Quick smooth punching with no burring
  • Positing plate for precise punch location
  • Include quick coupler for easy pump assembly
  • Operate with a single acting hydraulic pump

      • Technical Data

      Part No.SB-80C
      Output Force (T)31
      Pressure (PSI)10,000 (700bar)
      Tool Dimensions (mm)250 x 100 x 370
      Case Dimensions (mm)440 x 380 x 160
      Throat Depth (mm)80
      Weight (kg)13.5

        Punching capacity

        MaterialPunch Size (mm) ODMaterial Thickness (mm)
        Mild Steel20.510
        CU/AL20.513

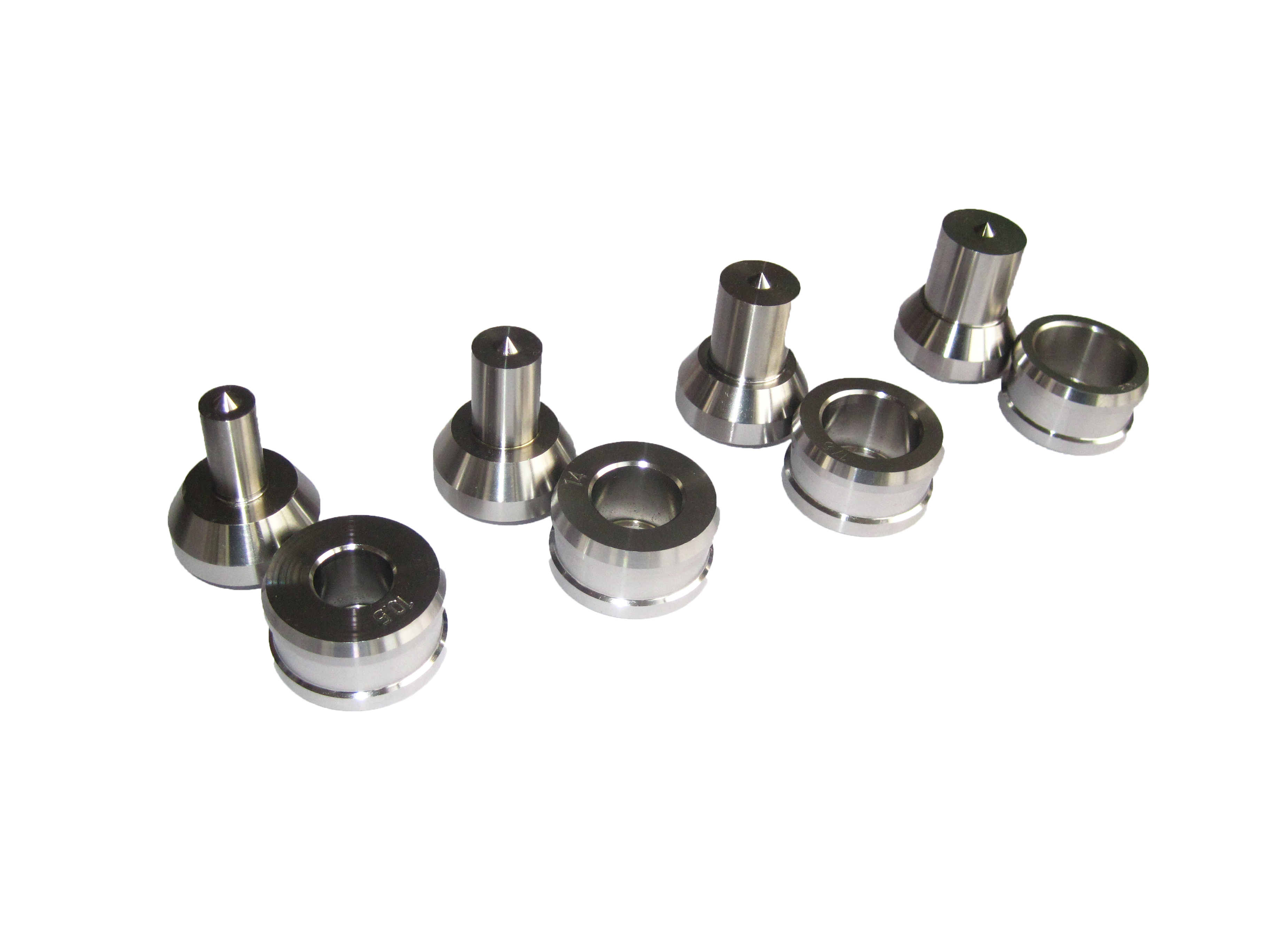

        10.5, 13.5, 17.5 & 20.5mm punch & dies included in kit

        NOTE: Optional punch & dies sold separately - 8.5, 11.5, 15.5 & 18.5mm
