Aluminium trimmer for ACSR

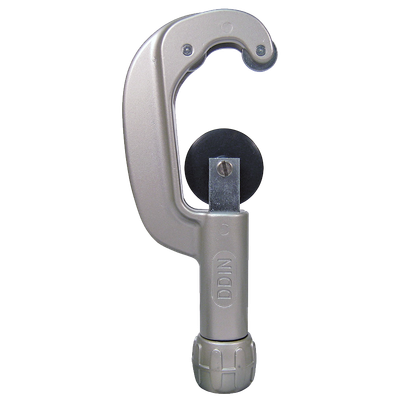

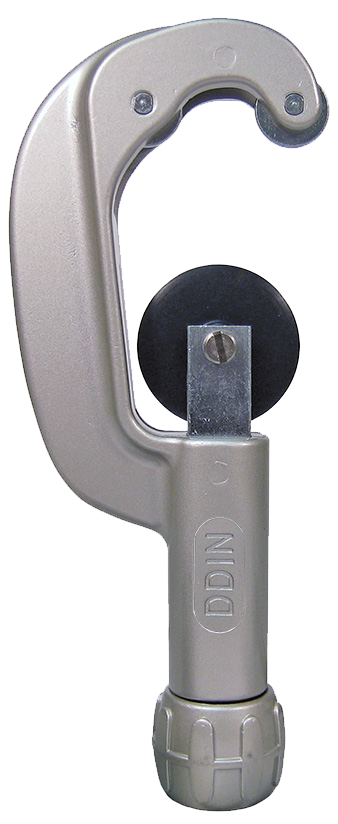

The PSC-1 ACSR Trimmer quickly and accurately removes the aluminium stranding from around the steel core of ACSR conductors in preparation for crimping the steel inner strand.

Features

• Strips the aluminium outer from ACSR
• Made of an aluminium alloy, lightweight and durable
• Operates like a Tube Cutter
• Carry case stores 11 bushings
• Wide range Bushing to suit Australian ACSR conductors for use with PSC-1, (See below sold separately)
• Kit contains:
  Tool, (1) bushing holder, (1) extra cutting wheel, and a plastic case that holds up to 11 bushings.



Available Bushing Sizes to suit Australian ACSR conductor sizes

Part No.	ACSR Conductor	Conductor ODmm
TE7016	CHERRY	14.3
TE7021	GRAPE	17.5
TE6375	LEMON	21.0
TE5778	LYCHEE	22.8
TE5782	LIME	24.5
TE5797	MANGO	27.0
TE5803	ORANGE	29.5
TE5809	OLIVE	31.5

*Other sizes available on request

Replacement Cutting Wheel TE54270
