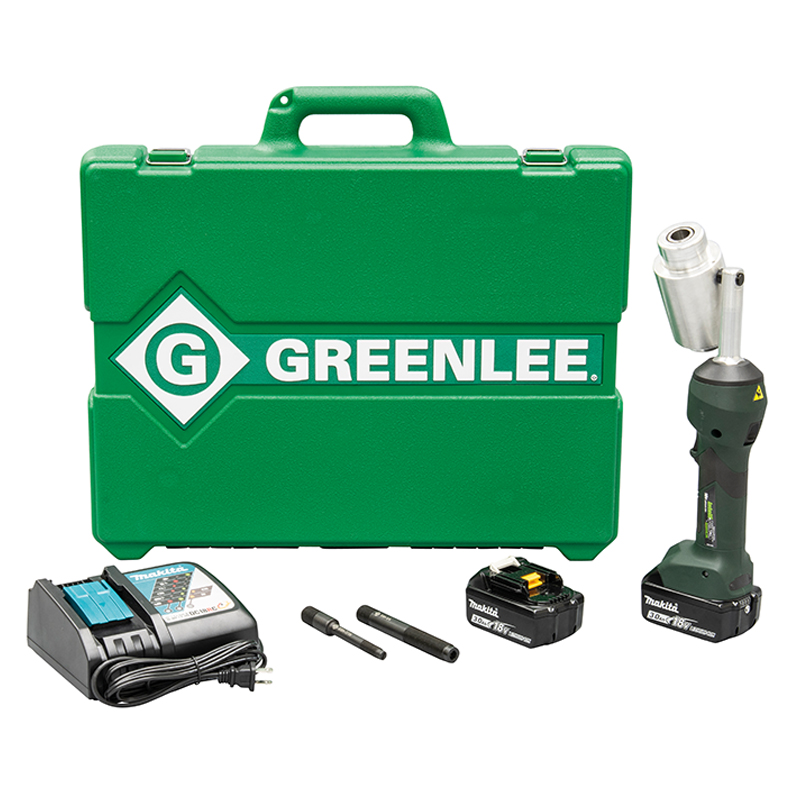

Punch, battery, hydraulic, 11T auto-stop, rotating head, 1x18 v4Ah batt & charger, Greenlee

Punch, battery, hydraulic, 11T auto-stop, rotating head, 1x18 v4Ah batt & charger, Greenlee


Code: LS100FLEXCFM
Brand: Klauke
Product Details
Punch, battery, hydraulic, 11T auto-stop, rotating head, 1x18 v4Ah batt & charger, Greenlee

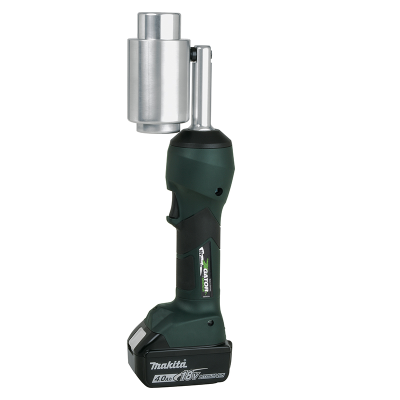

Greenlee Battery Powered Punch Driver

Inteli-PUNCH™ Driver – Greenlee - Made in Germany

The 11-Tonne Battery powered Punch Driver from Greenlee is the fastest, most powerful knockout driver available on the market today.

Features

  • Auto-Retract Technology Patent-Pending - Pressure-sensing technology accurately detects punch completion and automatically retracts the ram, for longer tool life
  • Time Saver - maximum cycle time of 8 seconds
  • Punch up to 161.9mm size holes in mild steel and 115.4mm holes in stainless steel
  • 360° Rotating Head - Rugged, patent-pending swivel design to punch at any angle
  • Compact, Ergonomic Design - Ergonomic tapered grip for easy one-handed operation
  • Gator Eye® Compatible - with i-Press™ software, monitor tool performance including peak forces and number of cycles
  • Compatibility - Works with all Greenlee knockouts. Same draw studs used with other Greenlee Hydraulic punches
  • Lightweight - 2.63kg
  • Led light for dark areas

Technical Data

Part No LS100FLEXCFM
Output Force 11kN
Battery Makita 18V - 4.0Ah
Charging Time 36 minutes
Weight 2.8kg with battery

Punching Capacity

Material Punch Size OD Material Thickness
Mild Steel 12.7mm to 15.4mm 3.4mm
Stainless Steel 12.7mm to 89.9mm 3.4mm
12.7mm to 115.4mm 2.6mm
