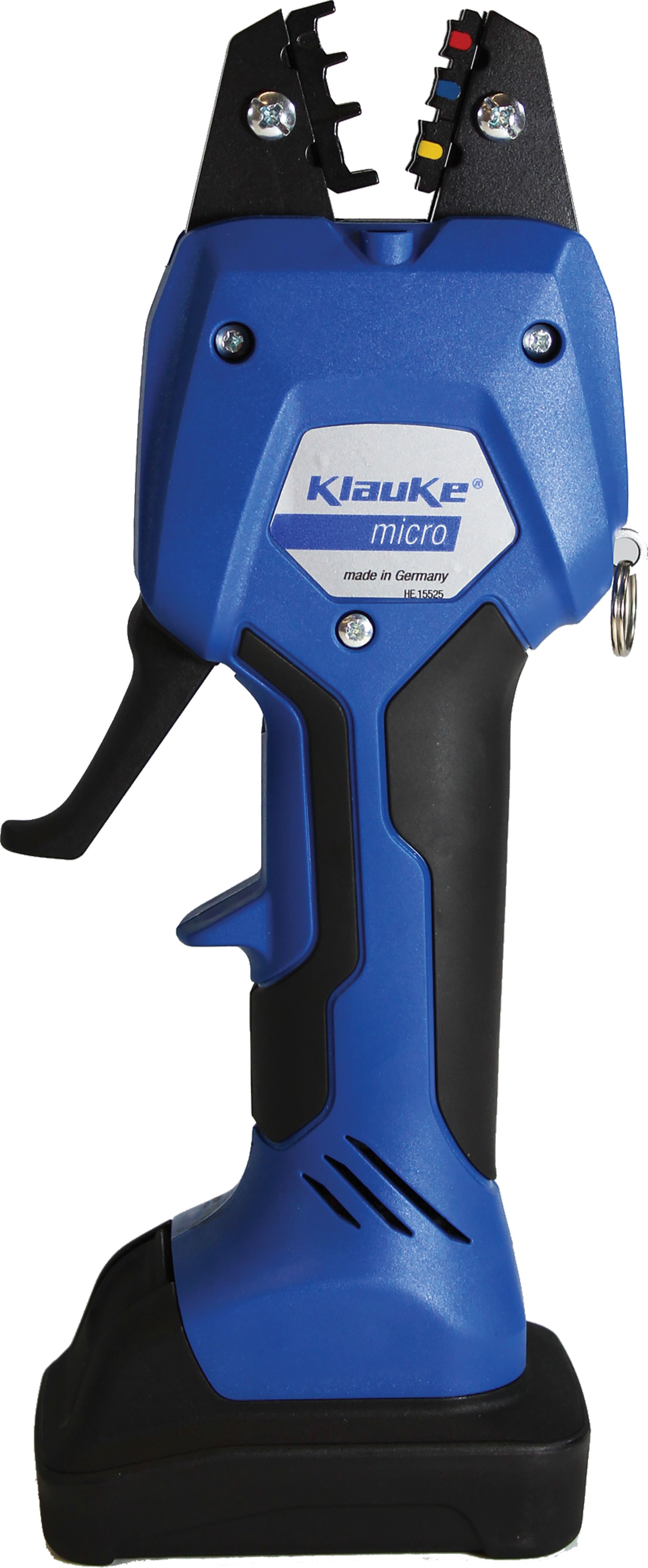

Die, series 50, for insulated lugs, double crimp, 0.1-1mm2, suits EK50MLAU, Klauke
Die, series 50, for insulated lugs, double crimp, 0.1-1mm2, suits EK50MLAU, Klauke


Code: IS503
Brand: Klauke
Product Details
Die, series 50, for insulated lugs, double crimp, 0.1-1mm2, suits EK50MLAU, Klauke


Klauke Dies - 50 Series

Part No. IS503 - For Insulated, double crimp Lugs 0.1 to 1mm2

Available Die Sizes

Part No.UseSize
AE501Bootlace lugs0.14 - 6mm²
AE502Bootlace lugs10.0 - 25mm²
AE503Bootlace lugs35.0 - 50mm²
BNC501Stud & shielded sleevesCoax 58, 59, 62, 71
CR501Non insulated receptacles0.25 - 6mm²
IS502Insulated lugs, single crimp10.0 - 16mm²
IS503Insulated lugs, double crimp0.1 - 1mm²
IS5071*Crimping, pre-insulated terminals0.5 - 6mm²
M50154Cu tubular lugs - solid conductor1.5 - 4mm²
M50610Cu tubular lugs - solid conductor6.0 - 10mm²
Q501Cu soulderless & pin term0.5 - 10mm2
R501Cu tubular lugs0.72 - 2.5mm²
R502Cu tubular lugs4.0 - 10mm²
SB501Turned pin receptacle, pin connector0.1 - 4mm²
