Electro Mechanical Ratchet Crimper 1.5T
Electro Mechanical Ratchet Crimper 1.5T

Code: EK50MLAU
Brand: Klauke
Product Details
Crimper, battery, ratchet, 1.5T, light, case, battery, charger, IS5071 die, Klauke

1.5T Electro Mechanical Ratchet Crimper

Part No. EKM50MLAU

Fast and easy to use like a mechanical crimping tool, powerful and efficient like a hydraulic tool. "TEN Group Klauke Crimping Tool"


  • High speed crimping time <1.5 seconds
  • Lightweight - Tool including battery less than 1kg
  • Efficient drive technology
  • Convenience of battery-powered hydraulic tools in one device
  • Compact design - Ideal for jobs where: - Connecting material has to be crimped quickly and in a high volume; - A handy, mobile tool is required, e.g. for switch cabinet construction; - and numerous other installation applications in trade and industry such as automotive wiring harnesses.
  • Automatic retraction

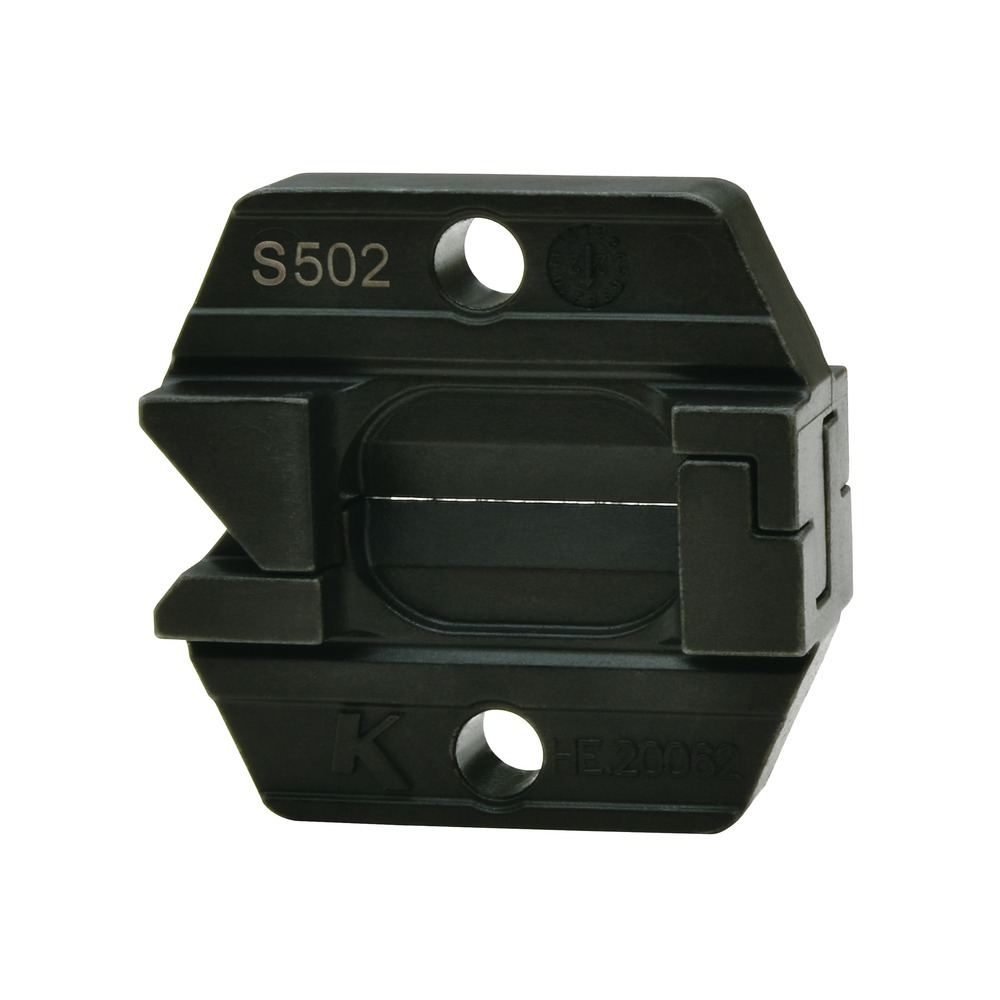

  • Interchangeable Klauke 50-Series crimping dies
  • LED light illuminates work area

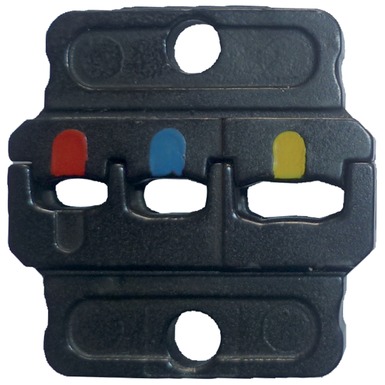

  • EK50MLAU includes tool, case, battery, charger & IS5071 die
Crimping Force15kN/ 1.5Tonne
Crimping Range0.14 - 50mm2
Crimping Range0.14 - 50mm2
Crimping Time<1.5 seconds
Crimps per Charge300@10mm2 Cu DIN 46234

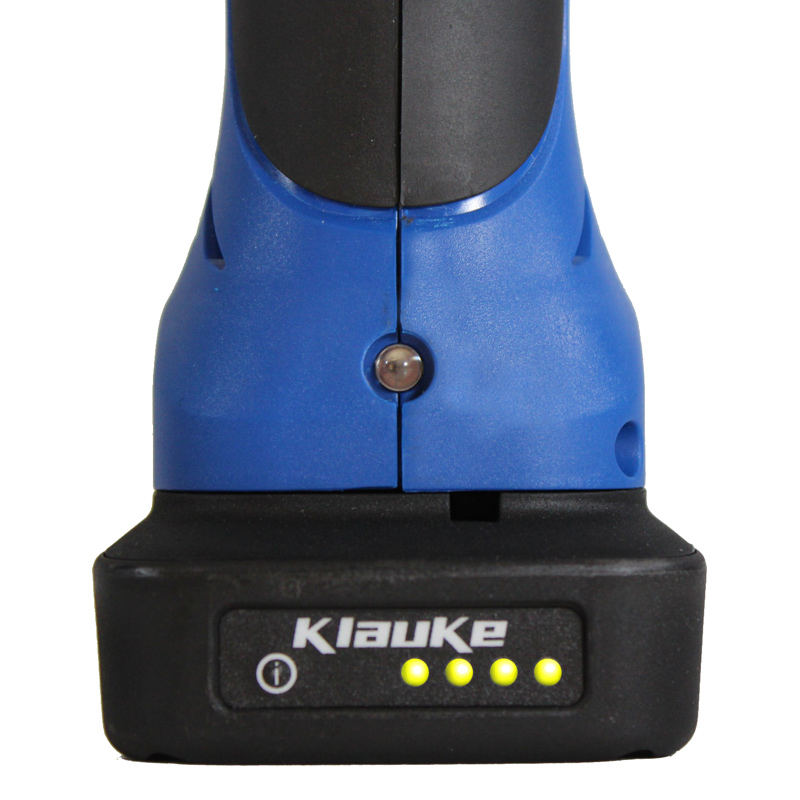

Battery1.5Ah/10.8V Li-ion
Charging Time40 minutes
Tool Weight0.96kg incl. battery
