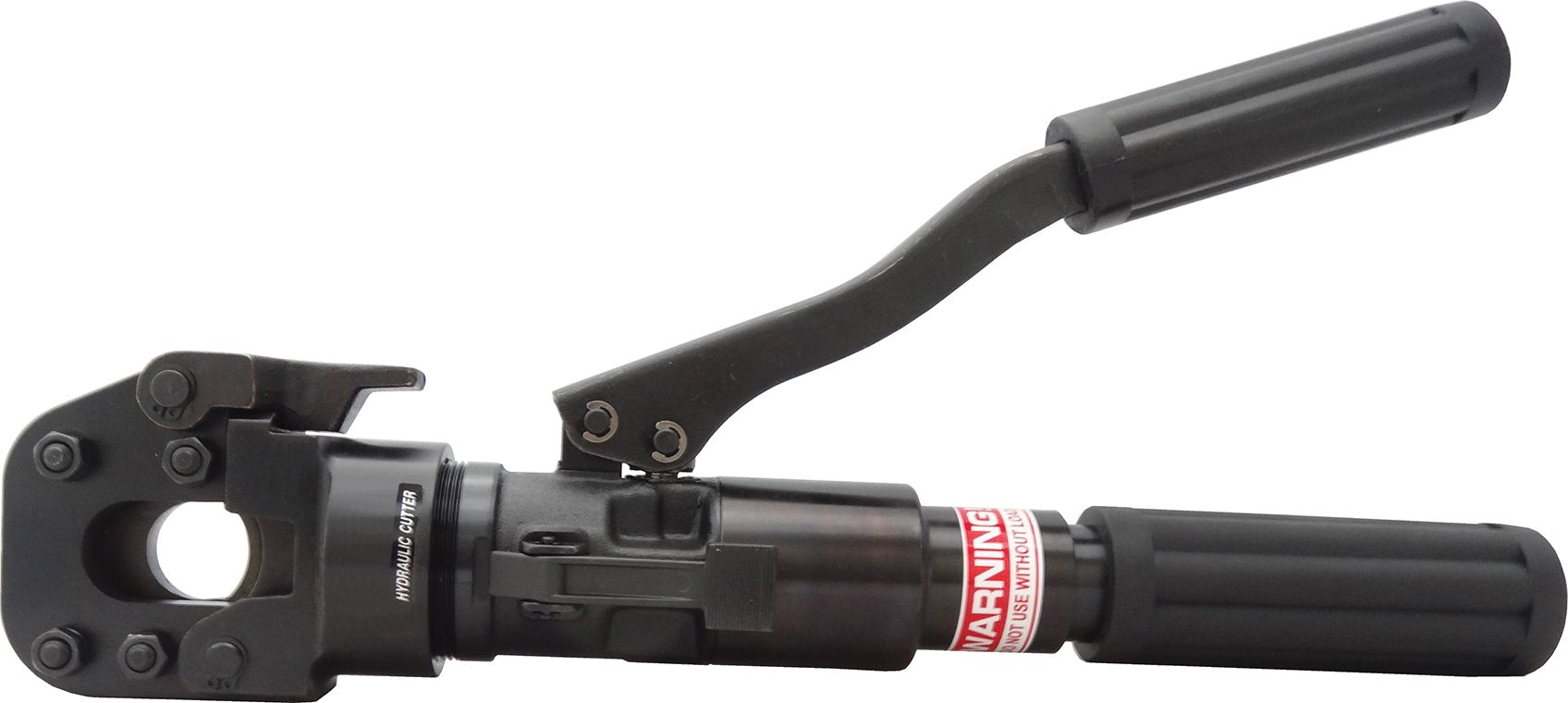

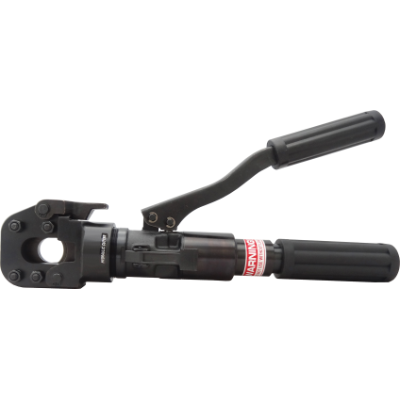

Hand hydraulic cutter, 20mm jaw opening, cuts 20mm AL/CU/ACSR, TEN

Hand hydraulic cutter, 20mm jaw opening, cuts 20mm AL/CU/ACSR, TEN


Code: HC-20A
Brand: TEN
Product Details
Cutter, hand Hydraulic, 20mm ACSR/AL/CU, 9mm Re-Bar, TEN


Cutters, Hand Operated - 20mm Capacity

  • Two stage double acting hydraulics
  • Ram extends on both open & closed operation
  • Manual pressure release at any stage
  • Flip top latch head
  • Replaceable blades
  • Part No.HC-20AHC-40A
    Brand/ManufacturerTENTEN
    Head Rotation (°)180180
    Cutting Force (T)68
    Safety ValveYesYes
    Length (mm)390560
    Cu / Al2040
    ACSR2028
    Wire Rope1622
    Standard Guy Wire1615
    ReBar, Ground & Anchor Rods1313
    Soft Steel Bolts1613
    Specific FeaturesDouble Stage Hydraulic designDouble Stage Hydraulic design
    Storage SuppliedCarry BagCarry Bag
    Weight (kg)2.86
