Lancier Cable Pusher Available for Hire

29 Jan, 2019

There are a number of challenges associated with the installation of underground cable.

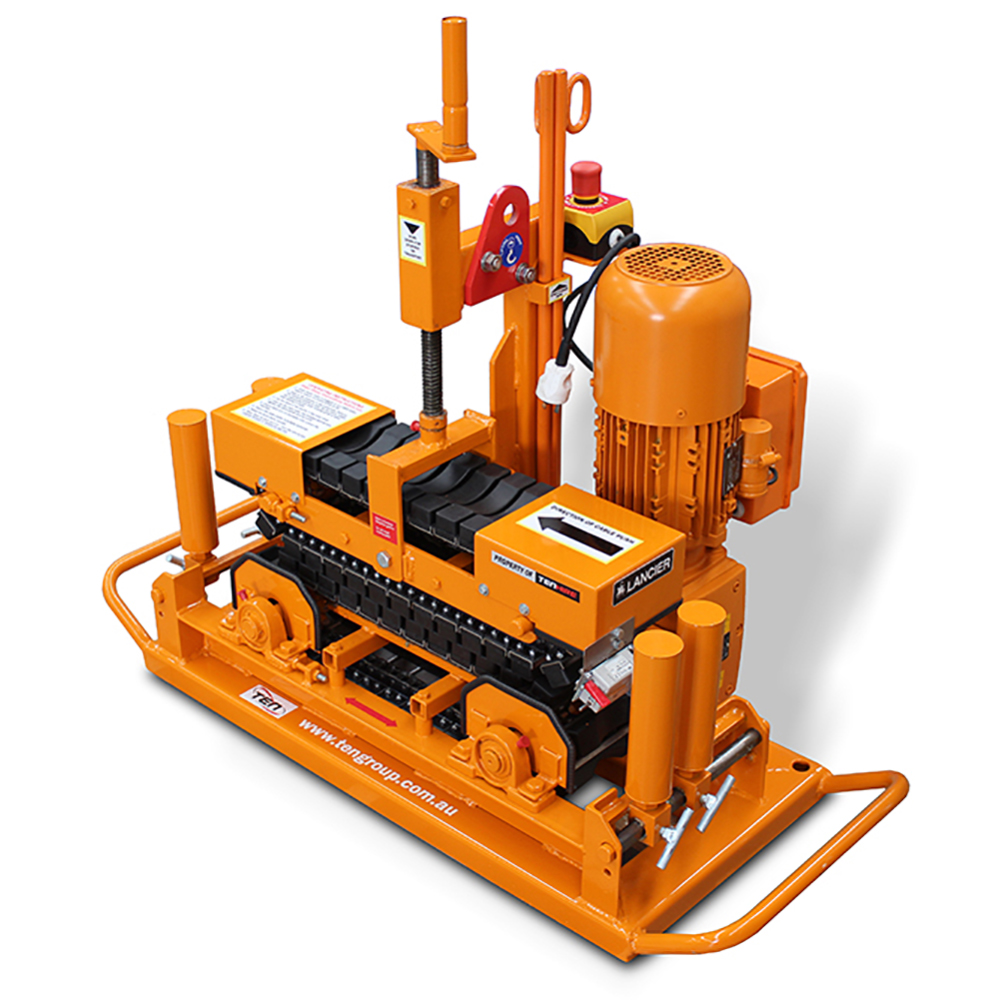

The Lancier EKR350 has been specifically designed for laying underground cables where the pulling-tension and surface pressure increase the difficulties of laying delicate cable.

The EKR350 is primarily used as a cable forward feeding roller in association with a cabling winch, to reduce the pulling tension on the cable, or as a cable-laying roller on its own.

Several EKRs may be required at intervals along the cable track to provide an effective reduction in the pulling tension on the cable. The number required will depend upon how sensitive the cable is to pulling tension and the complexity of the underground system in which the cable must be installed.

Benefits

  • Providing supplementary pulling and pushing force when laying heavy cables.
  • Optimum and gentle transmission of power to the cable
  • Suitable for narrow trenches.
  • Length measuring device.
  • Electric switch for reversing direction of push.
  • Integrated Disc brake.
  • Emergency Shut-off

Specifications

EKR350 Description
Drive Electric
Drive Power 1.1kW
Pushing Force 3.5kN
Pushing Speed 0-10m/min
Cable Diameter 30-150mm
Dimensions 1100(L)x450(W)x930mm(H)
Weight 115kg

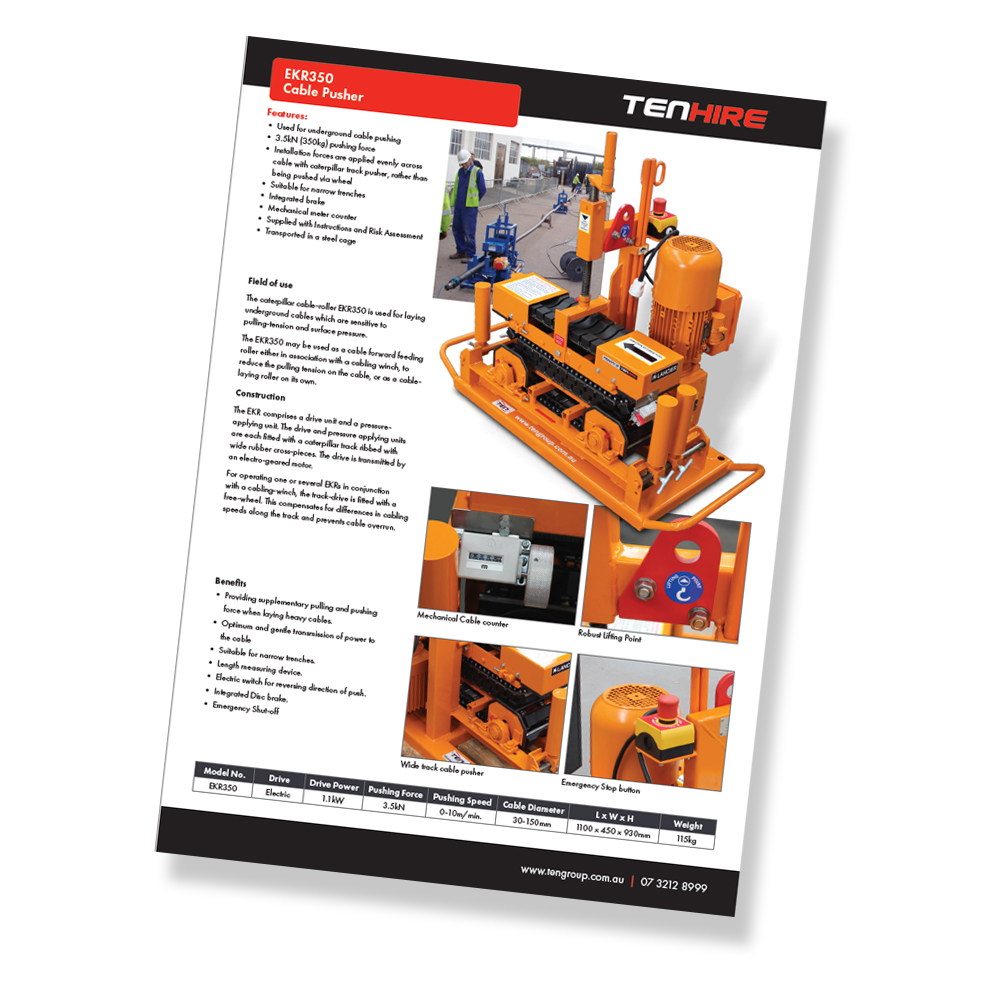

EKR350 Cable Pusher Data Sheet
