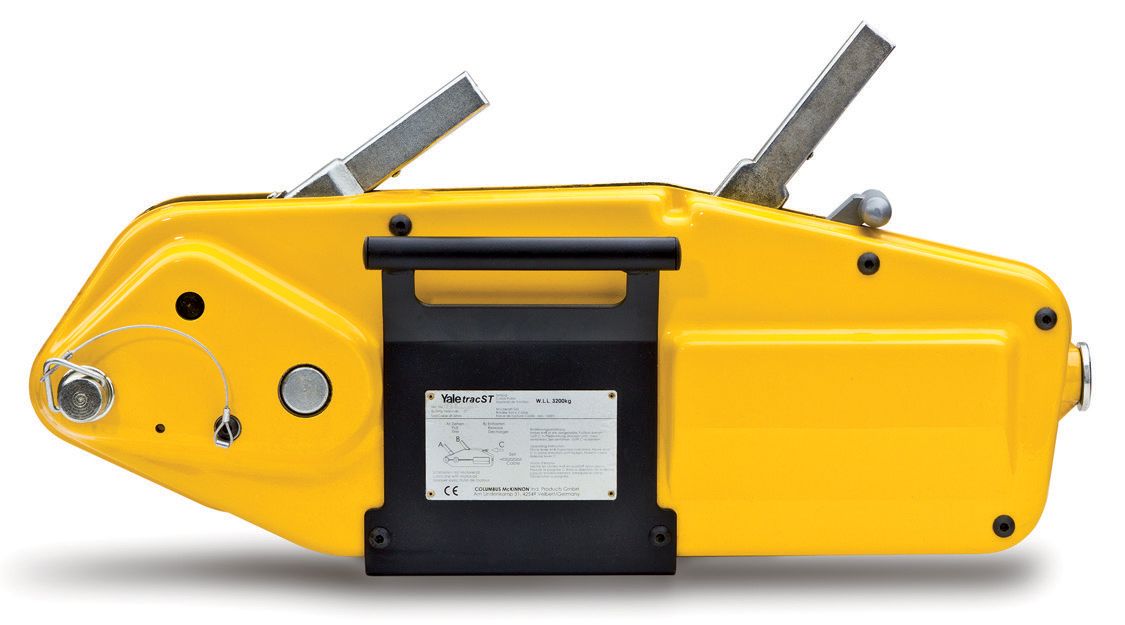

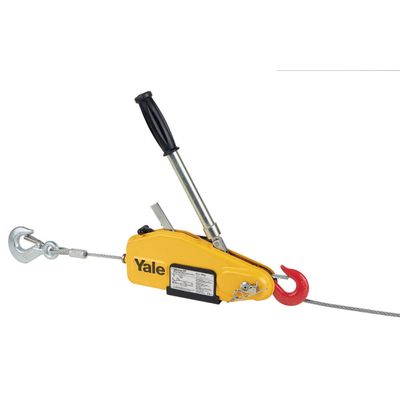

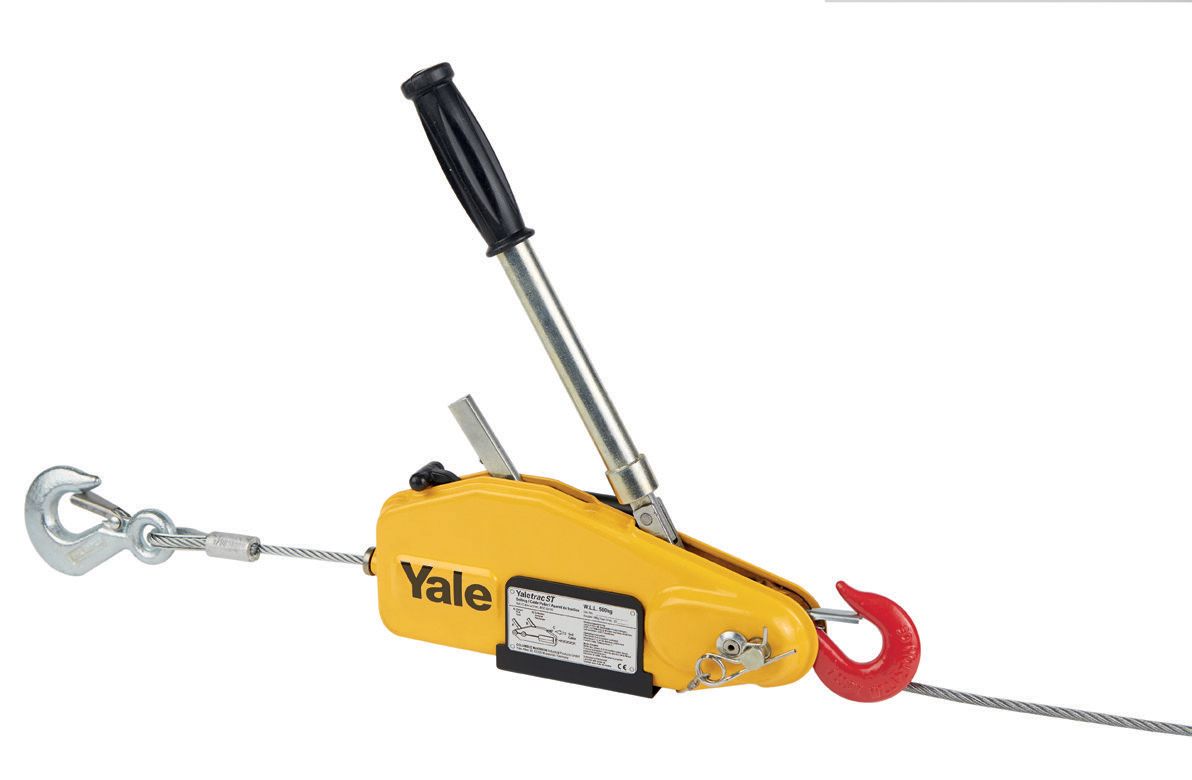

Yaletrac ST cable puller

The portable Yaletrac ST cable puller is a versatile tool for pulling, lifting, lowering, tensioning and securing loads over long distances. It has been specially designed for applications in industry, building construction, civil engineering, power line construction, ship building and oil refineries etc. The Yaletrac ST cable puller is almost service free – easy to use and safe.

Cable pullers model Yaletrac ST feature a housing of dimensionally stable deep-drawn steel plates ensuring a compact and robust design. The hand operating forces have been noticeably optimised for the user by the application of axial ball bearings.

Features

• Stable upright positioning of the unit due to the combination of handle and foot
• Space-saving telescopic hand lever that can be safely attached to the unit by means of a hookand- pile fastener
• Short handle lever for Y 05 ST not telescopic
• Overload protection is provided by a shearing pin - spare shear pins are conveniently located in the carrying handle
• A broken pin can be replaced without removing the load
• Yaletrac ST uses a special flexible rope - it has six strands with a steel core and is identified by an orange strand
• Rope is tapered at one end for easy threading and is fitted with an eye sling hook with safety latch on the other end
• The parallel arrangement of the clamping system protects the rope by distributing the clamping forces evenly - long rope advance per each lever stroke increases the working speed
