Cable Stripper–Battery Tool Operated–1/4” hex drill adapter. Suits Aust. LV ABC & UG Cables-Ripley
Cable Stripper–Battery Tool Operated–1/4” hex drill adapter. Suits Aust. LV ABC & UG Cables-Ripley


Code: WS68-1-4
Brand: Ripley Tools
Product Details
Stripper, cable end, 1/4" hex adaptor, strip 15.9mm-63.5mmL, bushings required, Ripley

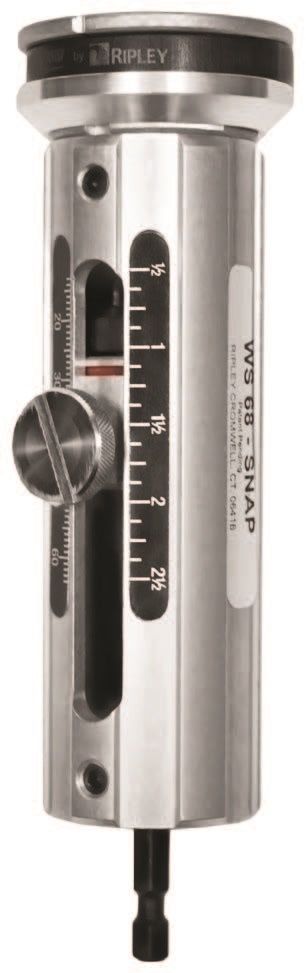

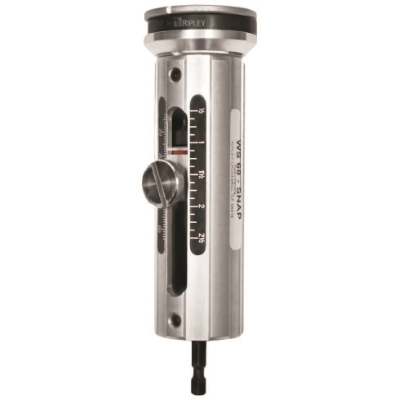

Power Driven Cable End Stripper

Part No: WS68-1-4

The Utility Tool LV Cable Strippers are a fast, safe and economical stripping tool with interchangeable square cut bushings for a wide range of common Australian LV cables. Easily setup with your chosen bushing, the tool can be quickly attached to your cordless driver for effortless cable stripping.

Benefits

  • Increases safety by eliminating use of traditional knives, reducing the risk of cuts or lacerations.
  • Easily attaches to power drill for safe and efficient cable stripping.
  • Adjustable strip lengths from 15.9mm to 63.6mm.
  • Increases splice and union reliability with accurate strips every time.
  • Use with bushings specifically designed to suit 16-150mm2 Australian conductor.
  • For Low Voltage Applications
  • Evenly Strips Insulation.

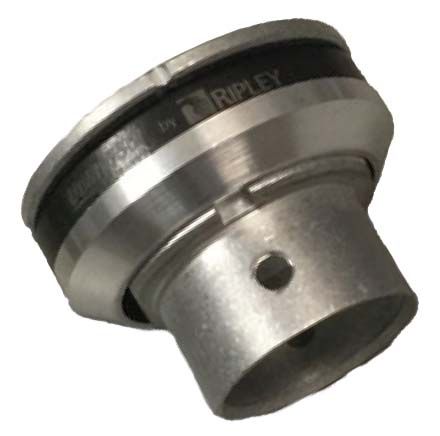

  • The optional WS 68 Snap’s patent-pending Quick Connect Adapter makes changing bushings faster and more efficient - even with gloves on!

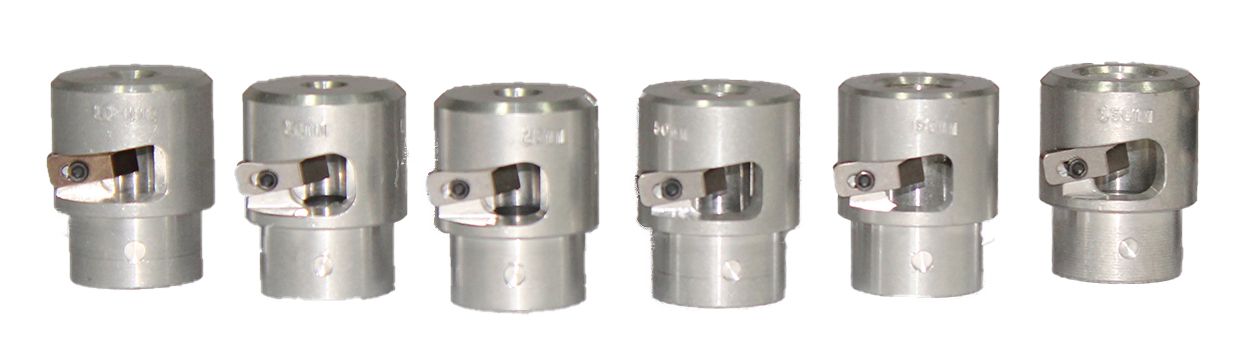

  • TEN Square Cut Cable Stripper Bushings

    Large range of bushings suit common Australian cable sizes

    Quick and simple bushing interchange for fast cable stripping

    Bushings Suit the following Stripping Tools

    • Milwaukee - M18™ Battery Cable Stripper - Part No. M18BCS-0C
    • Ripley - Power Driven Stripper - Part No. WS68-3-8
    • Ripley - Power Driven Stripper - Part No. WS68-1-4
    • Ripley - 4 x 4 Stripper - Part No. 36001H
    • Ripley - 2 x 2 Stripper - Part No. 36101H

    Range of available bushings

    TEN Part No.Square Cut Bushings to suit LV ABC
    RB-10010mm² Al XLPE OH
    RB-10116mm² Al XLPE OH
    RB-20025mm² Al XLPE OH
    RB-20135mm² Al XLPE OH
    RB-30050mm² Al XLPE OH
    RB-30170mm² Al XLPE OH
    RB-40095mm² Al XLPE OH
    RB-401120mm² Al XLPE OH
    RB-500150mm² Al XLPE OH
    TEN Part No.Square Cut Bushings to suit Underground
    RB-10216mm² Cu XLPE/PVC LV UG (Olex)
    RB-20235mm² Cu XLPE/PVC LV UG (Olex)
    RB-30250mm² Cu XLPE/PVC LV UG (Olex)
    TEN Part No.Square Cut Bushings to suit Building Cable
    RB-10316mm² Cu PVC SDI V90 - Red (Olex)
    RB-10316mm² Cu PVC SDI V90 - Black (Olex)
    RB-30370mm² 19/2.14 Cu Green/Yellow Earth building wire
    RB-600240mm² Cu Double Insulated
    TEN Part No.Square Cut Bushings to suit PVC
    RB-30450mm² Cu PVC 0.6/1kV - Black on White (Olex)
    RB-30570mm² Cu PVC 0.6/1kV - Black on Clear (Olex)
    RB-30570mm² Cu PVC 0.6/1kV - Black-White on Clear (Olex)
    TEN Part No.Square Cut Bushings to suit Misc Cable
    RB-30670mm² Cu XLPE / PVC, Black on White (Olex)
    RB-402120mm² Cu XLPE / PVC, Black on Clear (Olex)
    RB-501150mm² Cu, Black-White on Clear (Olex)
    RB-502185mm² Cu, Black-White on Clear (Olex)
    RB-502185mm² Cu, Black (Prysmian)
    RB-501150mm² Al, Black (Olex)
    RB-601240mm² Al XLPE / PVC, Black on Colour (Olex)
    RB-700157mm² HD Al, Railway, 12 x 3.27 0.6/1KV V-90 L Electric Cable (Prysmian)
    TEN Part No.Ripley Stripper Bodies & Accessories
    WS68-3-8RIPLEY Power/Drill Driven Stripper
    36001HRIPLEY 4 x 4 Stripper
    36101HRIPLEY 2 x 2 Stripper
    40110RIPLEY Bushing quick connect for above strippers
