Crossarm, Temporary, for changing live LV & HV strains & terminations, 2T SWL-Wagner
Crossarm, Temporary, for
changing live LV & HV strains
& terminations, 2T SWL-Wagner
Code: TENK007
Brand: TEN
Product Details
Kit, crossarm, temporary, strain,non-slip tape, sticker, bracket,eye bolts,bag, Wagners
Brand: TEN
Product Details
Kit, crossarm, temporary, strain,non-slip tape, sticker, bracket,eye bolts,bag, Wagners
Kit Components
This item contains the following components:
- 1 x Crossarm Temporary Wagner 2.5m, 4 Position, Composite Fibreglass, c/w Non Slip Tape
- 1 x Bracket, mounting assembly, for temp X-Arm AEC047-00005, ratchet strap and buckle

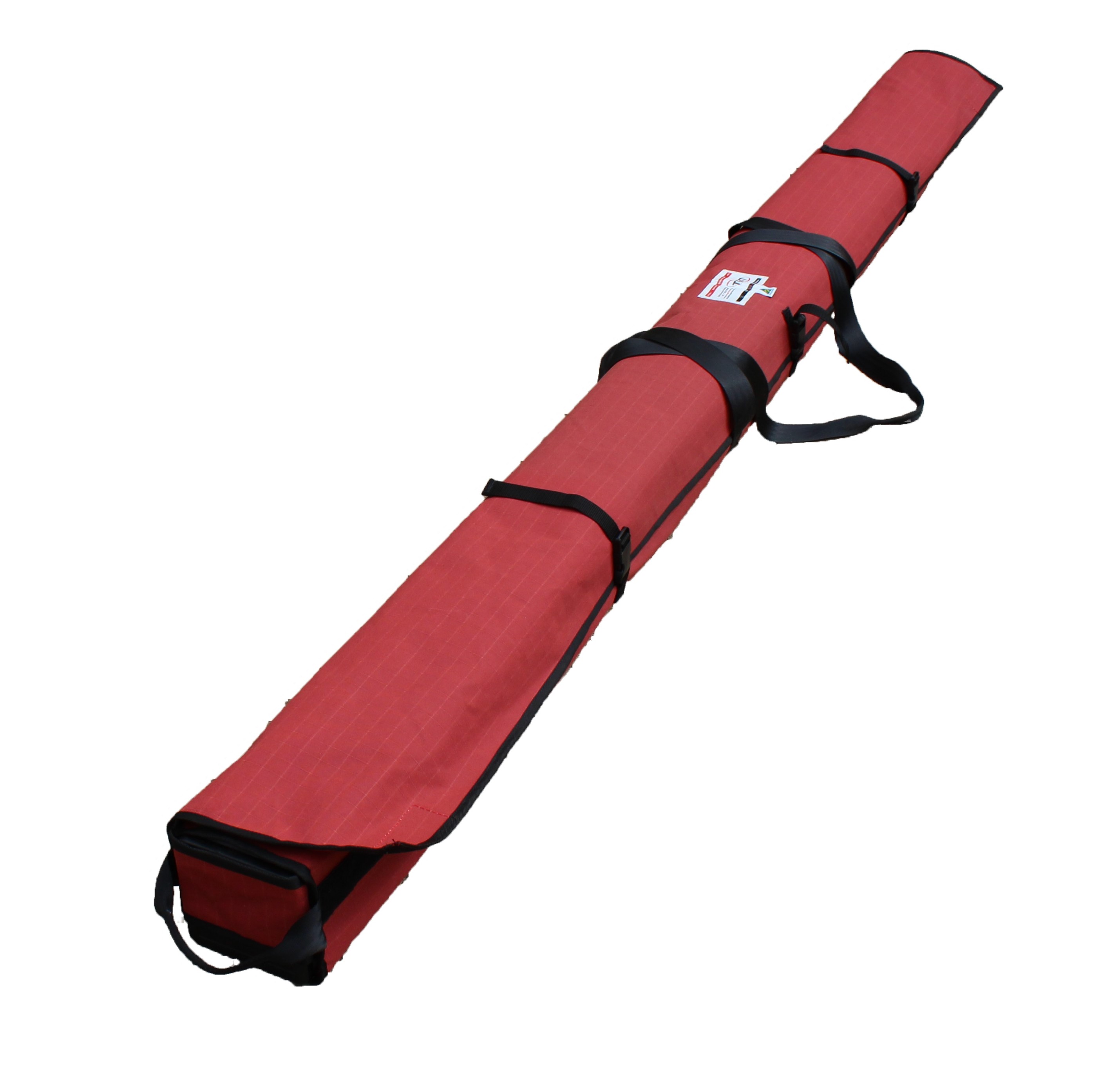

- 1 x Bag, x-arm, canvas, red, 2640 x 170 x 100mm, fold flap, side release buckles, handles, MFG

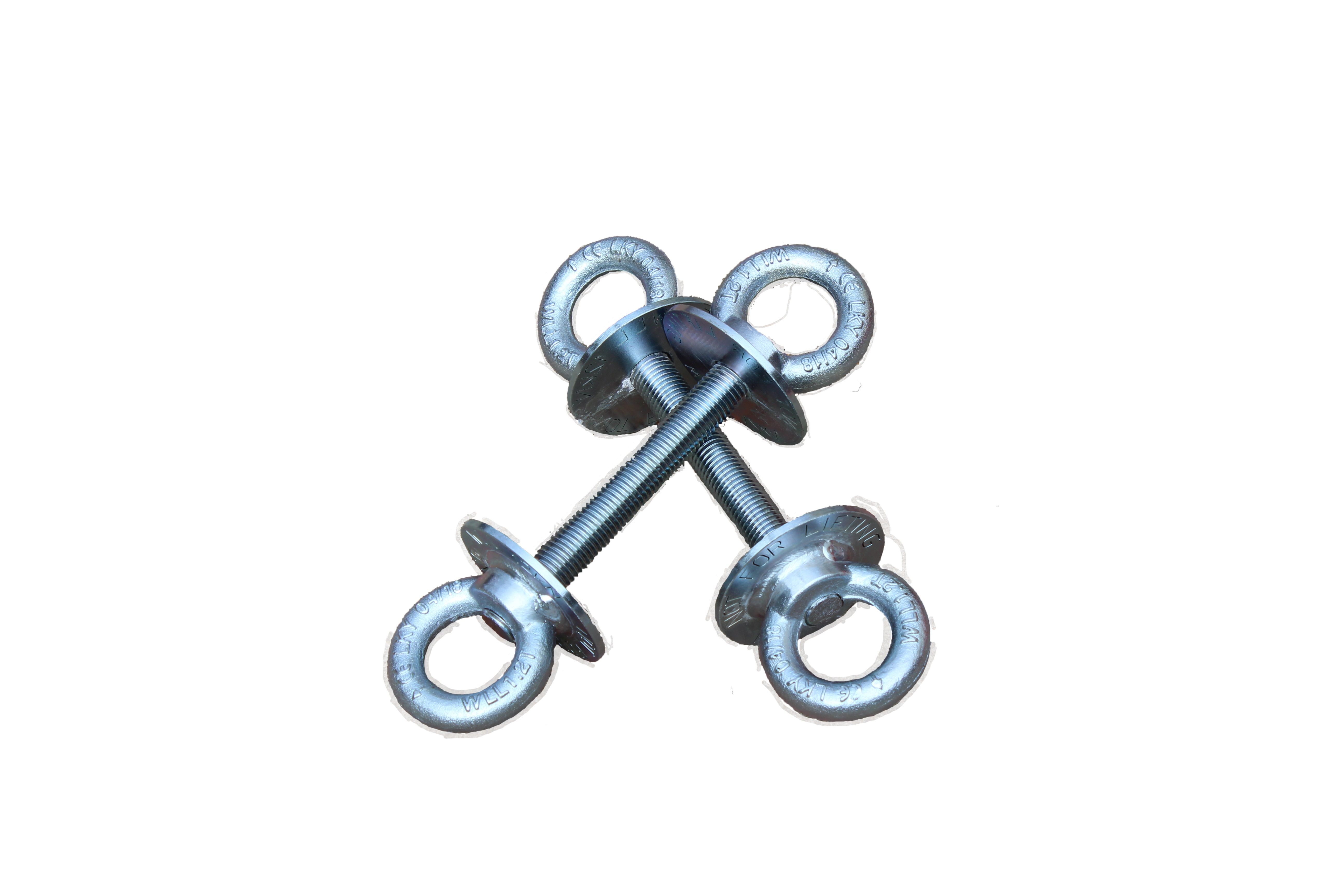

- 4 x Bolt, Eye, 20mm w/ 2 x 20mm Eye Nuts, Electro Plated
- 1 x Bag, hoist, canvas, red, 720mm, hanger handle, carry handle, zip 3 sides, MFG

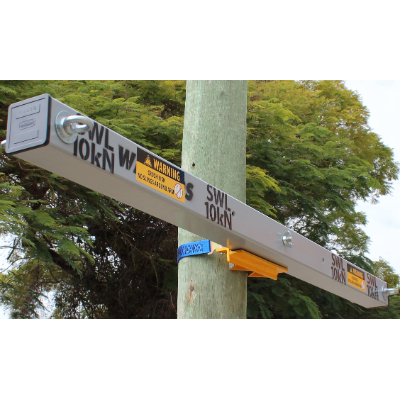

Temporary Composite Fibreglass Cross-Arm - SWL 2T
Ideal for changing Live HV and LV Strain and Termination Crossarms
Features
• Advantages over competition temporary crossarms
“CAN” be used for Terminations
“CAN” be used in HV situations
• Chemically Inert:
- Cross-Arm will not RUST, ROT or CORRODE
• 2Tonne SWL
• Lightweight:
- Composite Cross-Arm - Approximately 1/3 the weight of timber
- Bracket - Manufactured with high strength Aluminium
• Cross-arm provides additional protective layer of Insulation (BIL rating 769V/m)
• Take 3 time longer to ignite and does not sustain a flame
Specifications
Composite Strain Arm
• 2580mm OAL
• 125mm x 125mm (Square)
• 22mm OD attachment holes
• Lightweight
• Rating – 10kN per attachment point
• Not slip tape top and bottom
“To prevent slippage on EWP baskets”
• Use as termination or strain crossarm
KIT INCLUDES
| Qty | Part No. | Description |
|---|---|---|
| 1 | AEC047-00005 | Cross-Arm 2.5m Wagner Composite |
| 1 | FSXARMB1 | Aluminium Mounting Brkt & Ratchet Strap |
| 4 | CCA20 | 20mm x Rated Eye Bolt and Eye Nut |
| 1 | TENM710 | Carry Bag (Cross-Arm) - Canvas RED |
| 1 | TENM426 | Carry Bag (Accessories) - Canvas RED |
