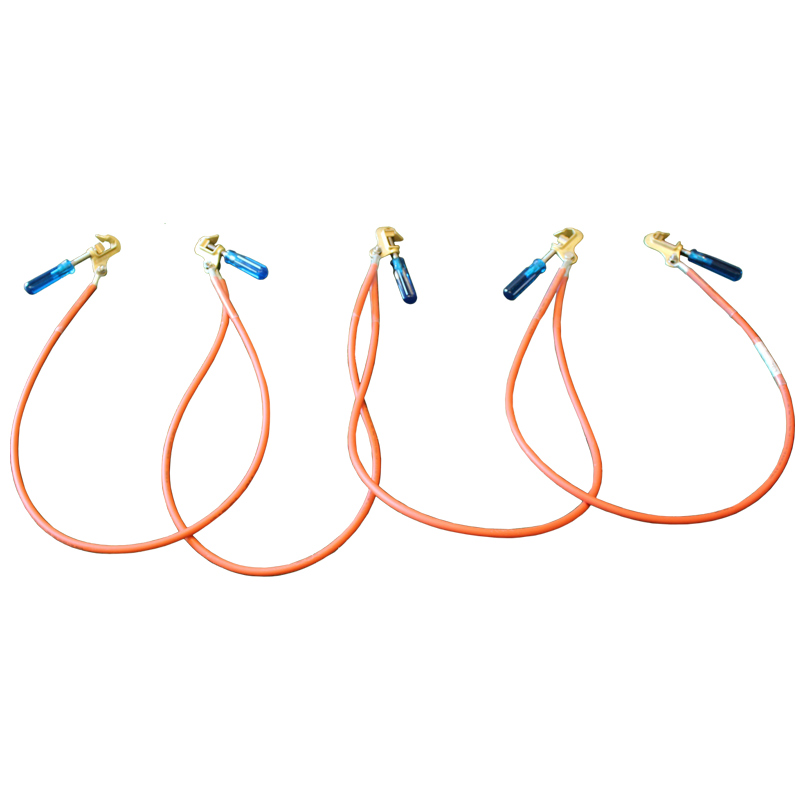

Bonder, LV, 1kV, 5 clamp, 5-19 mm, 1.5m leads, 35mm2 Cu, 172A, screwdriver handle, ASSY
Common LV Jumper assemblies
- Double insulated lv (0.6/1kV) cable
- Highly flexible class 6
- Lugged ends
- 4 or 5 15-19mm screwdriver handle clamps
- 2m length standard
- Custom lengths on request
- ID labels with part number, work order number, date of manufacture and serial number
| Part No. | Cable type | Description |
|---|---|---|
| TENA701 | 35mm² Orange double insulated | Bonder, LV, 1kV, 172A, 1.5m leads, 5 x 5mm-19mm screwdriver handle clamps |
| TENA702 | 70mm² Orange double insulated | Bonder, LV, 1kV, 270A, 1.5m leads, 4 x 5mm-19mm screwdriver handle clamps |
| TENA703 | 70mm² Orange double insulated | Bonder, LV, 1kV, 270A, 1.5m leads, 5 x 5mm-19mm screwdriver handle clamps |
