Bushing, suit PSC-1 tool, for OLIVE ACSR conductor, 54/7/3.50, 31.5mm OD

Bushing, suit PSC-1 tool, for OLIVE ACSR conductor, 54/7/3.50, 31.5mm OD


Code: TE5809
Brand: TEN
Product Details

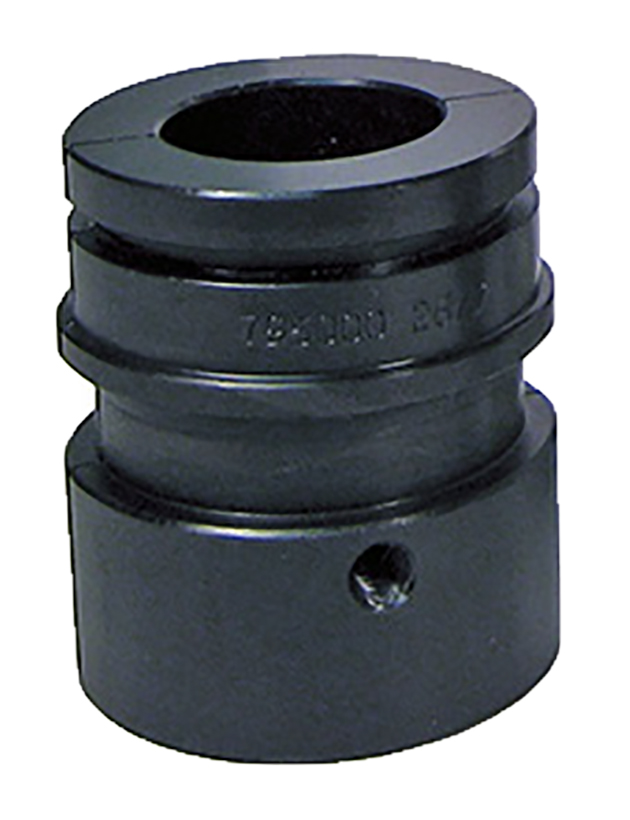

Bushing, suit PSC-1 tool, for OLIVE ACSR conductor, 54/7/3.50, 31.5mm OD

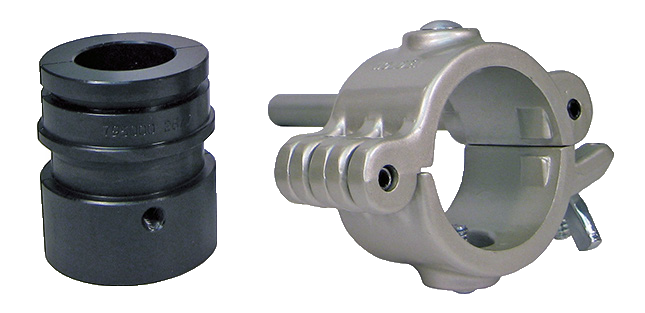

Bushing for Aluminium Trimmer - Pre-Crimping ACSR

Bushing to suit PSC-1 Trimmer

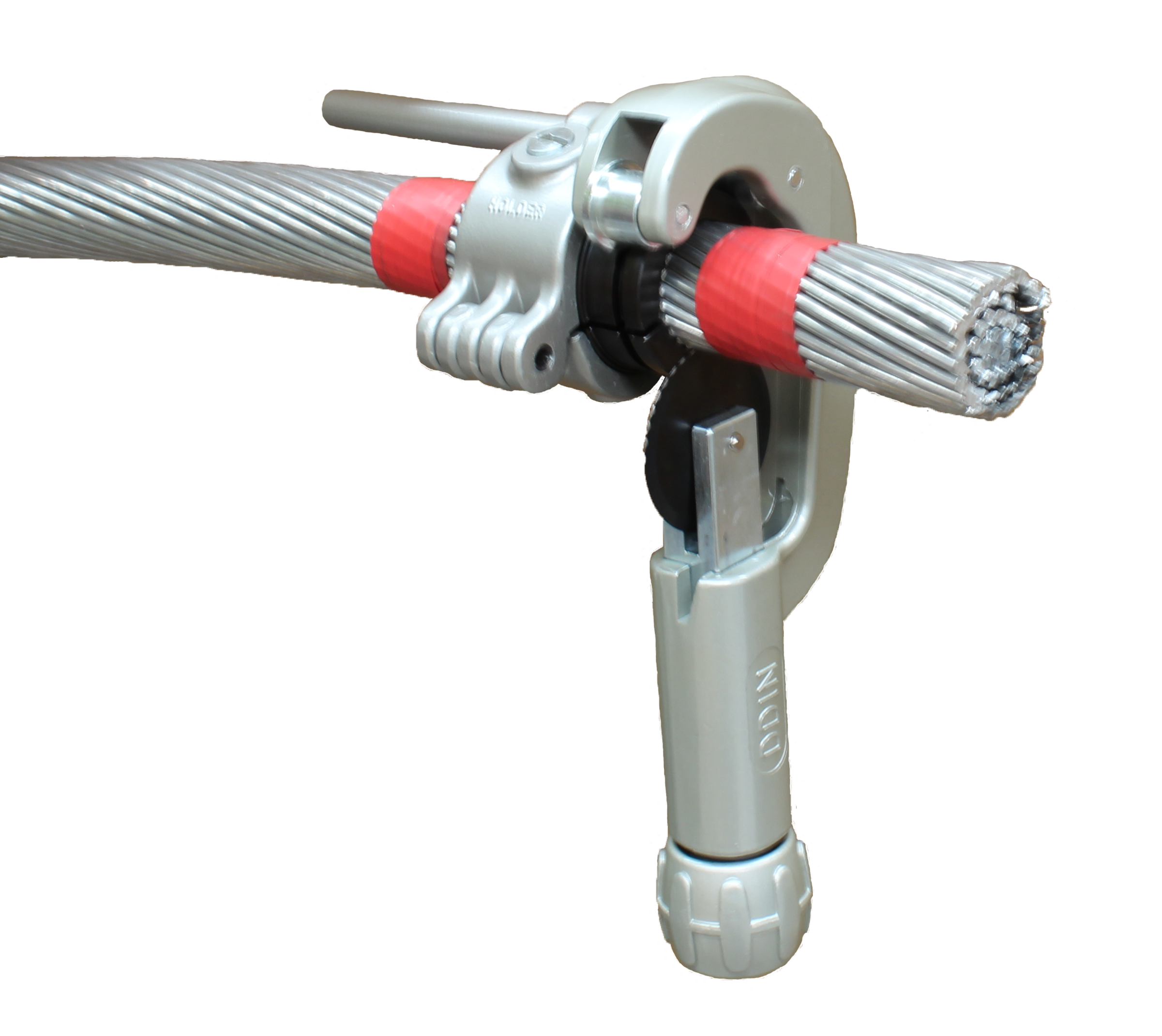

Attaches to trimming to guide the cutter to trim and remove the outside layers of Aluminium, exposing the ACSR for crimping.

Available Bushing Sizes to suit Australian ACSR conductor sizes

Part No. ACSR ConductorConductor ODmm
TE7016CHERRY14.3
TE7021GRAPE17.5
TE6375LEMON21.0
TE5778LYCHEE22.8
TE5782LIME24.5
TE5797MANGO27.0
TE5803ORANGE29.5
TE5809OLIVE31.5
