Bushing, suit PSC-1 tool, Orange for ACSR conductor , 54/7/3.25, 29.30mm OD

Bushing, suit PSC-1 tool, Orange for ACSR conductor , 54/7/3.25, 29.30mm OD


Code: TE5803
Brand: TEN
Product Details

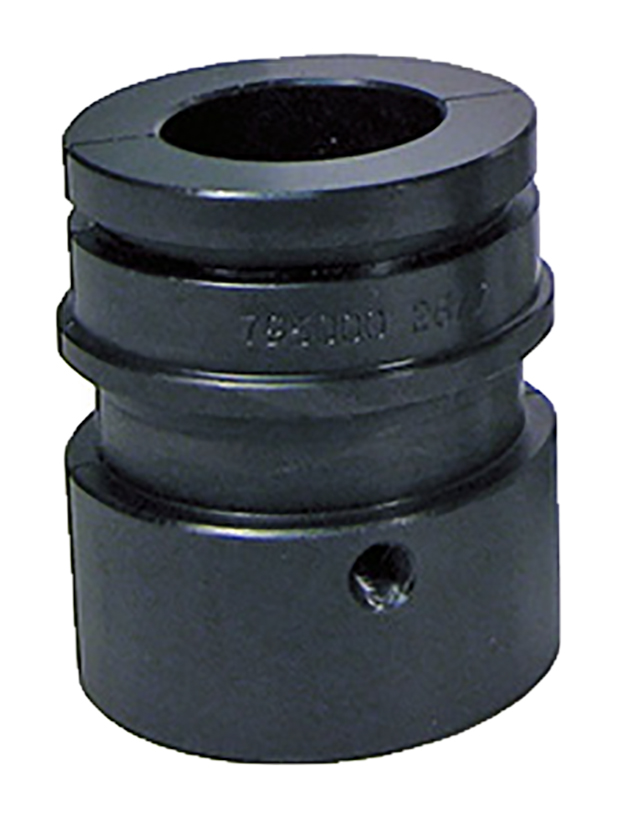

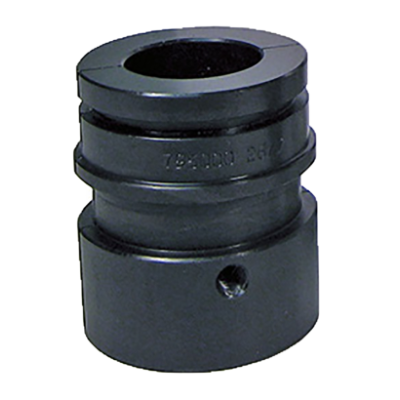

Bushing, suit PSC-1 tool, Orange for ACSR conductor , 54/7/3.25, 29.30mm OD


Bushing for Aluminium Trimmer - Pre-Crimping ACSR

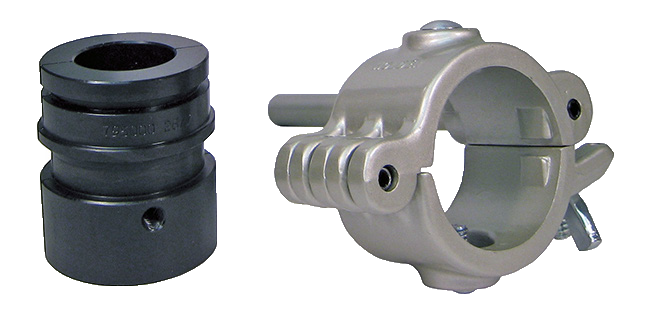

Bushing to suit PSC-1 Trimmer

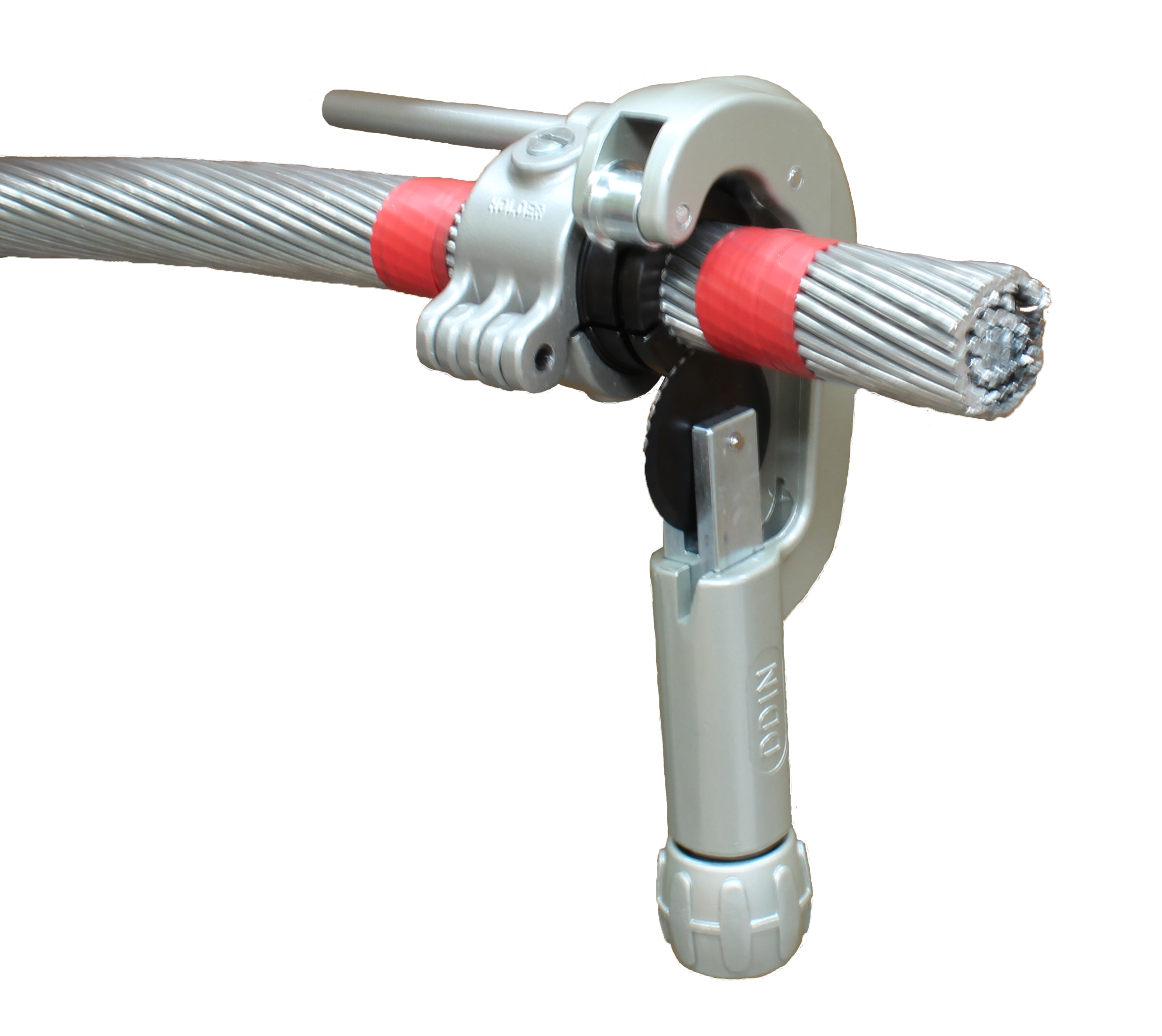

Attaches to trimming to guide the cutter to trim and remove the outside layers of Aluminium, exposing the ACSR for crimping.

Available Bushing Sizes to suit Australian ACSR conductor sizes

Part No. ACSR ConductorConductor ODmm
TE7016CHERRY14.3
TE7021GRAPE17.5
TE6375LEMON21.0
TE5778LYCHEE22.8
TE5782LIME24.5
TE5797MANGO27.0
TE5803ORANGE29.5
TE5809OLIVE31.5
