Bushing, suit PSC-1 tool, for Mango ACSR conductor, 54/7/3.00, 27.00mmOD
Bushing, suit PSC-1 tool, for Mango ACSR conductor, 54/7/3.00, 27.00mmOD


Code: TE5797
Brand: TEN
Product Details
Bushing, suit PSC-1 tool, for Mango ACSR conductor, 54/7/3.00, 27.00mmOD


Bushing for Aluminium Trimmer - Pre-Crimping ACSR

Bushing to suit PSC-1 Trimmer

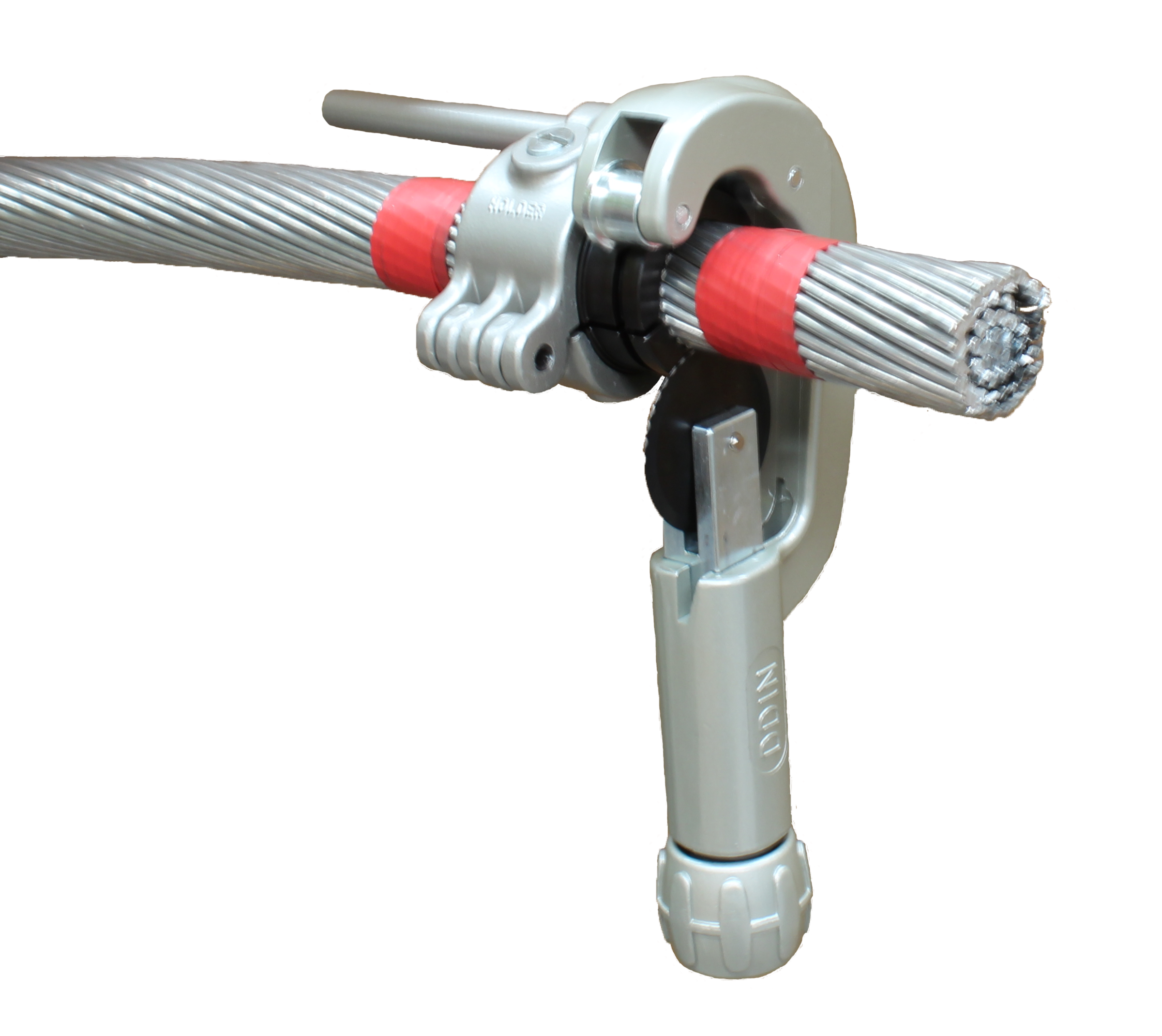

Attaches to trimming to guide the cutter to trim and remove the outside layers of Aluminium, exposing the ACSR for crimping.

Available Bushing Sizes to suit Australian ACSR conductor sizes

Part No. ACSR ConductorConductor ODmm
TE7016CHERRY14.3
TE7021GRAPE17.5
TE6375LEMON21.0
TE5778LYCHEE22.8
TE5782LIME24.5
TE5797MANGO27.0
TE5803ORANGE29.5
TE5809OLIVE31.5
