Bushing,suit PSC-1 tool, For Lychee ACSR Conductor, 30/7/3.25, 22.80mm OD

Bushing,suit PSC-1 tool, For Lychee ACSR Conductor, 30/7/3.25, 22.80mm OD


Code: TE5778
Brand: TEN
Product Details

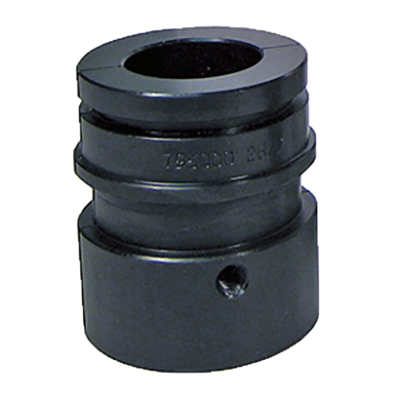

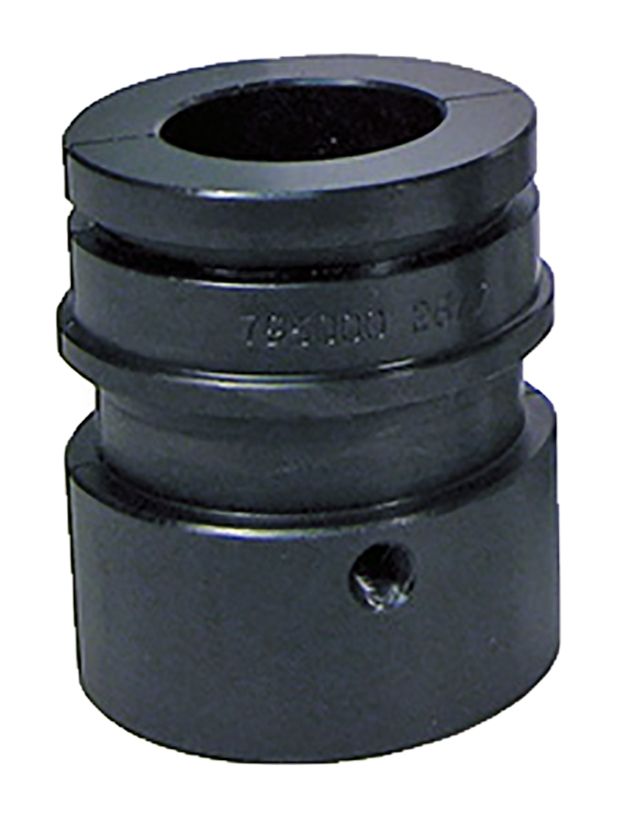

Bushing,suit PSC-1 tool, For Lychee ACSR Conductor, 30/7/3.25, 22.80mm OD


Bushing for Aluminium Trimmer - Pre-Crimping ACSR

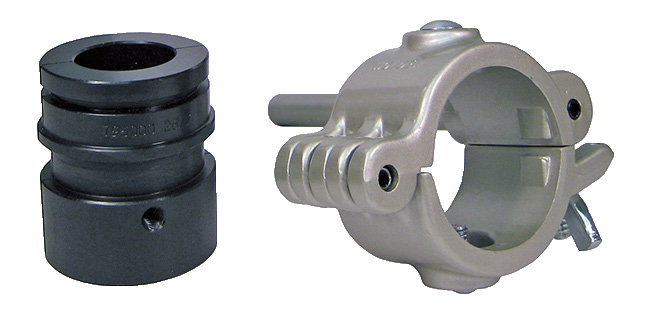

Bushing to suit PSC-1 Trimmer

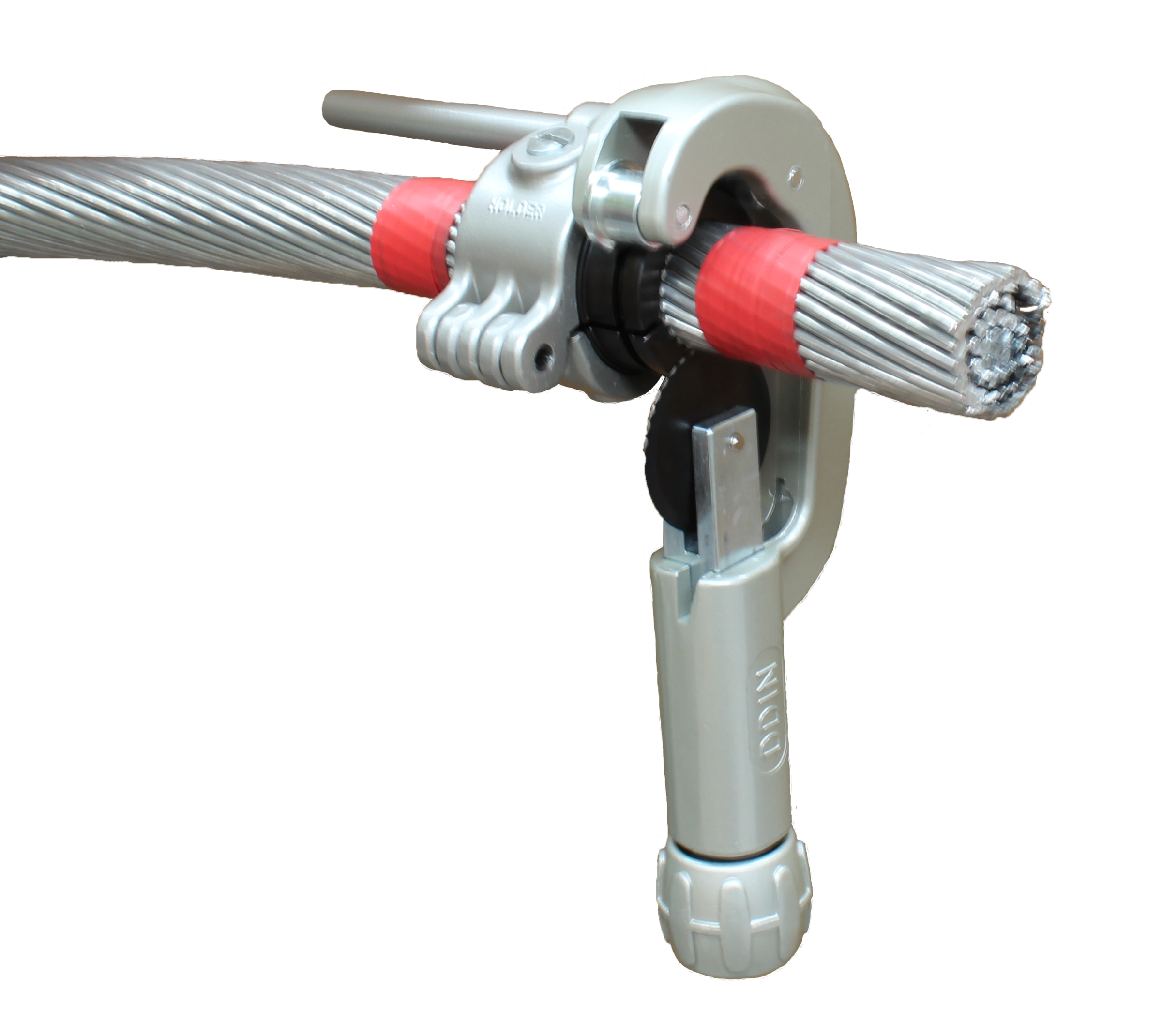

Attaches to trimming to guide the cutter to trim and remove the outside layers of Aluminium, exposing the ACSR for crimping.

Available Bushing Sizes to suit Australian ACSR conductor sizes

Part No. ACSR ConductorConductor ODmm
TE7016CHERRY14.3
TE7021GRAPE17.5
TE6375LEMON21.0
TE5778LYCHEE22.8
TE5782LIME24.5
TE5797MANGO27.0
TE5803ORANGE29.5
TE5809OLIVE31.5
