Bushing, suit PSC-1 tool, for ACSR conductor, 26/7 19.88mm OD

Ten Group // HAND TOOLS // Cable Preparation and Stripping // Cable Strippers // Bushing, suit PSC-1 tool, for ACSR conductor, 26/7 19.88mm OD
Bushing, suit PSC-1 tool, for ACSR conductor, 26/7 19.88mm OD


Code: TE5773
Brand: TEN
Product Details
Bushing, suit PSC-1 tool, for ACSR conductor, 26/7 19.88mm OD

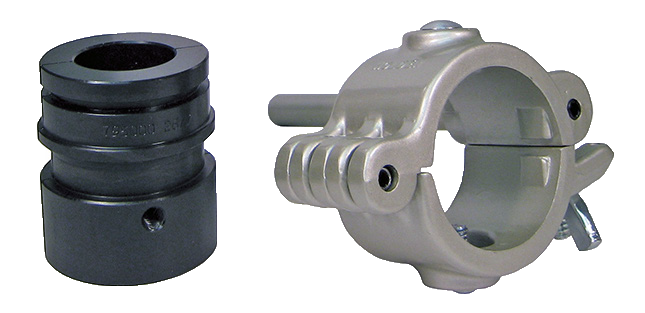

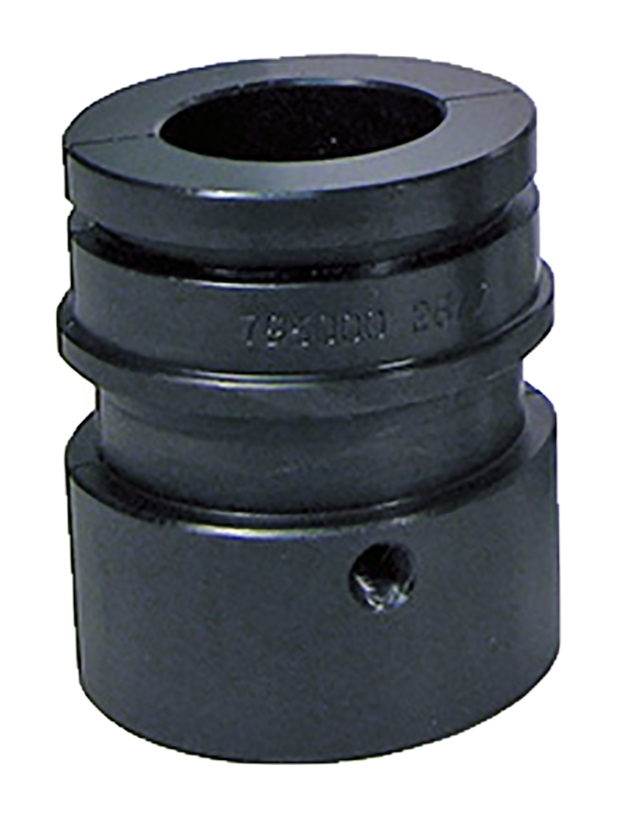

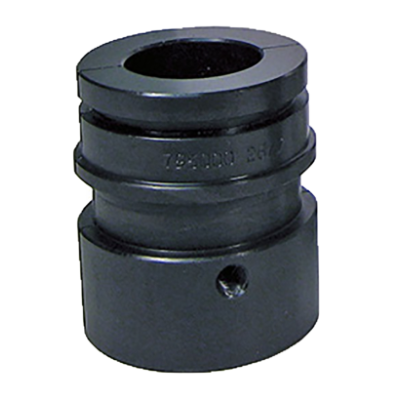

Bushing for Aluminium Trimmer - Pre-Crimping ACSR

Bushing to suit PSC-1 Trimmer

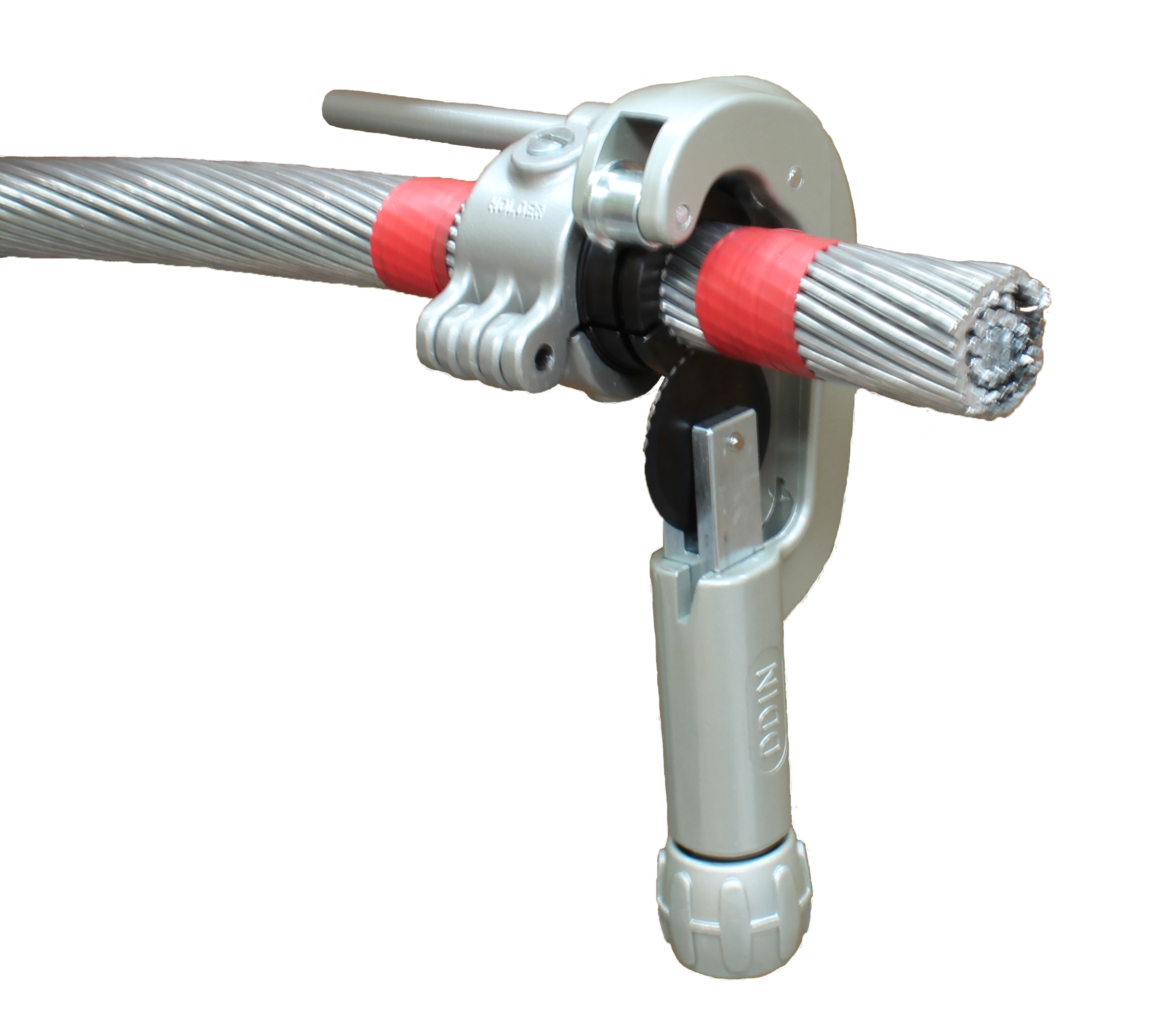

Attaches to trimming to guide the cutter to trim and remove the outside layers of Aluminium, exposing the ACSR for crimping.

Available Bushing Sizes to suit Australian ACSR conductor sizes

Part No. ACSR ConductorConductor ODmm
TE7016CHERRY14.3
TE7021GRAPE17.5
TE6375LEMON21.0
TE5778LYCHEE22.8
TE5782LIME24.5
TE5797MANGO27.0
TE5803ORANGE29.5
TE5809OLIVE31.5
