Die, series 50, for turned pin receptacle, pin connector, 0.1 - 4mm2, suits EK50MLAU, Klauke

Ten Group // HYDRAULIC TOOLS & EQUIPMENT // Dies // Crimping Dies Misc // Die, series 50, for turned pin receptacle, pin connector, 0.1 - 4mm2, suits EK50MLAU, Klauke
Die, series 50, for turned pin receptacle, pin connector, 0.1 - 4mm2, suits EK50MLAU, Klauke


Code: SB501
Brand: Klauke
Product Details

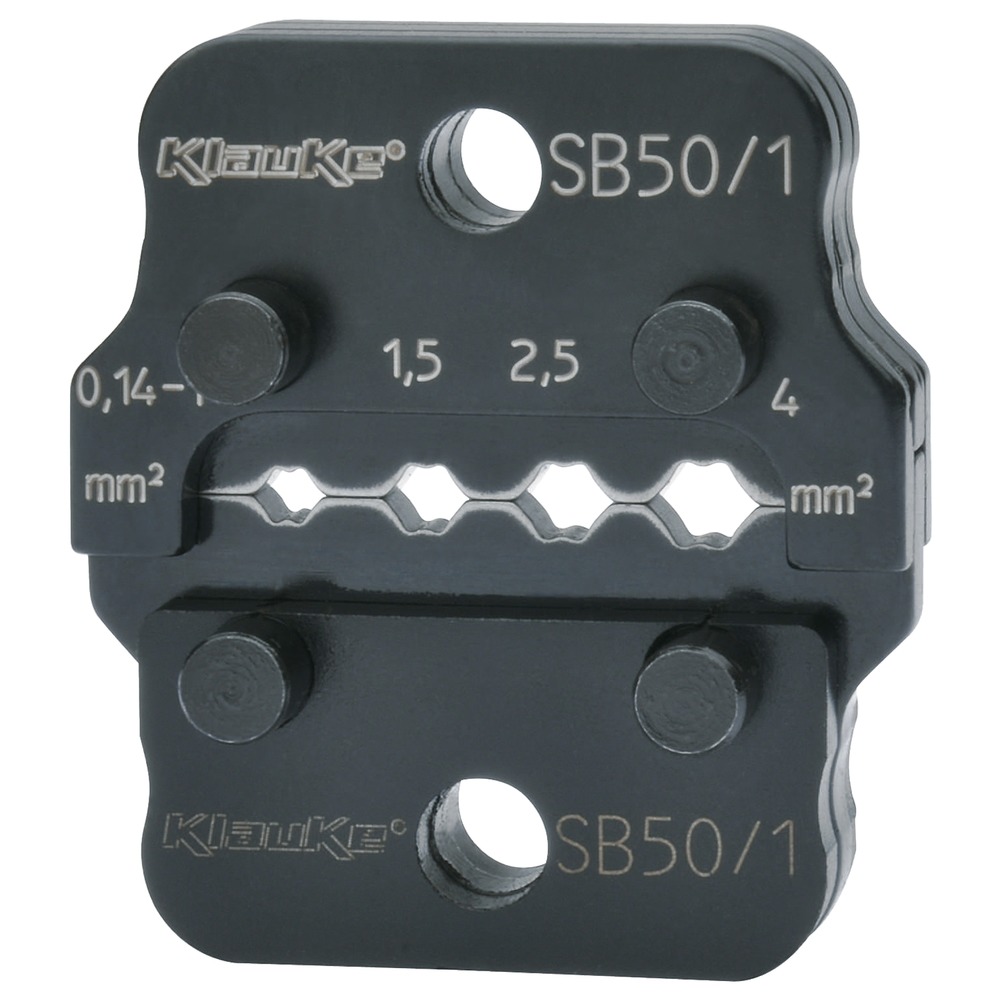

Die, series 50, for turned pin receptacle, pin connector, 0.1 - 4mm2, suits EK50MLAU, Klauke

Klauke Dies - 50 Series

Part No. SB501 - For turned pin receptacles, pin corrector from 0.1 to 4mm2

Available Die Sizes

Part No.UseSize
AE501Bootlace lugs0.14 - 6mm²
AE502Bootlace lugs10.0 - 25mm²
AE503Bootlace lugs35.0 - 50mm²
BNC501Stud & shielded sleevesCoax 58, 59, 62, 71
CR501Non insulated receptacles0.25 - 6mm²
IS502Insulated lugs, single crimp10.0 - 16mm²
IS503Insulated lugs, double crimp0.1 - 1mm²
IS5071*Crimping, pre-insulated terminals0.5 - 6mm²
M50154Cu tubular lugs - solid conductor1.5 - 4mm²
M50610Cu tubular lugs - solid conductor6.0 - 10mm²
Q501Cu soulderless & pin term0.5 - 10mm2
R501Cu tubular lugs0.72 - 2.5mm²
R502Cu tubular lugs4.0 - 10mm²
SB501Turned pin receptacle, pin connector0.1 - 4mm²

Companion Products

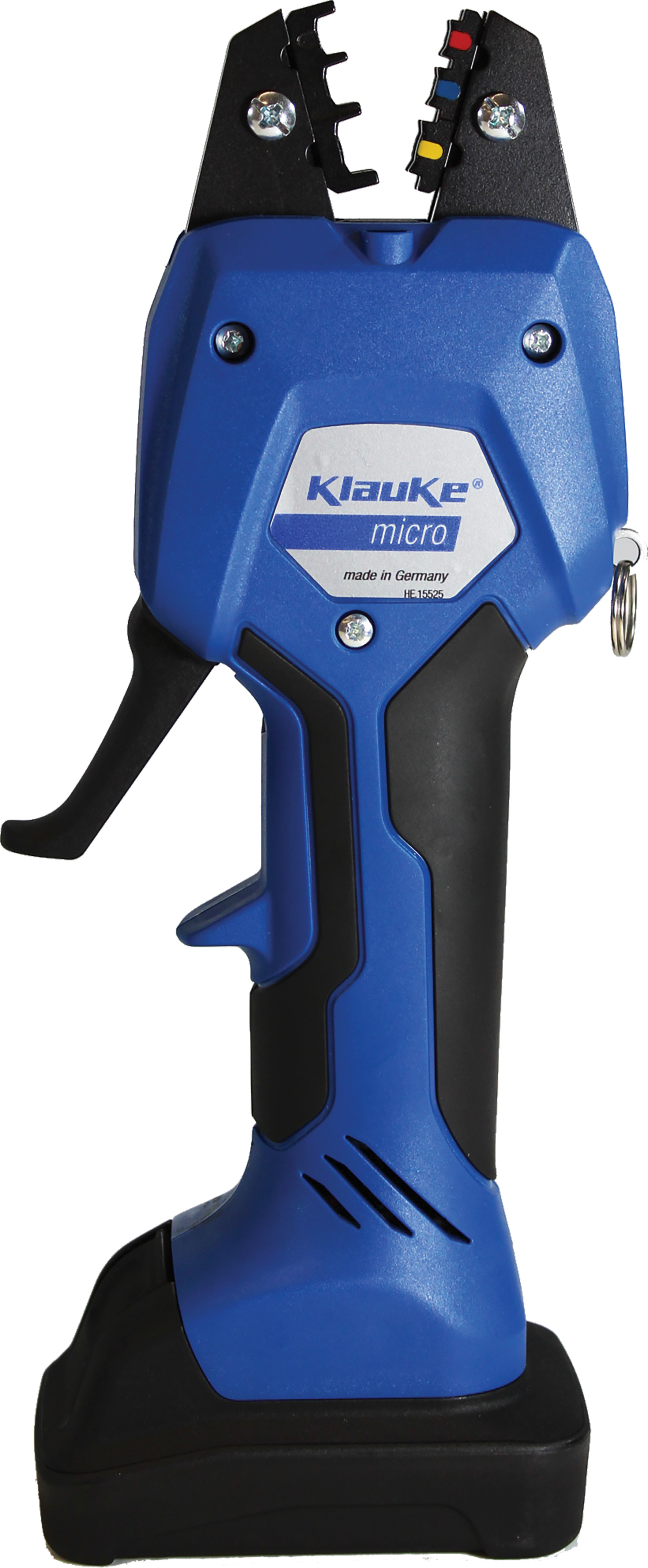

  • EK50MLAU
    Electro Mechanical Ratchet Crimper 1.5T
  • IS5071
    Die, series 50, pre-insulated terminals, 0.5-6mm2 suits EL50MLAU, Klauke
  • LGML1AU
    Charger, battery, 230V, 10.8V Li, Klauke
  • RAML
    Battery, spare, 10.8v Li, 2.5Ah, Klauke
