Wrench, drive end, 2.13m L, orange tip, suit 35mm sq shaft & 57mm hub anchors

Ten Group // LINE MATERIALS // Anchors and Driving Equipment // Screw Anchors & Driving Equipment // Wrench, drive end, 2.13m L, orange tip, suit 35mm sq shaft & 57mm hub anchors

Code: SAE09639
Brand: Unspecified
Product Details

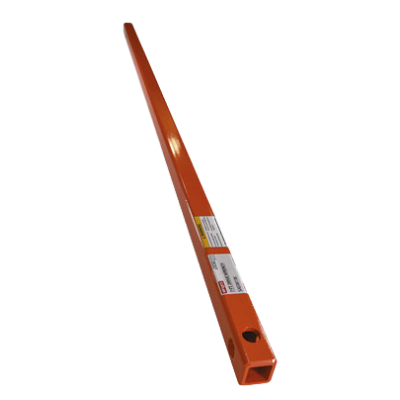

Wrench, drive end, 2.13m L, orange tip, suit 35mm sq shaft & 57mm hub anchors

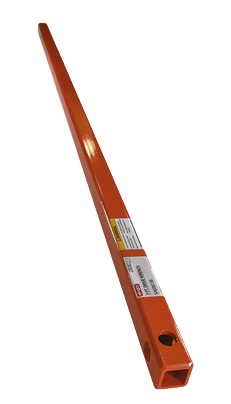

Drive End Wrench/Torque Tube

Engages the anchor hub & drives the anchor into the ground, either internally or externally depending on the anchor type

Partner with a company who supplies a complete range of Anchors, Anchor Rods, Accessories and Installation equipment

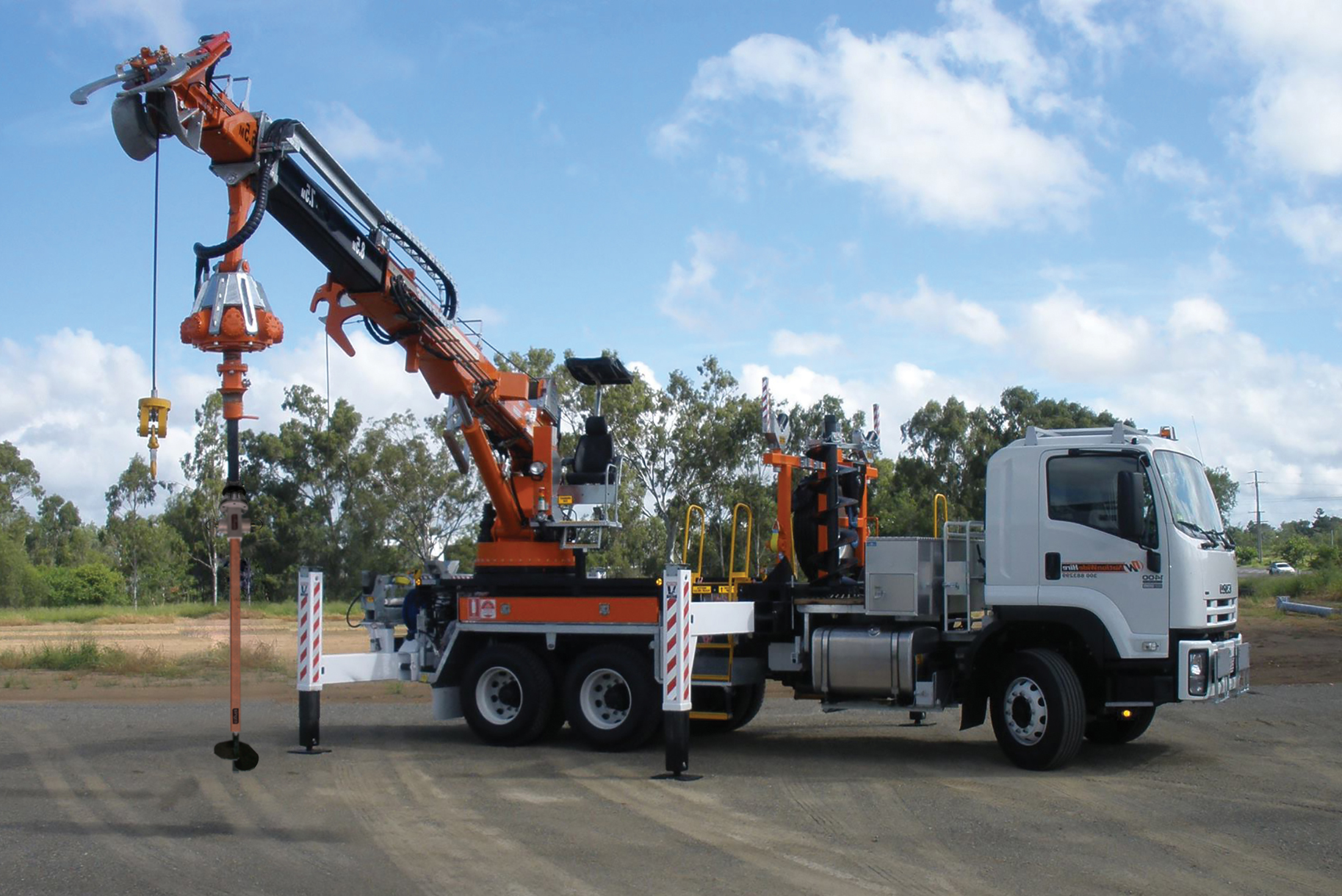

Designed to work with the Kelly bar of the lifter borer truck by transferring the torque from the drive motor to the screw anchor
Equipment includes common size kelly bar adapters, drive wrench locking dogs and drive wrenches
Drive wrench assembly is rated for 10,000 foot pounds of torque allowing for anchor installation in the toughest of environments.

Part No.	Description	Details
C303-0075	Kelly Bar Adapter	Suit 75mm x 75mm Drive - 6 hole configuration
SAE10425	Locking Dog Assembly (Formerly C303-0069HD)	For 133mm 5¼" Bolt Circle - 6 hole configuration
SAE09639	Drive End Wrench (Standard) (Formerly C102-1583)	2.1m OAL, Used for both 35mm (1⅜") Square Shaft & 57mm (2¼") Socket Power Hub Anchors
C303-1064	Drive End Wrench (Hybrid)	2.1m OAL, Used for both 38mm (1½") Square Shaft Swamp Anchors & 63mm (2½") Socket Power Hub Anchors
