Pump, HP, Hydraulic, SA, 2m black braided hose, Pendant 2 batteries & charger, Klauke

Pump, HP, Hydraulic, SA, 2m black braided hose, Pendant 2 batteries & charger, Klauke


Code: RHP700LK-K
Brand: Klauke
Product Details
Pump, HP, Hydraulic, SA, 2m black braided hose, Pendant 2 batteries & charger, Klauke



    Kit Components

    This item contains the following components:

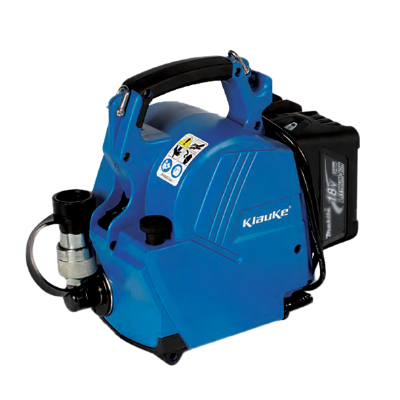

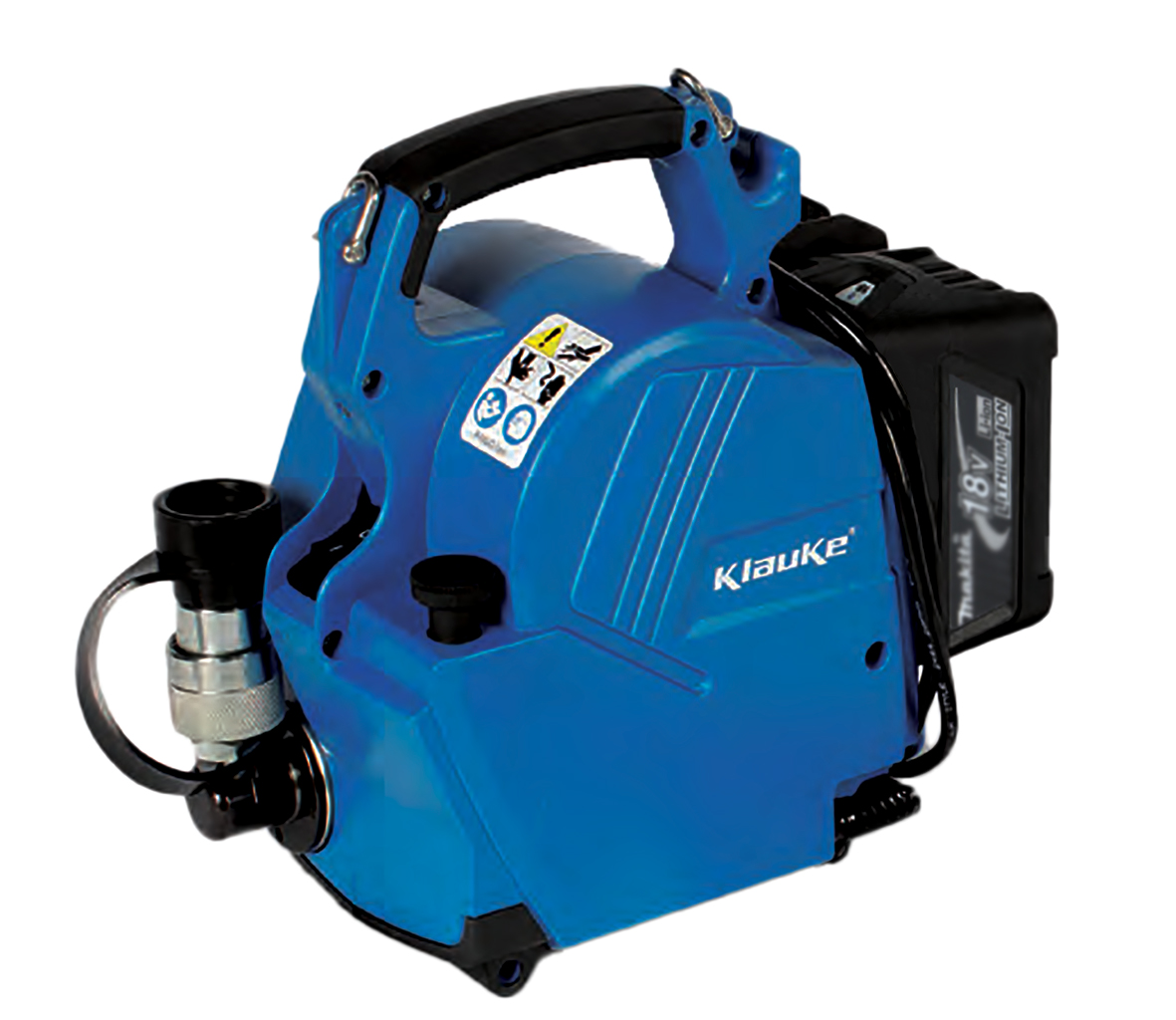

    Battery Pump - Single Acting for operating Hydraulic Crimping, Cutting & Punching Tools / Heads - Klauke

    Compact and lightweight Single Acting Hydraulic Pump for operating remote cutting and crimping heads (As shown in the attached flyer)

  • Compact and lightweight design
  • Suitable for operating high pressure single acting 700 bar crimping and cutting tools
  • Fibreglass reinforced polyamide shock proof housing
  • Pendant Remote control (Standard)
  • All high pressure hoses are supplied with coupling plug and sleeves, filled with hydraulic oil
  • Pump supplied with Parker quick connect Female coupling
  • 2m black conductive Hose is supplied with Parker quick connect Male couplings either end
  • NON-CONDUCTIVE HOSES AVAILABLE UPON REQUEST
  • KIT INCLUDES:

    Hydraulic Pump, Corded Pendant, 2m Black Conductive Hose, Padded Carry Strap, 2 Makita Batteries & Charger

    ITEMUNIT
    Battery Voltage (V)18
    Battery Capacity2 x 3.0Ah. Li-ion*
    Charging Time (min)22
    Weight (kg)5.5 inc battery & hose
    Operating Pressure (PSI)max. 700bar (10000)
    Max Oil Volume (ml)approx. 760ml
    Dimensions (mm)265 (L) x 130 (W) x 250 (H)
