Pole tamper, LP, hydraulic, 1.8m, valve on hose, kidney shape foot, couplers, Reliable

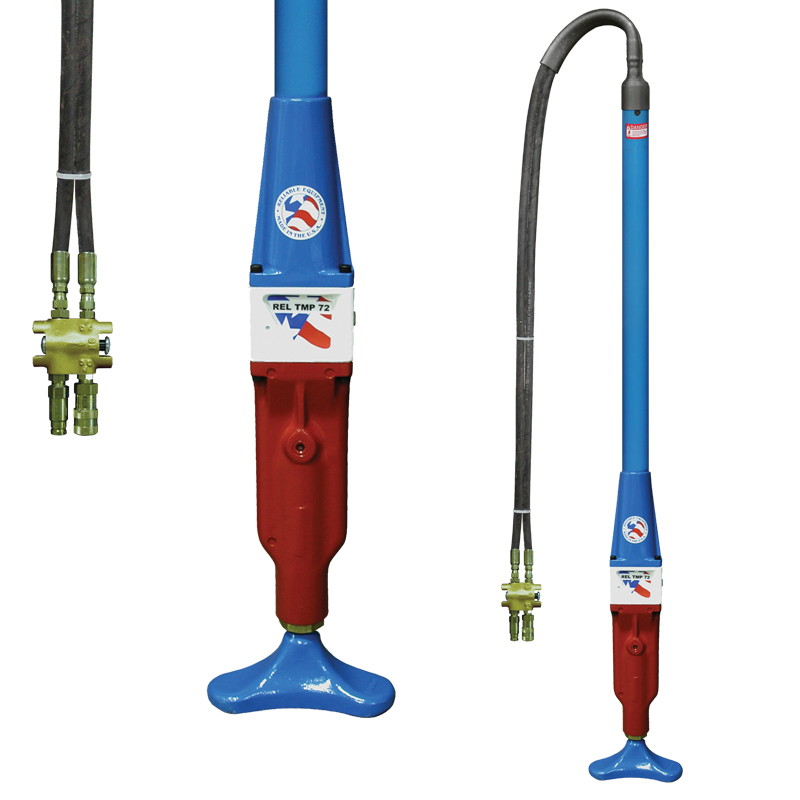

Hydraulic Tamper pole
Power in your hands, pressure off your back
Makes quick work of setting poles, asphalt patch and general construction backfill compacting. Only 3 moving parts for low maintenance.
Reversible On/Off valve for Open and Closed-Center systems (hose-end models). Standard with kidney-shaped foot. Rotate trigger selector for Open and Closed-Center systems (valve on tube models). Used for setting poles and general backfill compacting
Features
- Standard kidney shaped foot included on all models
- Only three moving parts reduces servicing time
- Change between open and closed centre systems
- Flush face couplers fitted
- Hose End Valve & Valve on Tube options available
| Part No. | Type | Length (m) | Width (mm) | Flow range (lt/min) | Pressure Port Thread | Return Port Thread | Foot Size (mm) | Blows (lt/min) | Approx weight (kg) | Tamp safe Part No. |
|---|---|---|---|---|---|---|---|---|---|---|
| REL-TMP-60VT-TEN | Valve on Tube | 1.5 | 100 | 15-23 | ⁹⁄16”-18 SAE O-Ring | ¾”-16 SAE O-Ring | 60 x 200 | 1160 | 9.5 | TS-2001R |
| REL-TMP-72VH-TEN | Valve on hose | 1.8 | 100 | 15-23 | ⁹⁄16”-18 SAE O-Ring | ¾”-16 SAE O-Ring | 60 x 200 | 1160 | 11 | TS-2001R |
| REL-TMP-72VT-TEN | Valve on tube | 1.8 | 100 | 15-23 | ⁹⁄16”-18 SAE O-Ring | ¾”-16 SAE O-Ring | 60 x 200 | 1160 | 11 | TS-2001R |
| REL-TMP-85VH-TEN | Valve on hose | 2.1 | 100 | 15-23 | ⁹⁄16”-18 SAE O-Ring | ¾”-16 SAE O-Ring | 60 x 200 | 1160 | 12.1 | TS-2001R |

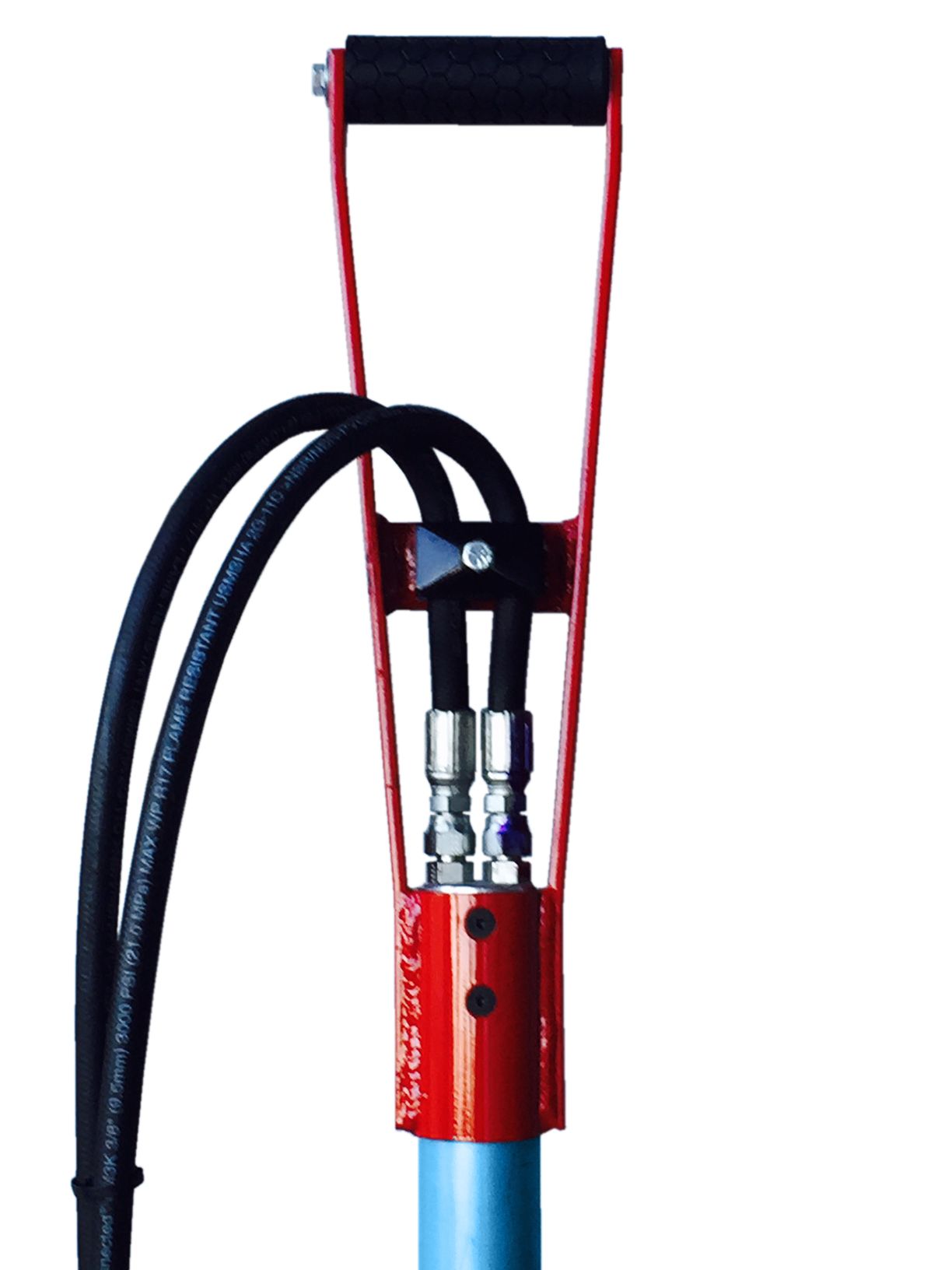

Tamp-safe handle - TS-2001R
The Tamp-Safe handle was designed by a professional linesman for the safety of utility workers.
Tamp-Safe handles are built with safety in mind. It puts the operator’s hand in a safe position away from the hydraulic hoses.
Our innovative handle is designed to attach to most hydraulic tampers, including Reliable, Greenlee/Fairmont, and Stanley tampers.
