Stripper, cable, bushing only, for 2x2-4x4-WS68 tool, 35mm2 XLPE LV ABC, Ripley
.jpg)
Stripper, cable, bushing only, for 2x2-4x4-WS68 tool, 35mm2 XLPE LV ABC, Ripley
Code: RB-201
Brand: Ripley Tools
Product Details
Stripper, cable, bushing only, for 2x2-4x4-WS68 tool, 35mm2 XLPE LV ABC, Ripley
Brand: Ripley Tools
Product Details
Stripper, cable, bushing only, for 2x2-4x4-WS68 tool, 35mm2 XLPE LV ABC, Ripley
TEN Square Cut Cable Stripper Bushing

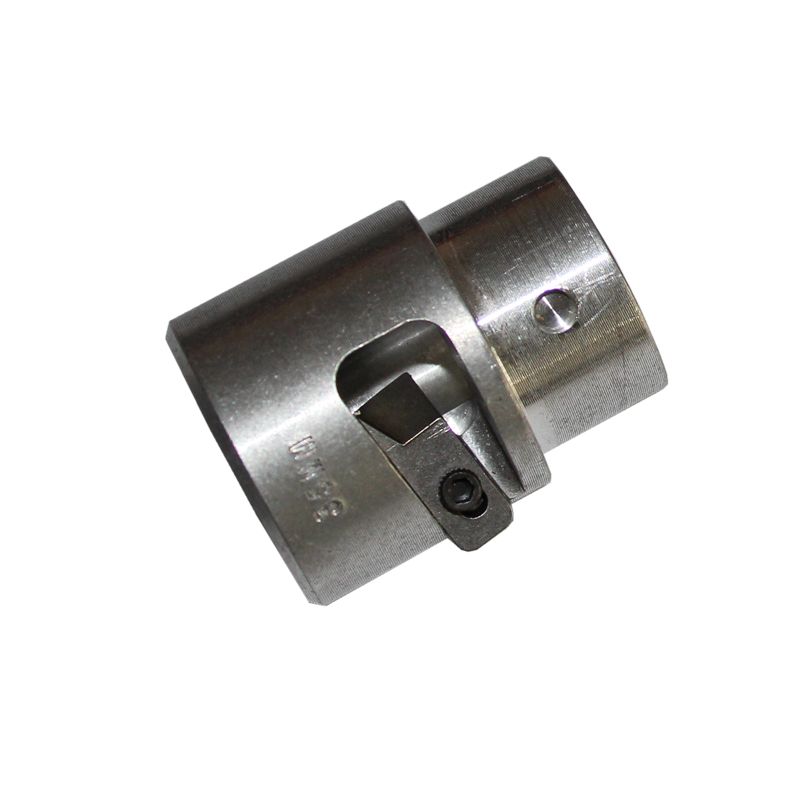

Part No. RB-201 - Cable Stripper Bushing for 35mm² XLPE LV ABC
Large range of bushings suit common Australian cable sizes
Quick and simple bushing interchange for fast cable stripping
Bushings Suit the following Stripping Tools
- Milwaukee - M18™ Battery Cable Stripper - Part No. M18BCS-0C

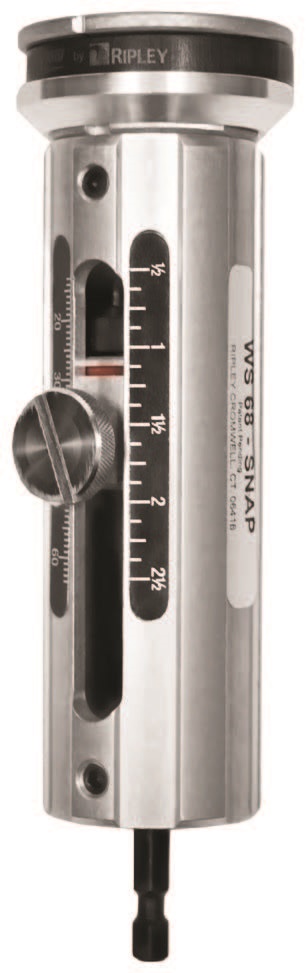

- Ripley - Power Driven Stripper - Part No. WS68-3-8

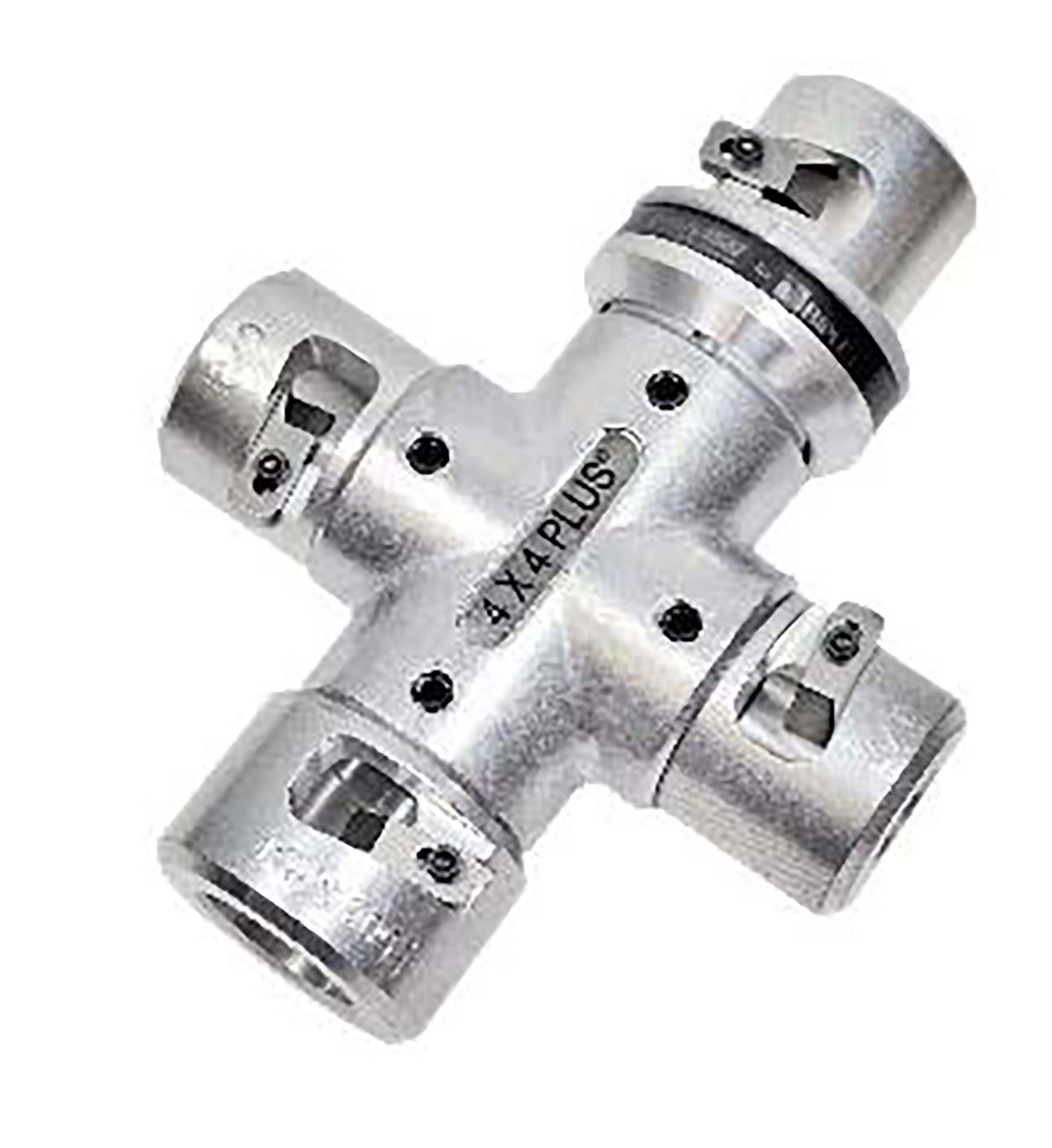

- Ripley - 4 x 4 Stripper - Part No. 36001H

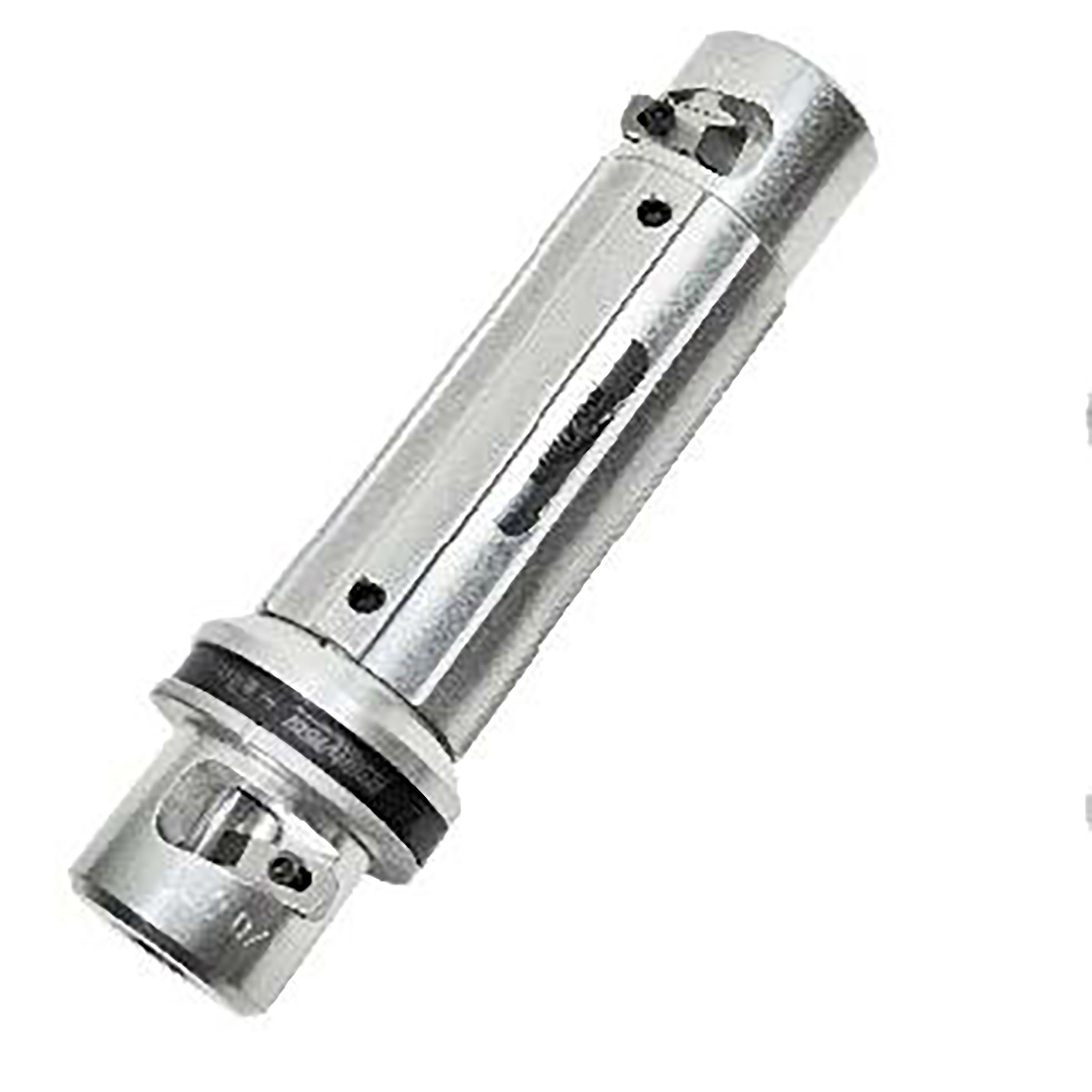

- Ripley - 2 x 2 Stripper - Part No. 36101H
Range of available bushings
| TEN Part No. | Square Cut Bushings to suit LV ABC |
|---|---|
| RB-100 | 10mm² Al XLPE OH |
| RB-101 | 16mm² Al XLPE OH |
| RB-200 | 25mm² Al XLPE OH |
| RB-201 | 35mm² Al XLPE OH |
| RB-300 | 50mm² Al XLPE OH |
| RB-301 | 70mm² Al XLPE OH |
| RB-400 | 95mm² Al XLPE OH |
| RB-401 | 120mm² Al XLPE OH |
| RB-500 | 150mm² Al XLPE OH |
| TEN Part No. | Square Cut Bushings to suit Underground |
| RB-102 | 16mm² Cu XLPE/PVC LV UG (Olex) |
| RB-202 | 35mm² Cu XLPE/PVC LV UG (Olex) |
| RB-302 | 50mm² Cu XLPE/PVC LV UG (Olex) |
| TEN Part No. | Square Cut Bushings to suit Building Cable |
| RB-103 | 16mm² Cu PVC SDI V90 - Red (Olex) |
| RB-103 | 16mm² Cu PVC SDI V90 - Black (Olex) |
| RB-303 | 70mm² 19/2.14 Cu Green/Yellow Earth building wire |
| RB-600 | 240mm² Cu Double Insulated |
| TEN Part No. | Square Cut Bushings to suit PVC |
| RB-304 | 50mm² Cu PVC 0.6/1kV - Black on White (Olex) |
| RB-305 | 70mm² Cu PVC 0.6/1kV - Black on Clear (Olex) |
| RB-305 | 70mm² Cu PVC 0.6/1kV - Black-White on Clear (Olex) |
| TEN Part No. | Square Cut Bushings to suit Misc Cable |
| RB-306 | 70mm² Cu XLPE / PVC, Black on White (Olex) |
| RB-402 | 120mm² Cu XLPE / PVC, Black on Clear (Olex) |
| RB-501 | 150mm² Cu, Black-White on Clear (Olex) |
| RB-502 | 185mm² Cu, Black-White on Clear (Olex) |
| RB-502 | 185mm² Cu, Black (Prysmian) |
| RB-501 | 150mm² Al, Black (Olex) |
| RB-601 | 240mm² Al XLPE / PVC, Black on Colour (Olex) |
| RB-700 | 157mm² HD Al, Railway, 12 x 3.27 0.6/1KV V-90 L Electric Cable (Prysmian) |
| CB6667 | Bushing spare blade |
| TEN Part No. | Ripley Stripper Bodies & Accessories |
| WS68-3-8 | RIPLEY Power/Drill Driven Stripper |
| 36001H | RIPLEY 4 x 4 Stripper |
| 36101H | RIPLEY 2 x 2 Stripper |

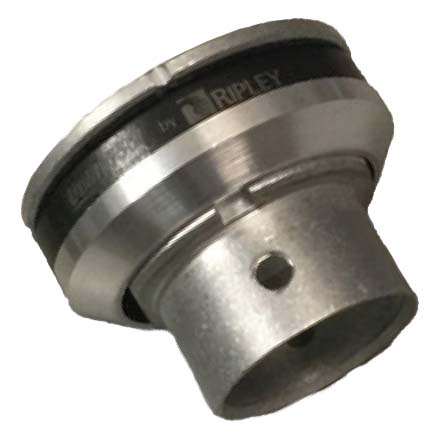

| 40110 | RIPLEY Bushing quick connect for above strippers |
