Tester, phase rotation, non- contact, CAT IV 600V, c/w 1m lead set

Ten Group // TEST & MEASUREMENT // Phase Rotation & Sequencing // Phase Sequence & Rotation // Tester, phase rotation, non- contact, CAT IV 600V, c/w 1m lead set
Tester, phase rotation, non- contact, CAT IV 600V, c/w 1m lead set


Code: PR3NC
Brand:
Product Details

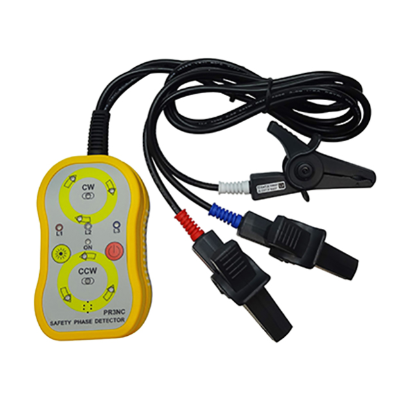

Tester, phase rotation, non- contact, CAT IV 600V, c/w 1m lead set

Phase Rotation Meter - Non Contact

Our Phase Rotation Meters have been designed to offer the highest Safety Rating CATIV 600V. TEN offers both contact and non-contact versions. Our Phase Rotation Meters are designed for Use with Utility workers, ASP Service providers, Industrial, Commercial and General Electricians

FEATURES

  • The PR3NC is a Non-Contact phase detector with flashing LEDs and a beeping buzzer to show the detection of AC 3-phase sequence
  • Two functions in one unit : open phase and phase sequence detection
  • Convenient brightness switch to make the indication visible in dim areas or sunlight
  • Back cover magnets which attach the instrument to the distribution panel offer easy measurement
  • 3-Phase AC 75 to 1000V is fitted for detection
  • Detect frequency range is from 45 to 65Hz
  • 1 meter lead
  • CAT IV 600V Safety Rating
  • Available with a 2m test leads - Part No. PR3NC-2M
