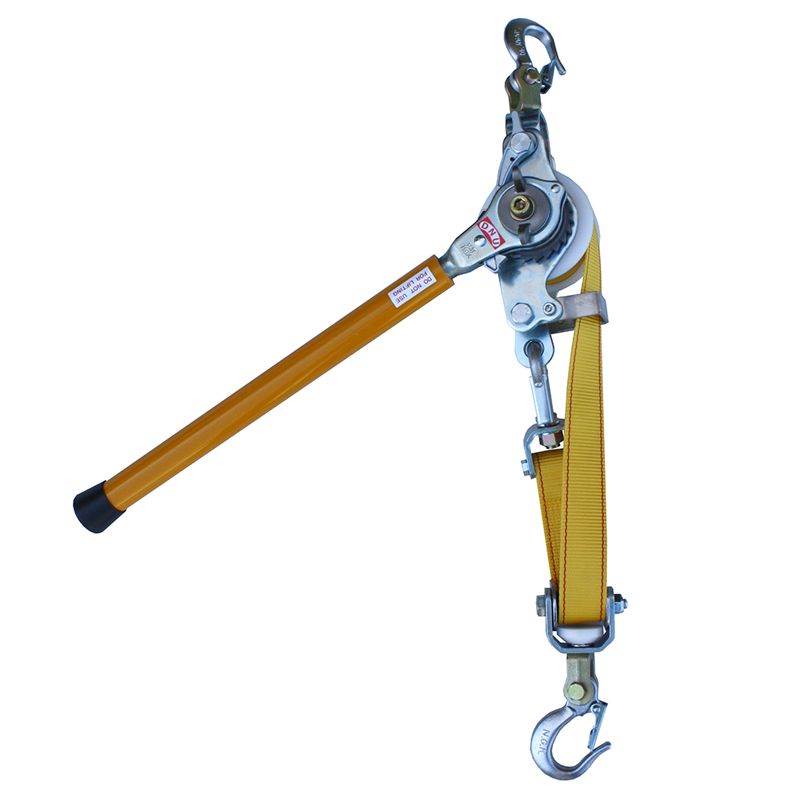

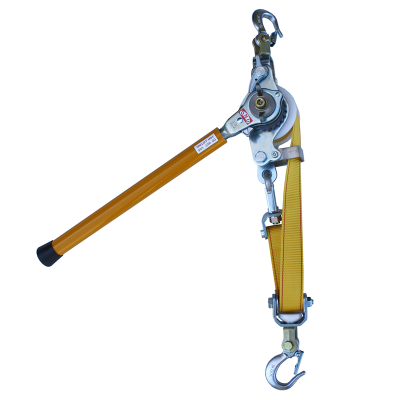

NGK ratchet web hoist – single, 1.5m, 1T (10kN)
Nagaki NGK N-1000P
Web Strap Ratchet Hoists
NGK web strap hoists feature insulated super-strength 32mm wide web straps, insulated fibreglass handles and a special handle neck that will bend if the unit is overloaded to prevent damage to the puller and injury to the operator.
Features
- Convertible series with 3 hooks
- Lightweight
- Insulated handles rotate 360 deg
- Controlled smother release of load
- Made in Japan from Japanese components
- Look for the Nagaki yellow strap, beware of cheap imitations
NEW patented handle
- With sealed ratchet mechanism to keep contaminants out
- Constructed solid one piece section, and provides exceptional durability and performance
- Interchangeable with previous handles
- Available for Web-strap N-1000, N-1500 models
| Part No | WLL (T) | Min Pull (mm) | Max Pull (mm) | Handle Length (mm) | Wt (kg) | Spare strap |
|---|---|---|---|---|---|---|
| N-1000P | 1.0 | 440 | 1940 | 400 | 3.3 | PNGK-N-1000P-SK |
| N-1500P | 1.5 | 470 | 1975 | 460 | 4.6 | PNGK-N-1500P-SK |
| N-1500P-EX | 0.75 Single 1.5 Double |
500 | 3500 Single 2000 Double |
460 | 5.0 | PNGK-N1500PEX-SK |
| N-1500P-EX-L | Pulling: 0.75 Single / 1.5 Double Lifting: 200kg Single / 400kg Double |
500 | 3500 Single 2000 Double |
460 | 5.0 | PNGK-N1500PEX-SK |
