Code: IR-3108
Brand: Riganti
Product Details

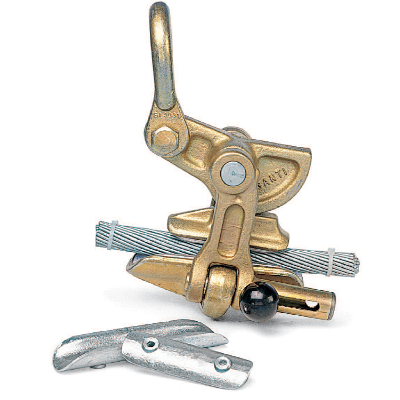

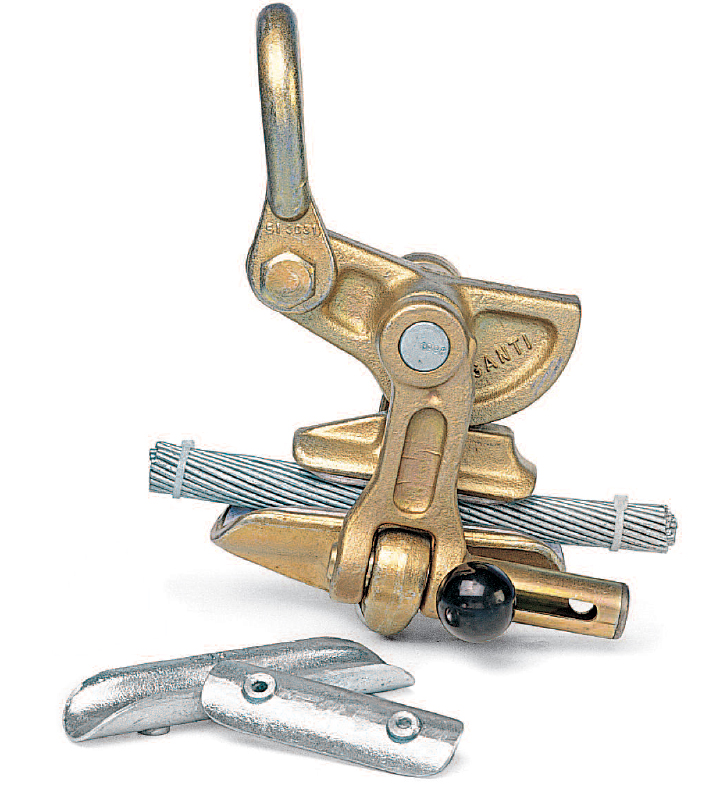

Grip, wire, interchangable liners, 7-38mm, 110kN breaking load, for lifting, Riganti


Riganti Grips and Liners


Riganti’s self-gripping comealongs are available for aluminium, ACSR, steel earthwire, antitwisting rope, copper and OPGW conductors.

Part No Working Load Limit
(kN)
Minimum Breaking Load
(kN)
Liners Al, ACSR and Cu
(mm)
Steel, Earth-wire
(mm)
Anti-twist Steel Rope
(mm)
Weight
(kg)
IR-3108* 39.5 110 YES Lifting suspension conductors 7 - 38mm 5.5

Features

  • Self-gripping clamp suitable for lifting conductors in suspension. Suitable for aluminium, A.C.S.R. from 7 mm to 38 mm.
  • Made of high tensile alloy steel, hot forged, heat-treated, precision machined and zinc-plated with a complete range of interchangeable liners. The liners are available in aluminium for aluminium or aluminium/steel conductors.

Made of high tensile alloy steel, hot forged, heat-treated, precision machined and zinc-plated with a complete range of interchangeable liners. This means working at lower costs on conductors of different materials and diameters only by changing the liners.

The liners are available in aluminium for aluminium or aluminium/steel conductors and bronze for copper conductors, steel anti-twisting rope and steel earthwire.

For OPGW conductor the lower liner is made of Adiprene, whereas the upper liner is made of aluminium.

All Riganti self-gripping clamps comply with European safety standard CE. Special clamps with exact diameters available on request with or without liners.

Other Riganti Grips Available

Part No Working Load Limit
(kN)
Minimum Breaking Load
(kN)
Liners Al, ACSR and Cu
(mm)
Steel, Earth-wire
(mm)
Anti-twist Steel Rope
(mm)
Weight
(kg)
IR-3109 19.6 49 NO 2.5 15 2.5 15 2.5 15 1.5
IR-3111* 21.2 64 YES 7 16 7 13 7 13 2.5
IR-3108* 39.5 110 YES Lifting suspension conductors 7 - 38mm 5.5
IR-3106 50 125 NO 7.5 18 7.5 18 7.5 13 7
IR-3107* 49 180 YES 6 23 6 16 6 16 7
IR-3112* 49 180 YES OPGW 6 - 23mm 7
IR-3105-S* 88 275 YES 8 35.2 8 22 8 24 13.5
IR-3104-S* 117 310 YES 10 45 10 34 8 28 17

*Exact size required for manufacture of liners
