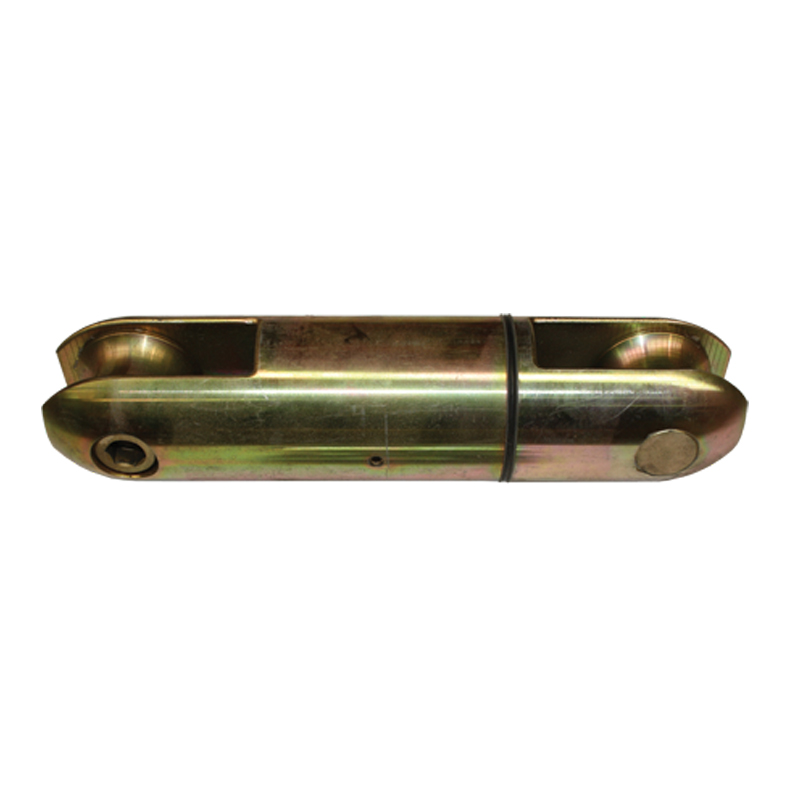

Swivel, joint, 77mm D, 750kN breaking load, 322mm L, 28mm max rope D, Tesmec
Code: GGT040
Brand: Tesmec
Product Details
Swivel, joint, 77mm D, 750kN breaking load, 322mm L, 28mm max rope D, Tesmec
Brand: Tesmec
Product Details
Swivel, joint, 77mm D, 750kN breaking load, 322mm L, 28mm max rope D, Tesmec
- Swivels for connecting pulling rope to cable sock
- Used for Overhead or Underground application
- Made from high tensile galvanised and corrosion protected steel
- Chamfered edges allowing smooth passing through rollers or conduit
- Special design can bear high radial loads. Thrust bearings designed to avoid torsion strain accumulation
SPECIFICATIONS
| Part # | Max. Rope Size | Break Load | Diameter | Overall Length | Weight |
|---|---|---|---|---|---|
| GGT001 | 10mm OD | 70kN | 28mm | 106mm | 0.3kg |
| GGT010 | 13mm OD | 110kN | 40mm | 143mm | 0.9kg |
| GGT020 | 18mm OD | 220kN | 54mm | 184mm | 2.1kg |
| GGT030 | 24mm OD | 360kN | 60mm | 234mm | 3.4kg |
| GGT040 | 28mm OD | 750kN | 77mm | 322mm | 8.2kg |
