Fixed joint, max cable 28mm OD, 174mmL, 750kN breaking load, Tesmec
Fixed joint, max cable 28mm OD, 174mmL, 750kN breaking load, Tesmec
Code: GFT050
Brand: Tesmec
Product Details
Fixed joint, max cable 28mm OD, 174mmL, 750kN breaking load, Tesmec
Brand: Tesmec
Product Details
Fixed joint, max cable 28mm OD, 174mmL, 750kN breaking load, Tesmec

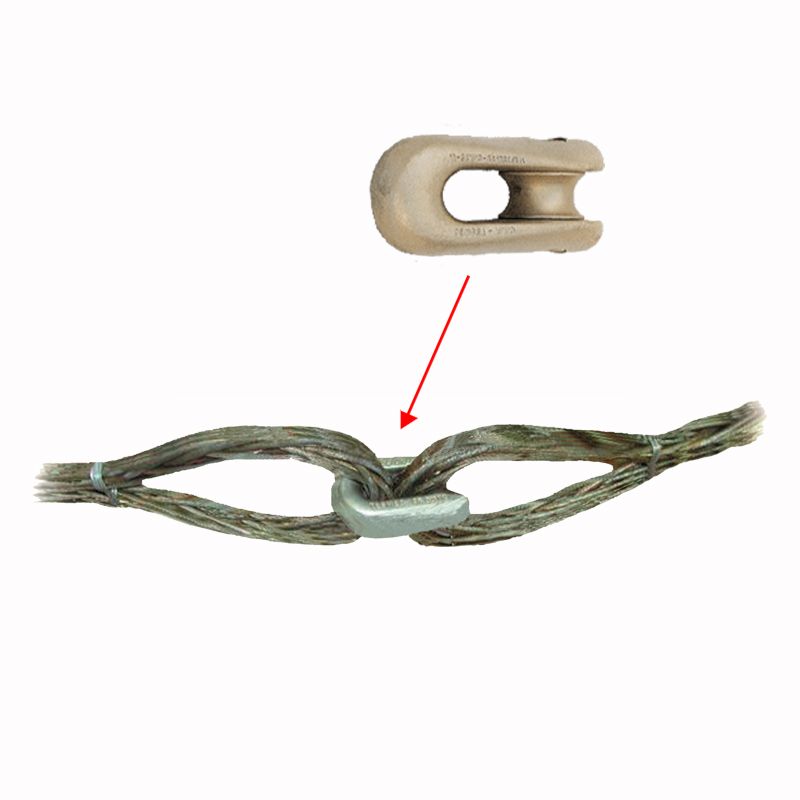

Tesmec Fixed Joint Connectors
Connectors are specifically designed to connect pilot rope lengths or pulling rope lengths to pass over puller or puller-tensioner bull wheels. The special profile minimises the overload on the rope spliced eyes during this action.
- Made from highly tensile steel with a galvanised finish
|
Part No |
Suits Rope |
Breaking Load |
Weight |
|
GFT001 |
>10mmOD |
70kN |
0.1kg |
|
GFT010 |
>13mmOD |
110kN |
0.3kg |
|
GFT020 |
>16mmOD |
160kN |
0.5kg |
|
GFT030 |
>18mmOD |
220kN |
0.8kg |
|
GFT040 |
>24mmOD |
360kN |
1.0kg |
|
GFT050 |
>32mmOD |
750kN |
3.0kg |
