Fixed Joint - GFT, Max Cable 18mm OD, 102mm Long
Brand: Tesmec
Product Details
Fixed Joint - GFT, Max Cable 18mm OD, 102mm Long

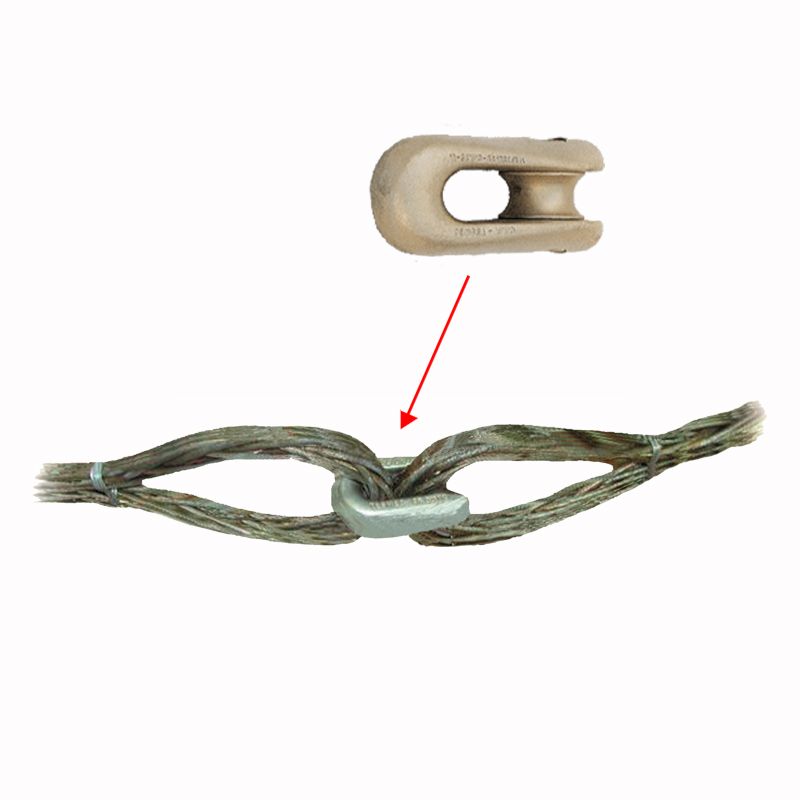

Tesmec Fixed Joint Connectors
Connectors are specifically designed to connect pilot rope lengths or pulling rope lengths to pass over puller or puller-tensioner bull wheels. The special profile minimises the overload on the rope spliced eyes during this action.
- Made from highly tensile steel with a galvanised finish
|
Part No |
Suits Rope |
Breaking Load |
Weight |
|
GFT001 |
>10mmOD |
70kN |
0.1kg |
|
GFT010 |
>13mmOD |
110kN |
0.3kg |
|
GFT020 |
>16mmOD |
160kN |
0.5kg |
|
GFT030 |
>18mmOD |
220kN |
0.8kg |
|
GFT040 |
>24mmOD |
360kN |
1.0kg |
|
GFT050 |
>32mmOD |
750kN |
3.0kg |
