Fixed Joint 73.75mm Length 13mm capacity max
Fixed Joint 73.75mm Length 13mm capacity max
Code: GFT010
Brand: Tesmec
Product Details
Fixed Joint 73.75mm Length 13mm capacity max
Brand: Tesmec
Product Details
Fixed Joint 73.75mm Length 13mm capacity max

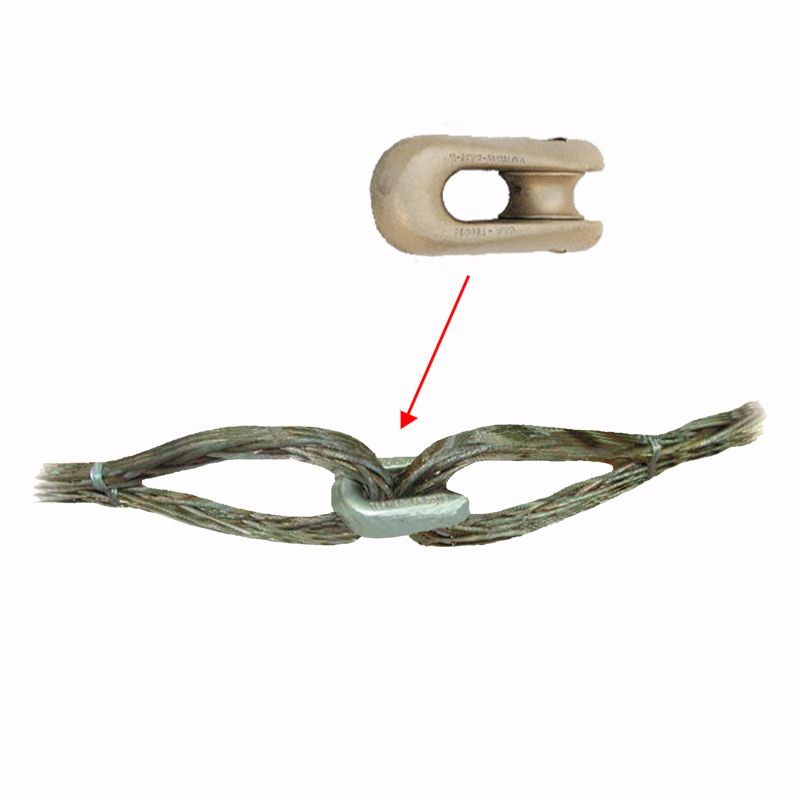

Tesmec Fixed Joint Connectors
Connectors are specifically designed to connect pilot rope lengths or pulling rope lengths to pass over puller or puller-tensioner bull wheels. The special profile minimises the overload on the rope spliced eyes during this action.
- Made from highly tensile steel with a galvanised finish
|
Part No |
Suits Rope |
Breaking Load |
Weight |
|
GFT001 |
>10mmOD |
70kN |
0.1kg |
|
GFT010 |
>13mmOD |
110kN |
0.3kg |
|
GFT020 |
>16mmOD |
160kN |
0.5kg |
|
GFT030 |
>18mmOD |
220kN |
0.8kg |
|
GFT040 |
>24mmOD |
360kN |
1.0kg |
|
GFT050 |
>32mmOD |
750kN |
3.0kg |
