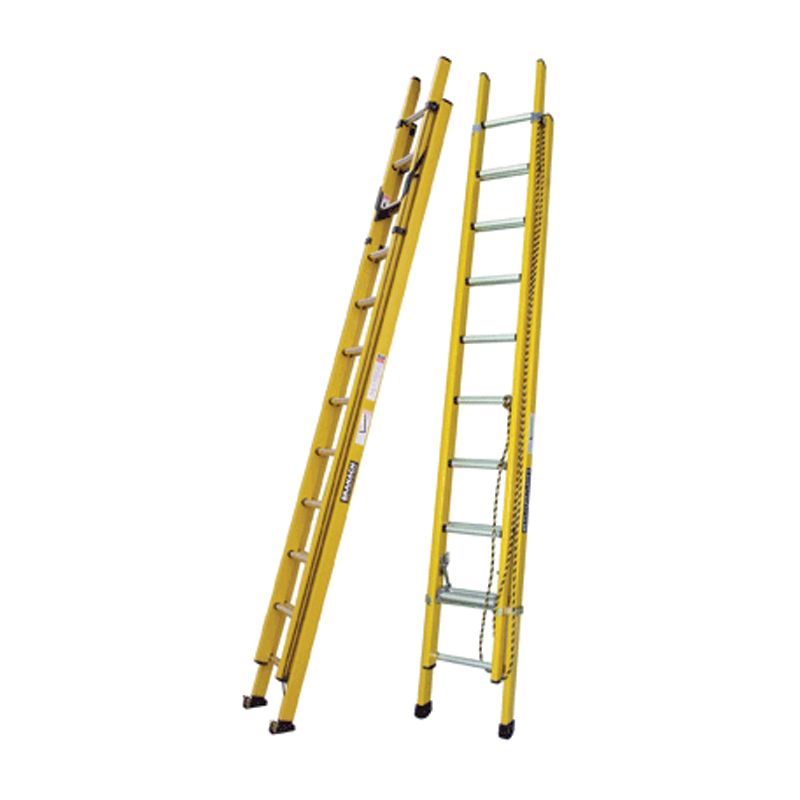

Branach Fibreglass Extension Ladder 4.5m - 7.6m, 160kg WLL
Brand: Branach
Product Details
Ladder, fibreglass, extension, 4.5 -7.6m, 160kg WLL, pole strap, top lash, Branach
Contact Us
Branach Powermaster Fibreglass Extension Ladders
Branach's fibreglass ladders are purpose-built for the electrical industry, known for their quick, safe, and efficient performance. Designed with a focus on safety and tailored to the unique needs of electrical professionals, these ladders offer lightweight yet robust construction, electrical insulation, and a reputation for reliability.
| Part # | Included Accessories | Retracted | Extended | WLL | Weight |
|---|---|---|---|---|---|
| FED3.4-PS-TL | PS: Pole Strap - TL: Top Lash | 2.4m | 3.4m | 160kg | 12.0kg |
- High strength durable box rails
- Light weight
- Twist and sway resistant
- Weather resistant
- Patented latch system
- Swivel feet with urethane studs and gravel spikes
- Spring rope retraction
- Non-slip “D” profile rungs
- Non conductive safety yellow fibreglass
- Side pull standard
- Complies with AS/NZS1892.3.1996
| Part # | Retracted | Extended | WLL | Weight |
|---|---|---|---|---|
| FED 3.4 | 2.4m | 3.4m | 160kg | 12.0kg |
| FED 4.0 | 2.7m | 4.0m | 160kg | 15.5kg |
| FED 5.2 | 3.3m | 5.2m | 160kg | 18.5kg |
| FED 6.4 | 3.9m | 6.4m | 160kg | 21.6kg |
| FED 7.6 | 4.5m | 7.6m | 160kg | 27.1kg |
| FED 8.8 | 5.1m | 8.8m | 150kg | 31.5kg |
| FED 9.4 | 5.7m | 9.4m | 140kg | 35.5kg |
| FED 9.8 | 5.8m | 9.8m | 120kg | 35.5kg |
Accessories that making working at heights safer and more productive
Although the ladders are lightweight and easy to use, the working environments can be difficult and vary greatly, from loose gravel to the need for extra safety when working with high overhead electrical wires.
Branach recognised the industry’s need for accessories to be designed to enhance safety and performance.
Today, this range of additional equipment has been recognised for its innovative design and quality of manufacture. Whatever the situation, Branach has an answer.
- To overcome the problem of uneven ground, the ladder can use a swivel foot for minor slopes or a set of levellers for more extreme ground conditions.
- To prevent slipping on a greasy or water soaked base, a lashing rope can be used to tie the base of the ladder to the work pole.
- Unique cable hooks allow workers to rest the top of the ladder against a cable for improved safety and stability and make it possible to work mid-strand.
- When conditions require the ladder to be placed against a power-pole, the Branach accessory to use is either the pole chain or pole strap.
- If there is a possibility of damage to a building’s surface due to the ladder being in contact with it, then rubber boots are available for the fly end of the ladder.
The same world class standards that made Branach the premier brand for working at heights can also be found in the range of exclusive accessories.

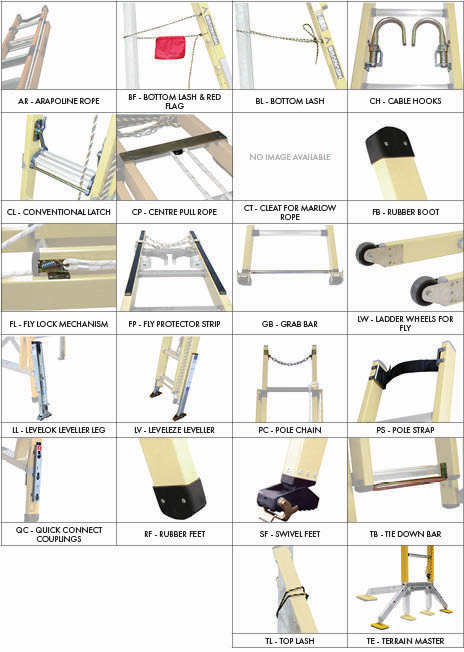

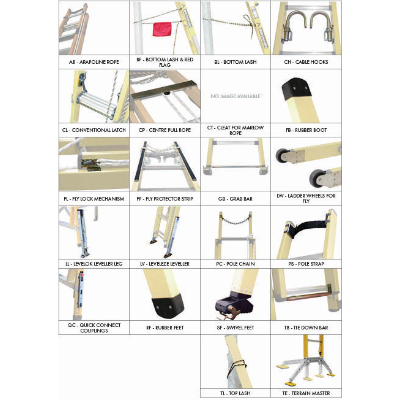

*Accessories for FED Series (Sold Separately)
