Crimper, battery hydraulic, 18V, b/tooth, dieless, 10-240mm2, skin, Klauke

Crimper, battery hydraulic, 18V, b/tooth, dieless, 10-240mm2, skin, Klauke


Code: EK60VPCFM-0
Brand: Klauke
Product Details
Crimper, battery hydraulic, 18V, b/tooth, dieless, 10-240mm2, skin, Klauke

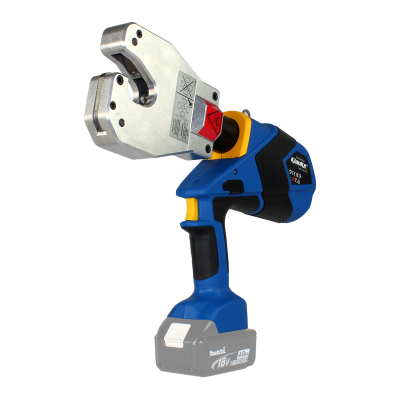

Klauke Battery Powered Hydraulic Crimping Tool 10-240mm

Part No: EK60VPCFM-0 (skin supplied with case)

Part No: EK60VPCFM-K (tool supplied with case inc. charger and 2 x batteries)

Crimps optimised at all times due to the patented centring system

Fast crimp cycles due to Automatic Retraction Stop(ARS)

All tool data can be viewed using on-tool display and i-press app

Features

  • Makita battery system
  • All data can be easily read via Bluetooth
  • Quad-point indent crimping with patented centring system, no crimping dies required
  • Open head, rotatable
  • Simple and safe: One-button operating concept for controlling all tool functions
  • Quality assurance via visual and audible signals in case of error
  • Simple and safe: One-button operating concept for controlling all tool functions
  • Effortless working due to balanced centre of gravity
  • LED for work area illumination
  • 2 stage hydraulic system with fast feed and power stroke
  • Simple and safe: Automatic retraction when operation is complete
  • Battery charge and service display
Specification
Crimping Force55kN
Crimping Range10-240mmsq
Crimping Cycleapprox. 3-6 secs
Number of Crimpsapprox 300 at 150mm
BatteryMakita 18V 4.0Ah, Li-Ion
Charging Time22 min
Ambient Temperature-10C up to +40C
Weight Including battery5.25kg
