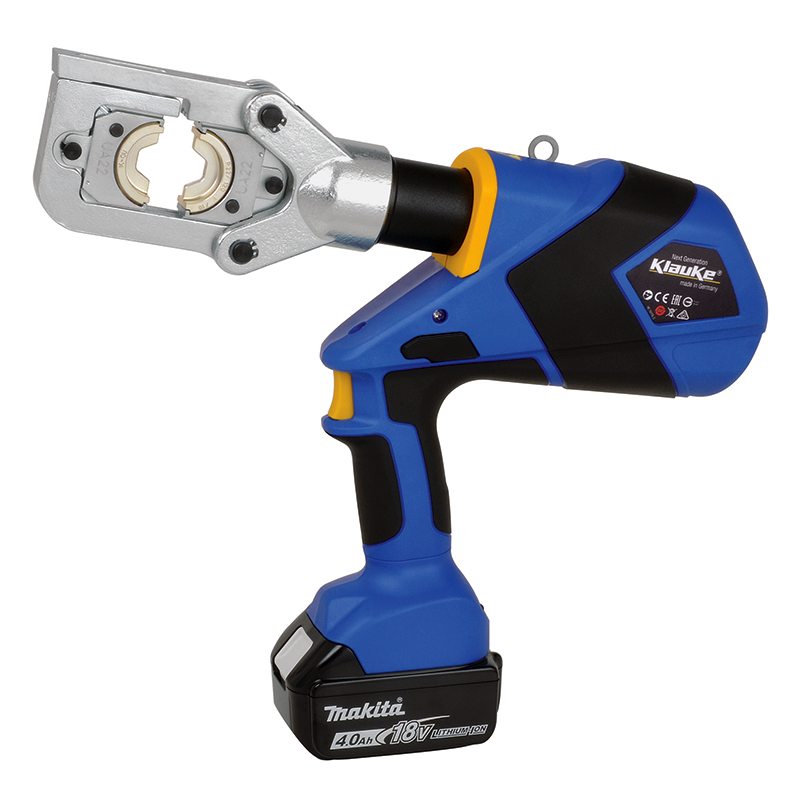

Multi Tool - Battery Hydraulic - c/w 6 Tonne Die adaptor, Crimp - Cut - Punch
Multi Tool - Battery Hydraulic
- c/w 6 Tonne Die adaptor,
Crimp - Cut - Punch
Code: EK60UNVCFM-0
Brand: Klauke
Product Details
Multi, battery hydraulic, 18V, b/tooth, 6T, light, UA22 adaptor, skin, Klauke
Brand: Klauke
Product Details
Multi, battery hydraulic, 18V, b/tooth, 6T, light, UA22 adaptor, skin, Klauke
- One head for crimping, cutting and punching - one tool for all
- Ideal in the assembly field where all common jobs can be carried out using one tool
- Fast working due to 2-stage hydraulics
- All tool data on view thanks to display and i-press® app
Features
- All data can be easily read via Bluetooth
- Universal head flip top style, rotatable
- Simple and safe: One-button operating concept for controlling all tool functions
- Effortless working due to balanced centre of gravity
- LED for work area illumination
- Simple and safe: Automatic retraction when operation is complete
- Always ready-to-use thanks to battery charge and service display
| EK60UNVCFM | Specification |
|---|---|
| Crimping Force | 60kN |
| Stroke | 42mm |
| Crimping Range | 6 - 300mm² |
| Crimping Cycle | 3 - 5 seconds (depending on cross-section) |
| Cutting Range | max. 40mm diameter |
| Punching Capacity | up to 64mm diameter round |
| Charging Time | 45 minutes |
| Weight | 4.8kg |
