Kit, crimper, battery hydr, b/tooth, 5T, to 240mm2, 2 x 18v Li, charger, Klauke

Kit, crimper, battery hydr, b/tooth, 5T, to 240mm2, 2 x 18v Li, charger, Klauke


Code: EK425CFM-K
Brand: Klauke
Product Details
Kit, crimper, battery hydr, b/tooth, 5T, to 240mm2, 2 x 18v Li, charger, Klauke


Kit Components

This item contains the following components:

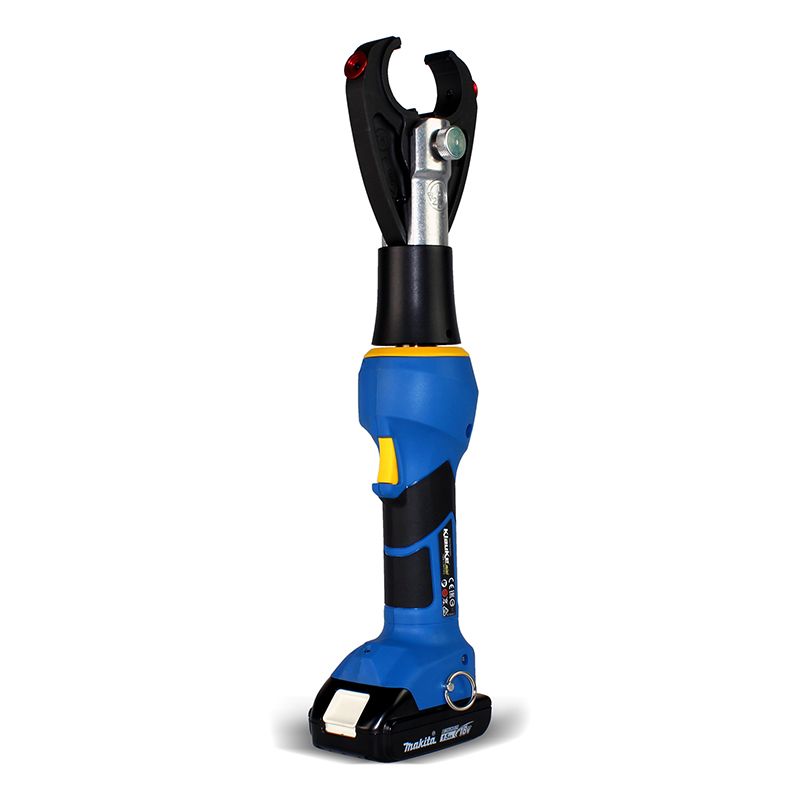

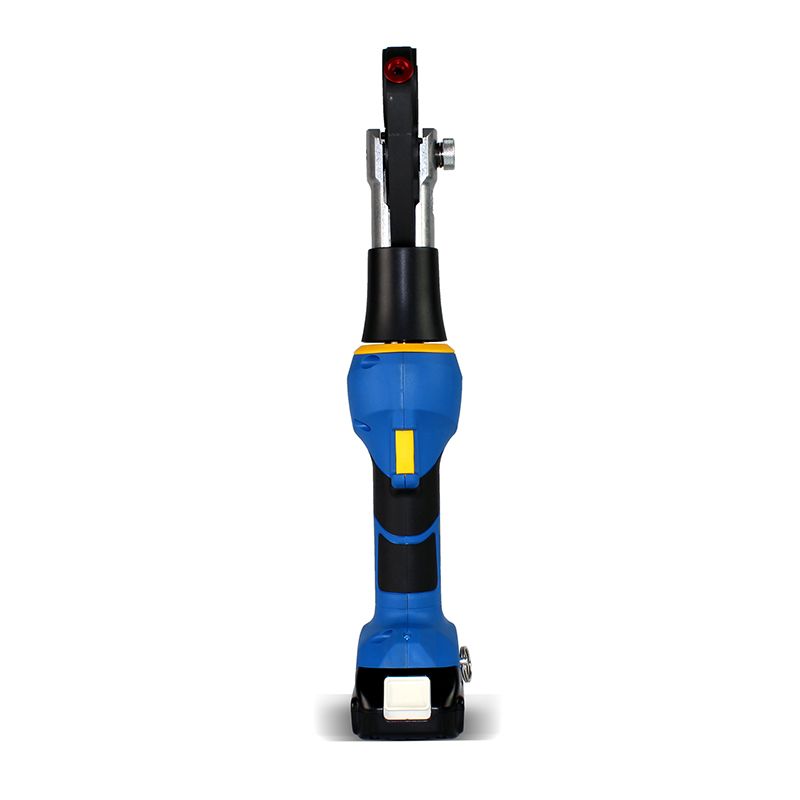

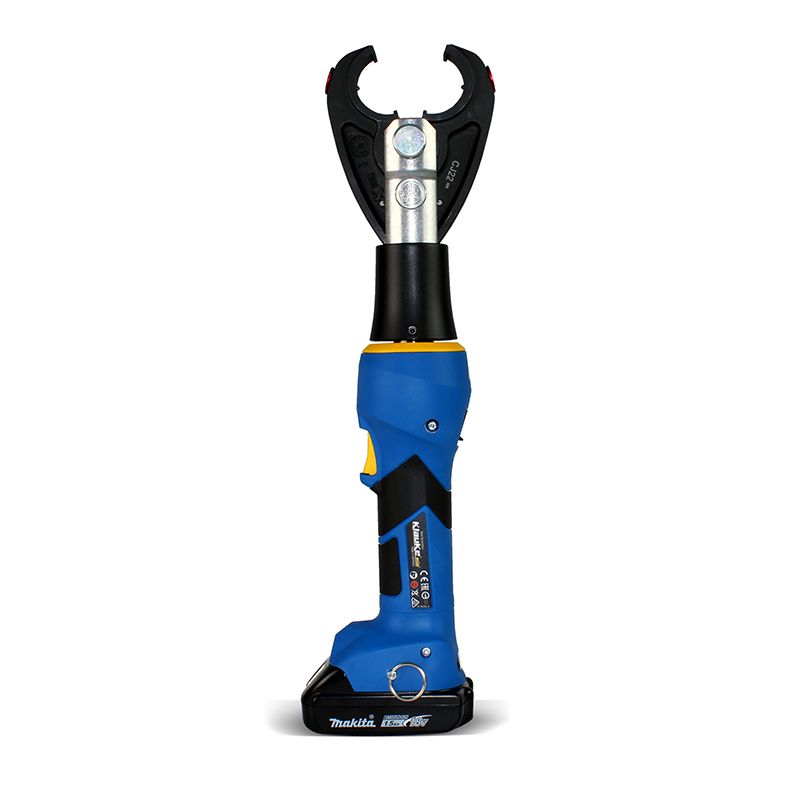

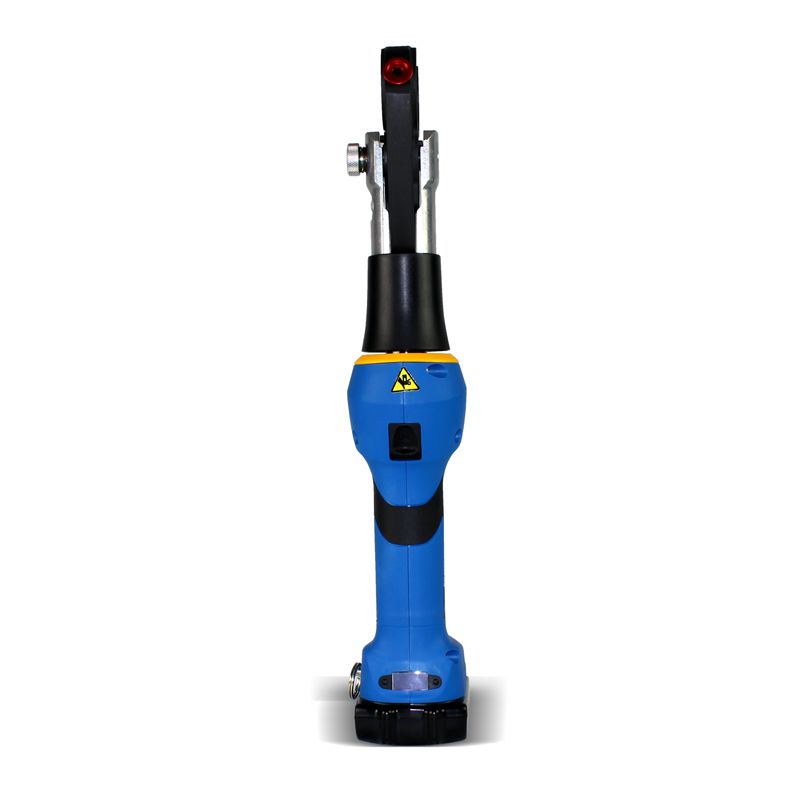

Klauke Battery Powered Hydraulic Crimping Tool 5T

Part No: EK425CFM-0 (skin supplied with case)

Part No: EK425CFM-K (tool supplied with case inc. charger and 2x 1.3Ah battery)

Features

  • High performance 18 V Lithium-Ion Battery, 50% higher capacity than previous model and extremely short charging times
  • Powerful motor for quick crimping cycle
  • One handed ergonomic design with single push button operation
  • Electronic control and inspection of crimping cycle
  • Integrated pressure test with optical and acoustical signal in case of failure
  • LED light to illuminate working space
  • Multifunctional LED indicates maintenance and battery control
  • Automatic stop once crimp is completed, saving power and extending battery life
  • Quick motor stop guarantees highest safety for the operator
  • Automatic retraction once crimp is completed
  • Manual retraction does not rely on battery power
  • Environment-friendly hydraulic oil, quickly biodegradable
Specification
Crimping Force50kN/5T
Al/CuAl - 300mmsq Cu - 240mmsq
ACSR185mmsq
Number of Crimps per chargeapprox 140 @ 70mm
Head TypeScissor
Head Rotation360deg
StrokeJaw Opening - 40mm
Weight2.6kg inc battery
Dimensions430mm(H) x 110mm(W) x 80mm(D)

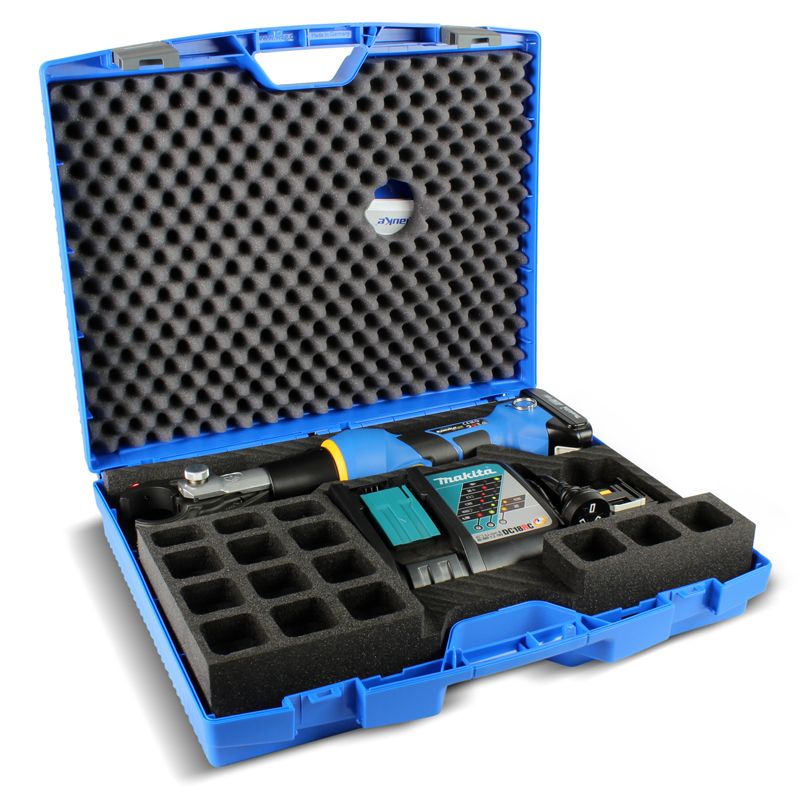

Kit IncludesComes with tool, case, 1.3Ah battery and charger

Companion Products

  • Head, suit EK425, ACSR cutting jaws, max 17.5mm cut, Klauke
  • Head, suit EK425, Cu/Al cutting jaws, max 20mm cut, Klauke
  • Die, 6T, hex, Cu, 10.4mm AF, 50mm2, 9mm W, TEN
  • Die, 6T, hex, Al, 17.3mm AF, 95-120mm2, 12.0mm W, TEN
