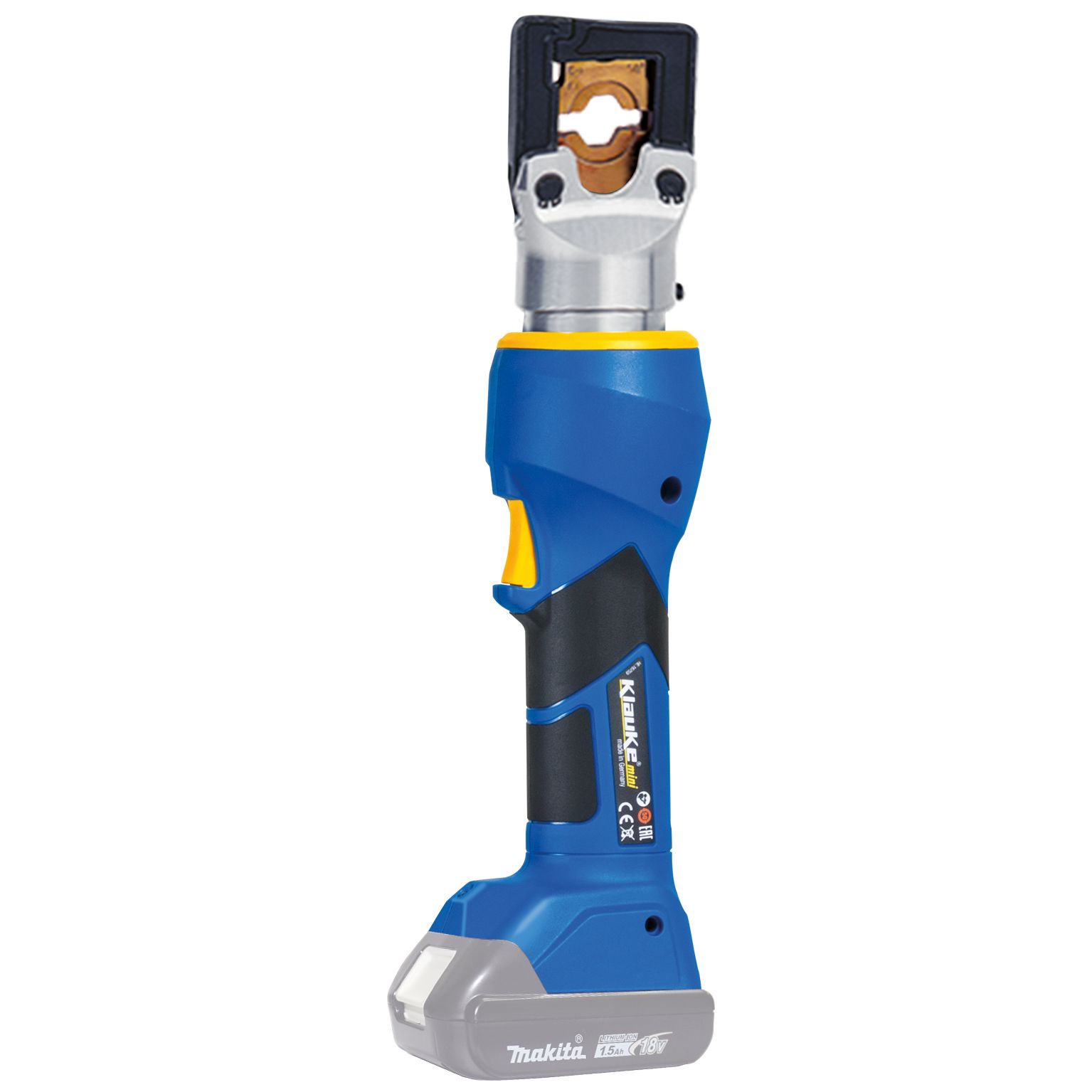

Crimper, battery hydraulic, 18v, b/tooth, 3.5T, 9mm stroke, flip top, skin, Klauke
Crimper, battery hydraulic, 18v, b/tooth, 3.5T, 9mm stroke, flip top, skin, Klauke


Code: EK354CFM-0
Brand: Klauke
Product Details
Crimper, battery hydraulic, 18v, b/tooth, 3.5T, 9mm stroke, flip top, skin, Klauke


Battery Powered Crimping Tool - 3.5 Tonne

Part No Description
EK354CFM-0Tool Skin, Case
EK354CFM-KCrimping Tool, 2 x Makita batteries, Makita Charger, Case

  • Crimps 6 to 150 mm²
  • Slim crimping head - ideal for confined work areas
  • All tool data view on display and using ipress app

Features

  • All data can be easily read via Bluetooth
  • Closed head, flip-top style, rotatable
  • Visual and audible signals in case of error
  • One-button controlling all tool functions
  • 2.4kg total weight
  • LED for work area illumination
  • Always ready-to-use thanks to battery charge and service display
  • Simple and safe: Automatic retraction when the operation is complete

See attached PDF for Series 4 Dies

Specifications
Crimping Force (kN)35
Crimping Range (mm²)6-150
Stroke/Opening Width (mm)9
Crimping Cycle 3 - 4s (depending on crimp cross-section)
Number of Crimps approx. 145 at 120 Cu
Battery Makita 18V 1.5Ah*
Charging Time (min) 15
Weight (kg) 2.4 including battery
