Crimper, battery hydraulic, 18V, b/tooth, 13.5T, 12/15T, dies, to 630mm2, skin, Klauke
Crimper, battery hydraulic, 18V, b/tooth, 13.5T, 12/15T, dies, to 630mm2, skin, Klauke
Code: EK135FTCFM-0
Brand: Klauke
Product Details
Crimper, battery hydraulic, 18V, b/tooth, 13.5T, 12/15T, dies, to 630mm2, skin, Klauke
Brand: Klauke
Product Details
Crimper, battery hydraulic, 18V, b/tooth, 13.5T, 12/15T, dies, to 630mm2, skin, Klauke

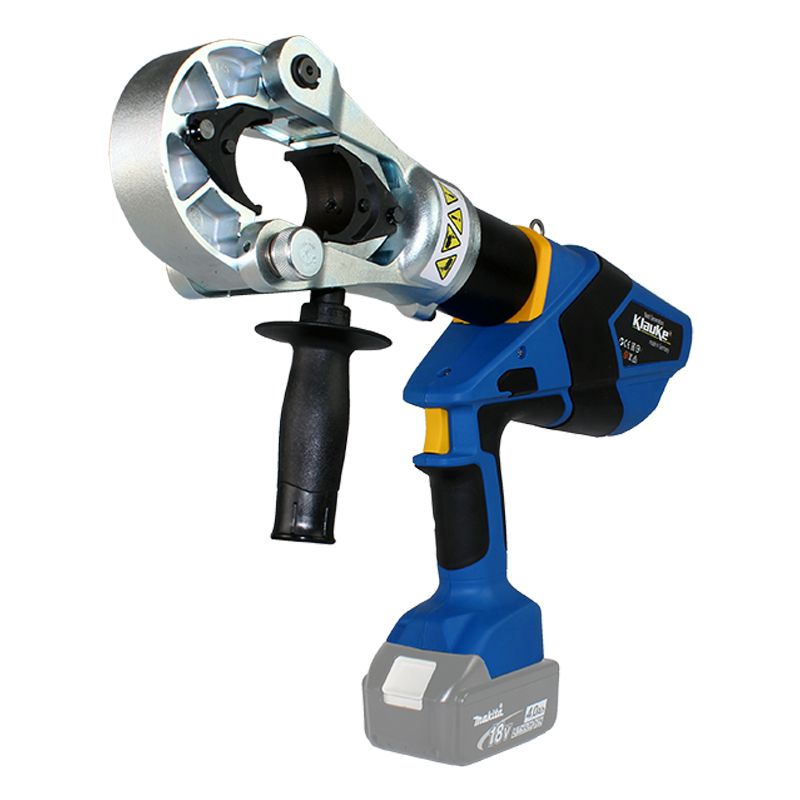

Klauke Battery Powered Hydraulic Crimping Tool 10-630mm
| Part No | Description |
|---|---|
| K135FTCFM-0 | Tool Skin, Case |

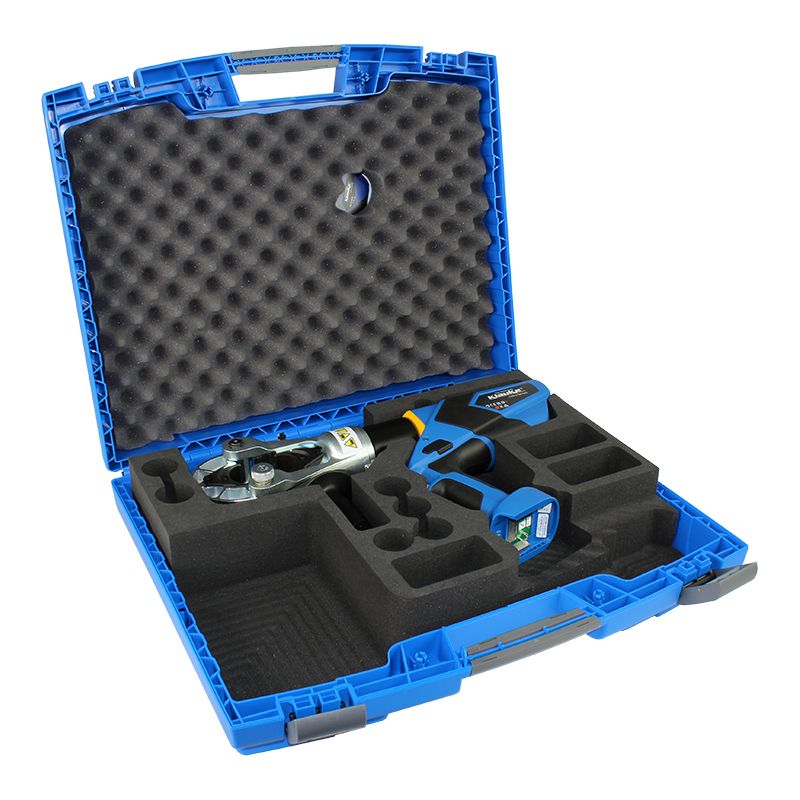

| K135FTCFM-K | Crimping Tool, 12 Tonne Die Adaptor, 2 x 4.0Ah Makita batteries, Makita Charger, Case |
- Large crimping range 10 - 630mm²
- Powerful crimping force of 13.5t
- All tool data can be viewed using on-tool display and i-press app
Features
- Makita battery system
- All data can be easily read via Bluetooth
- Closed head, rotatable
- Simple and safe: One-button operating concept for controlling all tool functions
- Automatic retraction when operation is complete
- 2 stage hydraulic system with fast feed and power stroke
- Automatic retract stop for positioning control in case of multiple crimps
- Effortless working due to balanced centre of gravity
- LED for work area illumination
- LED display for showing tool data
- Battery charge and service display
| Specification | |
|---|---|
| Crimping Force | 135kN |
| Stroke opening width | 50.8mm |
| Crimping Range | 10-630mm |
| Crimping Cycle | approx. 10-11 secs |
| Number of Crimps | approx 85 at 1 x 240mm and NYY-0 |
| Battery | Makita 18V 4.0Ah, Li-Ion |
| Charging Time | 36 min |
| Ambient Temperature | -10C up to +40C |
| Weight Including battery | 8.15kg |
