Multi Tool - Battery Hydraulic c/w 12 Tonne Die adaptor - 2 x Batteries - Charger, Crimp - Cut - Punch
Multi Tool - Battery Hydraulic
c/w 12 Tonne Die adaptor - 2 x
Batteries - Charger, Crimp -
Cut - Punch
Code: EK120UNVCFM-K
Brand: Klauke
Product Details
Kit, multi, battery hydraulic, b/tooth, 12T, 2 x 4Ah 18v Li, UA adapt, Klauke
Brand: Klauke
Product Details
Kit, multi, battery hydraulic, b/tooth, 12T, 2 x 4Ah 18v Li, UA adapt, Klauke
Kit Components
This item contains the following components:
- 1 x Multi Tool, battery hydraulic, 18V, b/tooth, 12T, crimp adapt, skin, Klauke
- 2 x Battery, spare, 18v Li, 4Ah, 36min charge time, Makita
- 1 x Part, charger, battery, spare, 240v, rapid charge, 18v Li, Makita

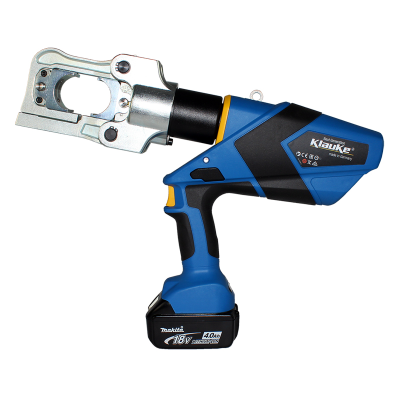

Klauke Battery Powered Hydraulic Universal Crimping, Cutting and Punching Tool 10-400mm
Part No: EK120UNVCFM-0 (skin supplied with case)
Part No: EK120UNVCFM-K (tool supplied with case inc. charger and 2 x batteries)
- One head for crimping, cutting and punching - one tool for all
- Ideal for field operations where all common jobs can be carried out with just one tool
- Very large crimping range
- All tool data can be viewed using on-tool display and i-press app
Features
- Makita battery system
- All data can be easily read via Bluetooth
- Universal head with flip top style, rotatable
- Simple and safe: One-button operating concept for controlling all tool functions
- Automatic retraction when operation is complete
- 2 stage hydraulic system with fast feed and power stroke
- Effortless working due to balanced centre of gravity
- LED for work area illumination
- LED display for showing tool data
- Battery charge and service display
| Specification | |
|---|---|
| Crimping Force | 108kN |
| Stroke | 42mm |
| Crimping Range | 6 - 400mm² |
| Crimping Cycle | Depending on cable type |
| Cutting Range | max. 40mm diameter |
| Punching Capacity | up to 144mm diameter round, up to 138 x 138mm square |
| Charging Time | 45 minutes |
| Weight | 7.35kg |
