1000V Insulated Fuse Extracting Pliers 20-94mm Jaw Opening, Derancourt

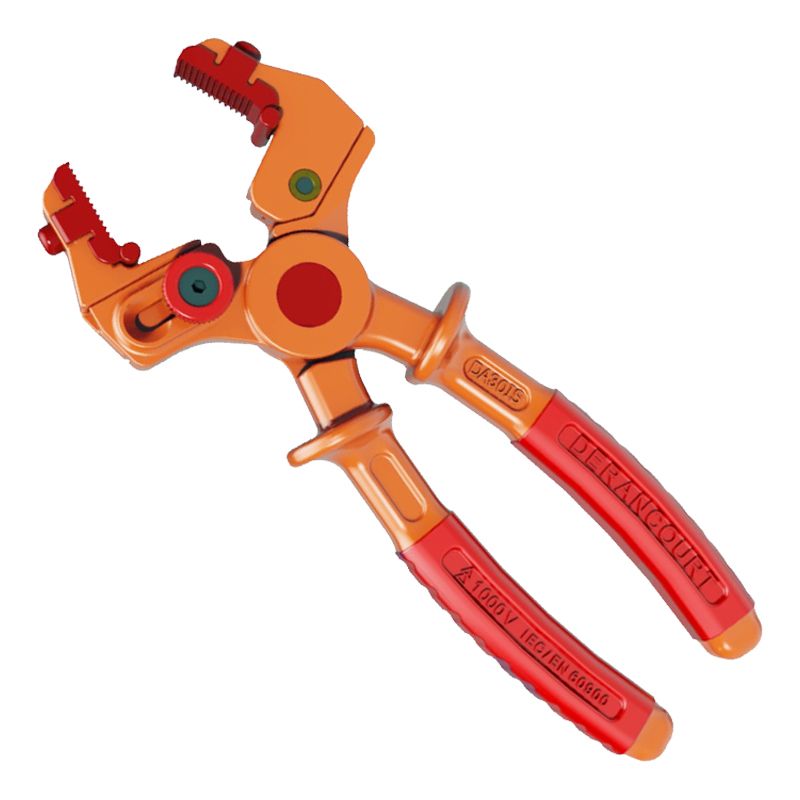

Derancourt Composite 1000V Insulated Fuse Extracting Pliers

• Pliers made of high mechanical strength insulating material
• Length 208mm
• Opening for fuses from 20 to 94mm
• Weight 180g

2 adjustable positions dependent upon use:

Retracted Position
Min. opening
30mm (flat ribbed jaws)
20mm (rounded jaws)

Extended Position
Max. opening
94mm (flat ribbed jaws)
87mm (rounded jaws)

2 profiles available dependent upon use:

1. Jaws with a flat ribbed profile - Eject and turn upside down

2. Jaws with a rounded profile (ERDF innovation)

Derancourt’s insulated and fully insulated hand tools are used for live work or close to live working parts with a nominal voltage up to 1000V and 1500V.

The insulated tools comply with international standard IEC/EN 60 900.

Insulated tools consist of metal tools partly or wholly covered in an insulating material. Derancourt’s insulating coating comprises two layers: - 1 internal rigid white or red, highly insulating layer- 1 external flexible orange layer, protecting the internal layer from physical shocks and improving comfort of use.
