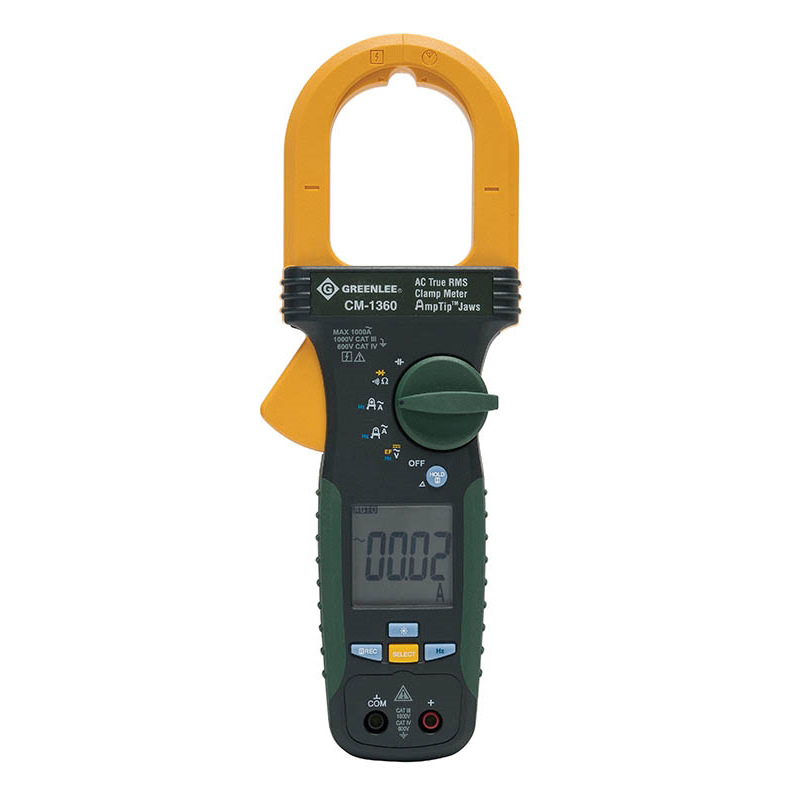

Clamp On Tester, True RMS, CAT III 1000VAC, 47mm Jaw Opening, Greenlee

Clamp On Tester, True RMS, CAT III 1000VAC, 47mm Jaw Opening, Greenlee


Code: CM-1360
Brand: Greenlee
Product Details
Tester, clamp on, true RMS, Cat IV 600vAC, 1000amp, jaw opening 51mm, Greenlee


  • Measures AC current
  • AC voltage measurement with digital low pass filter for accurate readings on variable frequency drives
  • Also measures DC voltage, resistance, capacitance and frequency
  • Tests continuity and diodes
  • Flashlight inside clamp jaw for easier work in dark locations
  • Backlight & relative mode for added versatility
  • AmpTip™ increases accuracy on small wires and low current
  • Two voltage detection modes - non-contact or using a single test lead
  • Data hold
  • Recording of Maximum, Minimum, and Average readings
  • Lifetime warranty

Part No

CM-1360

CM-1560

Amperage Measurement

60, 600, 1000 Amps AC

60, 600, 1000 Amps AC+DC

Display

LCD, 6000 Count

LCD, 6000 Count

Frequency Rating

Voltage: 50/60 Hz.

Current: 40 to 400 Hz

Voltage: 50/60 Hz.

Current: 40 to 400 Hz

Includes

 (2) 1.5V AA Batteries, Test Leads, Carrying Case

(2) 1.5V AA Batteries, Test Leads, Carrying Case

Jaw Opening

2.0” (51 mm)

2.0” (51 mm)

Measurement Category

CAT III 1000V, CAT IV 600V

CAT III 1000V, CAT IV 600V

Resistance Measurement

600, 6k, 60k Ohms

600, 6k, 60k Ohms

Standard

CAT IV, C/US UL Listed, CE

CAT IV, C/US UL Listed, CE

True Power

AC True RMS

AC+DC True RMS

Voltage Measurement

 600, 1000 Volts AC/DC

600, 1000 Volts AC/DC
