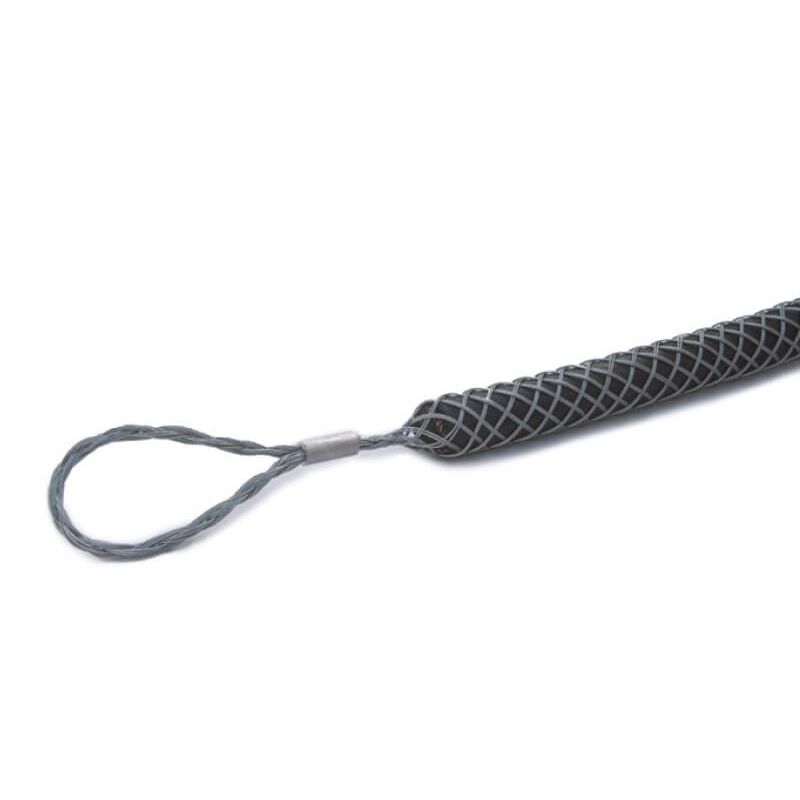

C1 grips are for general hauling applications.
They have a soft eye for fitting in tight spaces, are made from durable 2070 grade galvanised wire, and are swaged with an aluminium alloy ferrule.
They have a slimline design to reduce snagging, and all protruding wires are covered with heat shrink to protect the operators hands.
|Part No||To suit cable O.D||Grip Length||Eye Length||Total Length||Unit Weight||Min. Breaking Load||Working Load Limit|
|CHD1006||6-12mm||350mm||110mm||460mm||0.04kg||5 kN||1.6 kN|
|CHD1010||10-14mm||350mm||130mm||480mm||0.05kg||5 kN||1.6 kN|
|CHD1014||14-19mm||400mm||160mm||560mm||0.07kg||9 kN||3 kN|
|CHD1019||19-28mm||500mm||190mm||690mm||0.13kg||15 kN||5 kN|
|CHD1028||28-40mm||600mm||210mm||810mm||0.26kg||24 kN||8 kN|
|CHD1040||40-55mm||800mm||240mm||1040mm||0.05kg||35 kN||11 kN|
|CHD1055||55-75mm||900mm||280mm||1180mm||1kg||62 kN||20 kN|
|CHD1075||75-95mm||1000mm||350mm||1350mm||1.9kg||98 kN||32 kN|
|CHD1095||95-120mm||1200mm||390mm||1590mm||2.9kg||133 kN||44 kN|
