Wire Grip 2T, Al, Cu, 5-20mm,
Safety Latch, Locking Nut
Option, NGK
Wire Grip 2T, Al, Cu, 5-20mm,
Safety Latch, Locking Nut
Option, NGK
Code: AL-2TON-GRIP-L
Brand: NGK
Product Details
Grip, wire, 5-20mm, Al, ACSR, 20kN, 2T, WLL, safety latch, locking nut option, NGK
Brand: NGK
Product Details
Grip, wire, 5-20mm, Al, ACSR, 20kN, 2T, WLL, safety latch, locking nut option, NGK

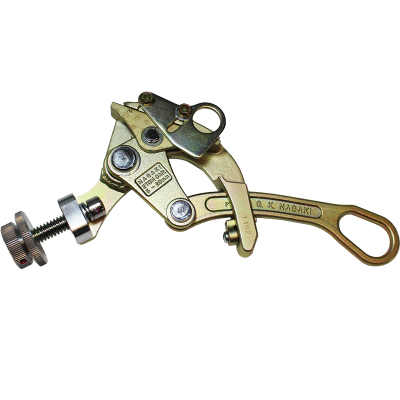

Nagaki AL-2TON-GRIP-L
| Part No | Min-Max Dia (mm) | WLL (kN) | Jaw L (mm) | Jaw Type | Wt (kg) | Safety Latch | Suitable for wire/cable | Eye Width (mm) | Notes |
|---|---|---|---|---|---|---|---|---|---|
| AL-2TON-GRIP-L | 5-20 | 20 | 100 | Smooth | 1.7 | YES | ACSR, Bare Al and Bare Cu | 32 | Fine smooth jaw, lower risk of conductor damage |
- Fine smooth jaws to minimise conductor damage
- Locking nut option
- Manufactured from high tensile alloy steel, hot forged, heat-treated, precision machined and zinc-plated
- Safety latch on all NGK models
- Special shaped pulling eyes suit all brands of strap pullers
Other Nagaki Grips Available
| Part No | Min-Max Dia (mm) | WLL (kN) | Jaw L (mm) | Jaw Type | Wt (kg) | Safety Latch | Suitable for wire/cable | Eye Width (mm) | Notes |
|---|---|---|---|---|---|---|---|---|---|
| MINI-GRIP | 1-10 | 5 | NA | Serrated | 0.3 | NO | Steel Rod, Barbed and Catenary Wire | 16 | Curved Jaw |
| SD-L-GRIPL/W | 2.6-15 | 10 | 34 | Serrated | 0.6 | YES | Steel Rod/Wire, Bare Cu and Catenary Wire | 26 | Large Eye |
| MESSEN-LGRIP-L | 4-12 | 10 | 50 | Serrated | 0.7 | YES | Steel Wire, Bare Cu, Al Clad Steel and Catenary Wire | 26 | Double Lock Nut |
| SS-GRIP | 5-12 | 10 | 160 | Slight Serrations | 1.6 | YES | Telephone Cable | 26 | - |
| 1TON-L-GRIP | 4-22 | 10 | 60 | Serrated | 1.4 | YES | Bare Cu, Covered Conductor and Catenary Wire | 32 | Large Eye |
| 2TON-L-GRIP | 4-22 | 20 | 60 | Serrated | 1.4 | YES | Bare Cu, Covered Conductor and Catenary Wire | 32 | Large Eye |
| MIDDLE-L-GRIP | 5-25 | 20 | 110 | Serrated | 1.8 | YES | Bare Cu, Covered Conductor and Catenary Wire | 32 | Large Eye |
| CCT-GRIP | 5-25 | 20 | 110 | Serrated | 1.8 | YES | CCT Up to 180mm2 Up to 80mm2 | 32 | Large Eye |
| 3TON-GRIP | 8-22 | 30 | 120 | Serrated | 3.1 | YES | Stay Wire, Bare Cu, Wire Rope, Catenary Wire and Rail Contact Wire | 34 | - |
| 4TON-GRIP | 13-28 | 40 | 150 | Serrated | 5.0 | YES | Stay Wire, Bare Cu, Wire Rope, Catenary Wire and Rail Contact Wire | 50 | - |
| 6TON-GRIP | 13-28 | 60 | 150 | Serrated | 5.2 | YES | Stay Wire, Bare Cu, Wire Rope, Catenary Wire and Rail Contact Wire | 25 | - |
| 10TON-GRIP | 18-32 | 100 | 180 | Serrated | 10.0 | YES | Stay Wire, Bare Cu, Wire Rope, Catenary Wire and Rail Contact Wire | 60 | - |
| AL-L-GRIP | 5-22 | 10 | 60 | Smooth | 1.1 | YES | ACSR, Bare Al & Bare Cu | 32 | Large Eye |
| AL-2TON-GRIP-L | 5-20 | 20 | 100 | Smooth | 1.7 | YES | ACSR, Bare Al and Bare Cu | 32 | Fine smooth jaw, lower risk of conductor damage |
| AL-MIDDLE-GRIP* | 5-25 | 20 | 110 | Smooth | 1.8 | YES | ACSR, Bare Al and Bare Cu | 32 | Fine smooth jaw, lower risk of conductor damage |
| AL-MIDDLE-GRIP-L | 5-25 | 20 | 110 | Smooth | 2.9 | YES | ACSR, Bare Al and Bare Cu | 32 | Fine smooth jaw, lower risk of conductor damage |
| AL-LARGE-GRIP* | 16-32 | 20 | 110 | Smooth | 2.0 | YES | ACSR, Bare Al and Bare Cu | 32 | Fine smooth jaw, lower risk of conductor damage |
| AL-3TON-GRIP | 8-22 | 30 | 120 | Smooth | 3.0 | YES | ACSR, Bare Al and Bare Cu | 34 | Fine smooth jaw, lower risk of conductor damage |
| AL-4TON-GRIP | 20-35 | 40 | 140 | Smooth | 3.7 | YES | ACSR, Bare Al and Bare Cu | 34 | Fine smooth jaw, lower risk of conductor damage |
| HOT-M-GRIP | 5-25 | 20 | 110 | Smooth | 2.0 | YES | ACSR, Bare Al and Bare Cu | 32 | Hot Stick Rings |
| HOT-L-GRIP | 16-32 | 20 | 110 | Smooth | 2.0 | YES | ACSR, Bare Al and Bare Cu | 32 | Hot Stick Rings |
| AL-10TON-GRIP | 32-46 | 100 | 300 | Smooth | 14 | YES | ACSR, Bare Al and ACSR | 63 | Smoth Jaw |
| TROLLEY-GRIP1L-S | 5-16 | 20 | 100 | Serrated | 1.5 | YES | Rail Contact Wire, Bare Cu, Catenary Wire and Wire Rope | 32 | Large Eye |
| TROLLEY-GRIP-2-L | 8-20 | 20 | 150 | Serrated | 2.8 | YES | Rail Contact Wire, Bare Cu, Catenary Wire and Wire Rope | 25 | Large Eye |
| TROLLEY-GRIP-4-L | 13-28 | 40 | 150 | Serrated | 5.2 | YES | Rail Contact Wire, Bare Cu, Catenary Wire and Wire Rope | 32 | Large Eye |
| ABC-GRIP-S | 2x16 and 4x35mm2 | 6.0 | 130 | Serrated | 1.8 | YES | ABC 2 x 16mm2 tp 4 x 35mm2 | 32 | Large Eye |
| ABC-GRIP | 4x35 and 4x95mm2 | 8.5 | 190 | Serrated | 3.3 | YES | ABC - 4 x 35mm2 to 4 x 95mm2 | 35 | Large Eye |
| ABC-GRIP-L | 4x95 and 4x150mm2 | 20 | 190 | Serrated | 3.3 | YES | ABC - 4 x 95mm2 to 4 x 150mm2 | 35 | Large Eye |
