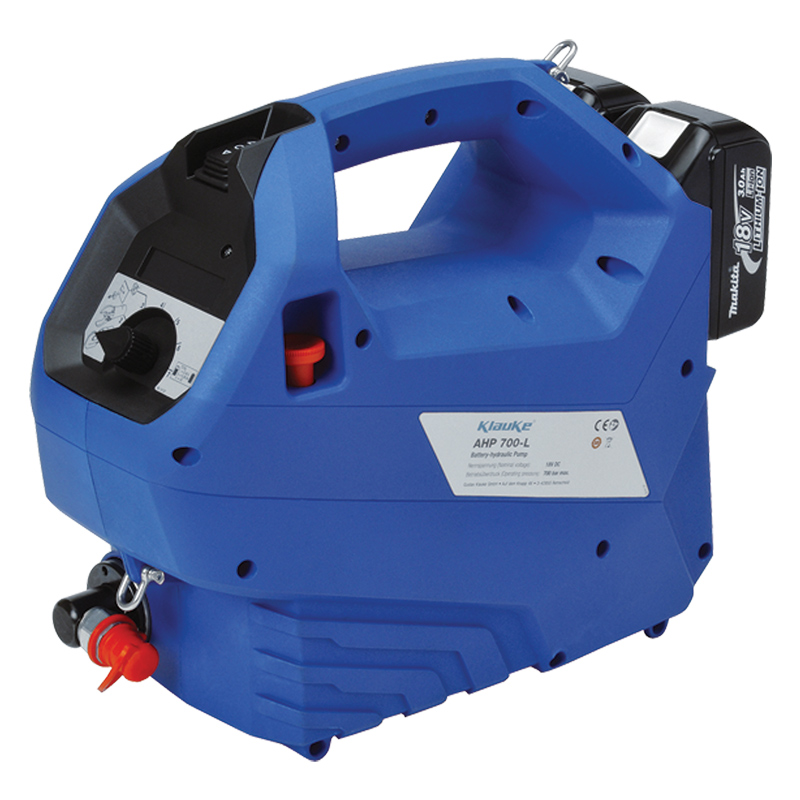

Hydraulic Battery Pump 10,000 PSI (700bar) Klauke

Hydraulic Battery Pump 10,000 PSI (700bar) Klauke

Code: AHP700LC
Brand: Klauke
Product Details
04.07.2022 - 20 weeks manufacturing leadtime

Battery Hydraulic Pump for Crimping, Cutting & Punching Tools / Heads

  • Compact and lightweight battery hydraulic pump, drive unit
  • Operates single-acting tools up to 700 bar pressure
  • Three standard programs - crimping, cutting and punching
  • Combine with 12T, 25T, 60T Klauke heads (see range below)
  • Choose between programs crimping with Manual Retraction Stop function, cutting and punching. The MRS+ function allows to program the stop position during retraction to start subsequent crimping operations almost immediately. When choosing the punching programme the punch will stop automatically when operation has completed.
  • Large display monitors operations with pressure reading, diagnosis and adjustment of the pump
  • AHP700L features an Intelligent Pressing System (IPS) that monitors the crimping operation. Deviations to the maximum operation pressure of 700 bar are identified by an acoustic signal and visual display
  • Multifunction light diode serves as the service indicator, charging condition of batteries and data transmission to the computer via USB adapter PGA1 (accessory)
  • The quick action coupling for the connection of tool heads with hydraulic hoses tilts 180° and is protected by the design of the polyamide external housing


  • Operating pressure Max. 700 bar
  • Oil volume Approx. 800 ml
  • Flow rate low pressure Up to 0.9 L/min
  • Flow rate high pressure 0.3 L/min
  • Battery voltage 18 V
  • Battery capacity Qty 2 x Makita 18 V / 3.0 Ah, Li-Ion
  • Charging time 22 minutes
  • Weight with 2 batteries 6.4 kg
  • Ambient temperature -15°C +40°C
  • Dimensions (LxWxH) 330 x 160 x 280 mm


  • Two Makita Li-ion batteries 18 V / 3.0 Ah
  • Charger for 18 V Li-ion batteries
  • Bag for batteries and charger
  • Adjustable shoulder belt
  • 2m High pressure hose, filled with oil
  • Remote control with 1.5m cable


  • Mains adapter NG2/230
  • High pressure hoses from 3m up to 10m, filled with oil
  • Two-hand safety control
  • Foot switch
