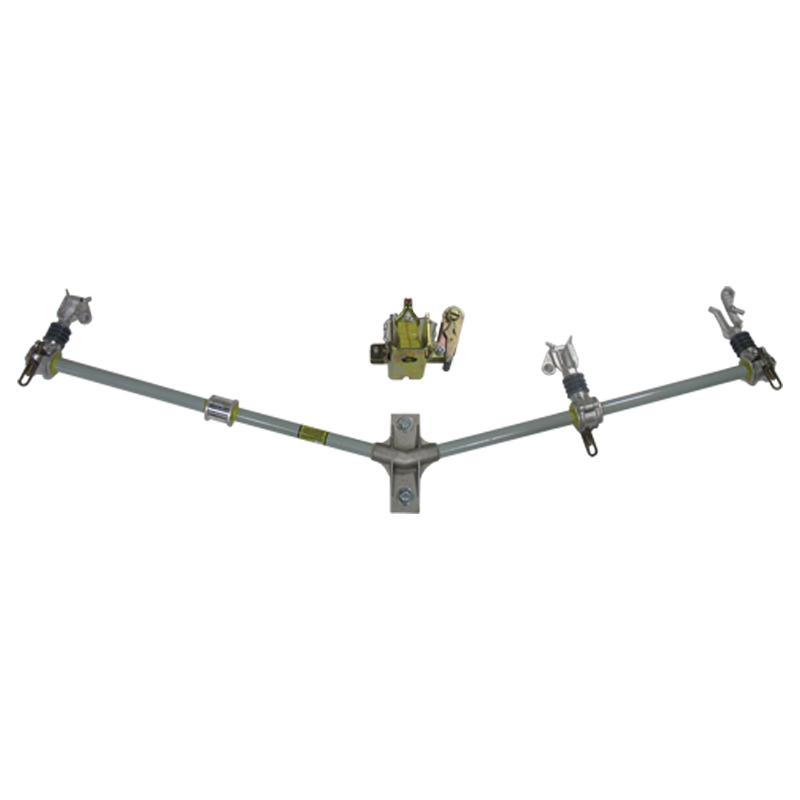

Arm, temporary, V, 2.05m L, 3 wire holders, insulators, 35kV, mounting base, Hastings


Code: 5054
Brand: Hastings Fiberglass Products
Product Details:
Arm, temporary, V, 2.05m L, 3 wire holders, insulators, 35kV, mounting base, Hastings

THE TEMPORARY CROSS ARM IS AN EXCELLENT TOOL FOR CHANGING OUT CROSS ARMS

Solid fiberglass arms for maximum strength. Rated for 34.5KV phase to phase.

  • Two piece assembly makes installation easy and fast
  • The mounting base includes a ratchet and strap assembly for lightweight and safety. U-Shape design fits over pole top pin.
  • Fiberglass arm includes conductor holders with insulators, acording to the table below.
  • Conductor latches and wire holders are hot stick operable.
  • Captive bolts and washers on arm assembly enable the arm to be mounted to the base. No tools are required.
  • Load limit is 68kg per side
    Part No.DescriptionMax Use Ø - Ø (kV)Length (mm)Conductor Holders #Cond Holder Model (With Insulator)WLL (kg) per sideMax Cond OD (mm)Wt (kg)
    5051Arm & Mounting Base3516252A10002682712.3
    5053Arm & Mounting Base3516252A10039686712.7
    5054Arm & Mounting Base3521953A10002682715
    5055Arm & Mounting Base3521953A10039686715.4

    Replacement Parts
    A30220Arm Only351625----10
    A30233Arm Only352195----11.8
    A30221Mounting Assembly------6.4
    5042Strap Only-- ---0.5
    A10002Conductor Holder & Insulator    68271.36
    A10039Conductor Holder & Insulator    68671.73
