Arm, extension, 1.52m, 1 x conductor holder and insulator, 34.5kV, Hastings

Ten Group // FIBREGLASS STICKS & ACCESSORIES // Conductor Supports, Lifts & Arms // Extension Arms // Arm, extension, 1.52m, 1 x conductor holder and insulator, 34.5kV, Hastings
Arm, extension, 1.52m, 1 x conductor holder and insulator, 34.5kV, Hastings


Code: 5001
Brand: Hastings Fiberglass Products
Product Details:
Arm, extension, 1.52m, 1 x conductor holder and insulator, 34.5kV, Hastings

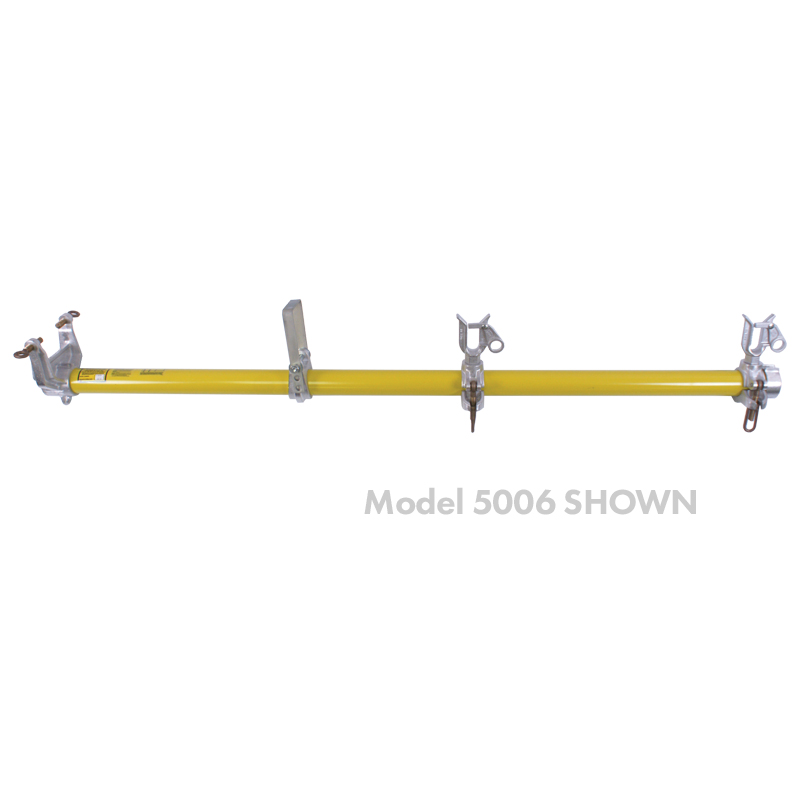

Hastings Standard Fibreglass Extension Arms

  • Used for temporary support, reconductoring and line maintenance
  • Can be used for obtaining clearances in congested areas
  • Easy to install
  • Adjustable conductor holders
  • Foam filled fibreglass shaft
  • Tested per OSHA & ASTM F-711
  • Eye bolts and nuts are silicone bronze to resist seizing
Part # Arm Length Number of Conductor Holders WLL per Conductor Holder Weight
5001 1.52m 1 138kg 5.2kg
5006 1.82m 2 138kg 6.6kg
5016 1.82m 2 138kg 6.7kg
5016-1 1.82m 2 138kg 7.0kg
