Wire Rope Ratchet Hoist, 3.0m Double/ 6.0m Single Pull, Medium Frame, Lug-All
Ten Group // PULLING & HAULING // Hoists and Lever Blocks // Wire Rope Hoists // Wire Rope Ratchet Hoist, 3.0m Double/ 6.0m Single Pull, Medium Frame, Lug-All
Wire Rope Ratchet Hoist, 3.0m Double/ 6.0m Single Pull, Medium Frame, Lug-All


Code: 4000-20-ANZ
Brand: Lug-All
Product Details

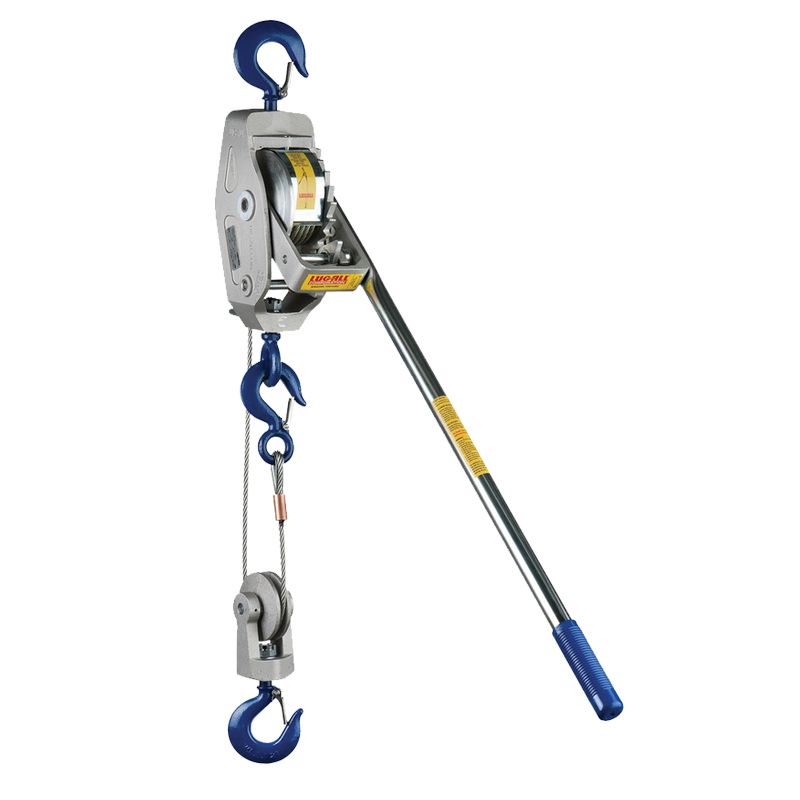

Hoist, ratchet, wire, single, 6m/900kg, double, 3m/1800kg, medium frame, Lug-All

  • Easy to handle when wearing gloves
  • Super flexible 133-strand aircraft cable
  • Fast connecting 360° swiveling hooks with safety latches for quick, positive loading and unloading
  • Reversible handle designed to bend on overload
  • Use the entire cable length! The exclusive Lug-All swaged, ball-shank anchor locks the cables end into the drum
  • Self lubricating bearings
  • Quick release will not function when the cable is under load
  • Non-slip interlocking pawl system
  • Open design allows easy inspection
  • Marine grade models available
  • Aluminium alloy frame and drop forged steel hooks

Single Line Pull Chart

Part # Frame Size Capacity Max Single Handle Pull Lift/Min. Distance Cable Length Weight
2250-20-ANZ Small 510kg 55kg 6.1m/0.40m 6.30m 4.2kg
3000-30-ANZ Medium 680kg 61kg 9.0m/0.46m 9.45m 6.3kg
4000-20-ANZ Medium 909kg 64kg 6.1m/0.40m 6.60m 7.0kg

Double Line Pull Chart

Part # Frame Size Capacity Max Double Handle Pull Lift/Min. Distance Cable Length Weight
2250-20-ANZ Small 1022kg 55kg 3.0m/0.53m 6.30m 4.2kg
3000-30-ANZ Medium 1360kg 61kg 4.5m/0.60m 9.45m 6.3kg
4000-20-ANZ Medium 1818kg 64kg 3.0m/0.60m 6.60m 7.0kg
