Rail Bonding Connector

Rail Bonding Connector

Code: 250400
Brand: Connector Products, Inc.
Product Details
Rail bonding connector, Connector Products

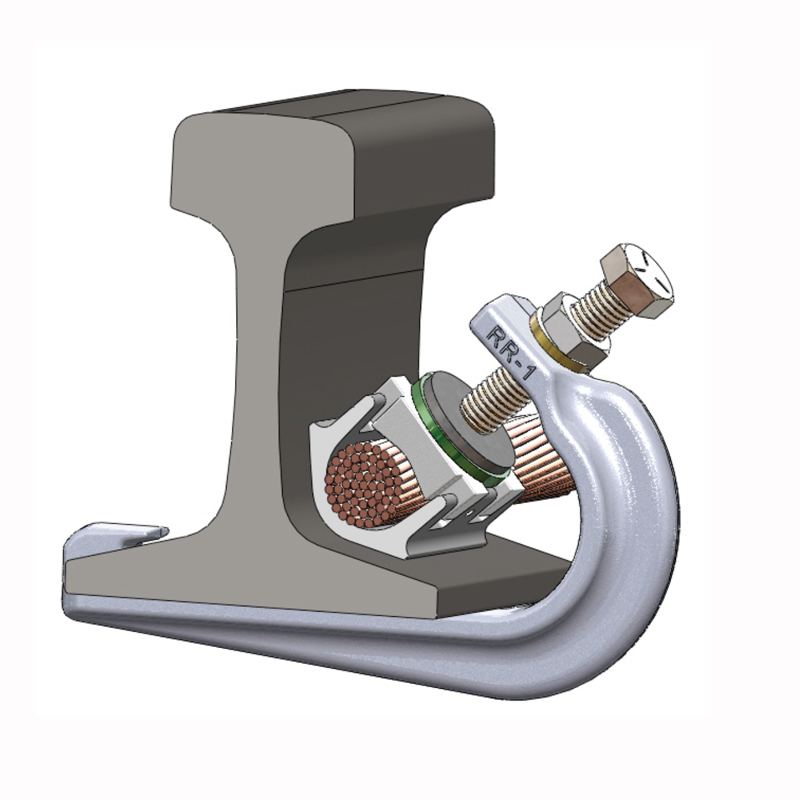

The Rail Connector range is designed as a permanent connection for Copper conductor to a variety of rails used in Heavy Rail Mass Transit systems.

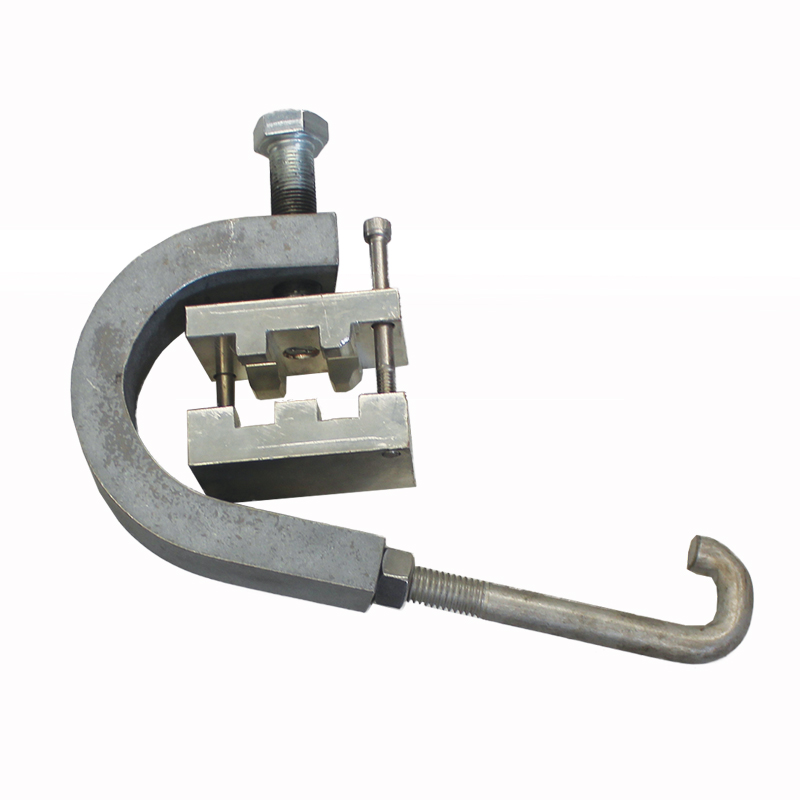

Constructed using a Heavy Duty Air Craft quality steel spring member, Copper Cable Nest, Indentor, Hex Head Bolt and Locking Nut.

  • No need to drill holes in the rail
  • No need to weld conductor to the rail
  • The rail is not subjected to warping by excessive heat or to weakening by drilling
  • Labor Saving- Installation time is 1/6 man hours
  • Fewer rail connections required because of the large conductor capacity
  • Single conductors up to 1000 MCM
  • Dual conductors up to 750 MCM
  • Large conductors can be bent away from the rail after installation without the risk of damaging the connector. Unlike Compression type lugs that can crack during this process
  • The Clamp is an active spring that applies a consistent force on the conductor ensuring a positive connection through heat cycling and train vibration
  • The “J” shaped spring member of the connector helps overcome loosening problems associated with harsh train vibrations by flexing rather than breaking
  • Whereas a Static type connection doesn’t have this resiliency and could crack under prolonged vibration
  • The consistent spring pressure also prevents moisture and contamination from seeping into the connection
  • All Copper components are Tin Plated and Steel Components are Galvanised
