Wire Grip Al, Cu, ACSR,
Covered Conductor, 16-32mm,
Safety Latch, Klein
Wire Grip Al, Cu, ACSR,
Covered Conductor, 16-32mm,
Safety Latch, Klein
Code: 1685-31
Brand: Klein
Product Details
Grip, wire, 16 - 32mm, Al, Cu, ACSR, covered, 3409kg WLL, safety latch, Klein
Brand: Klein
Product Details
Grip, wire, 16 - 32mm, Al, Cu, ACSR, covered, 3409kg WLL, safety latch, Klein

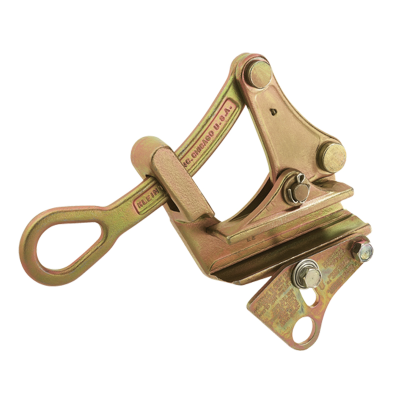

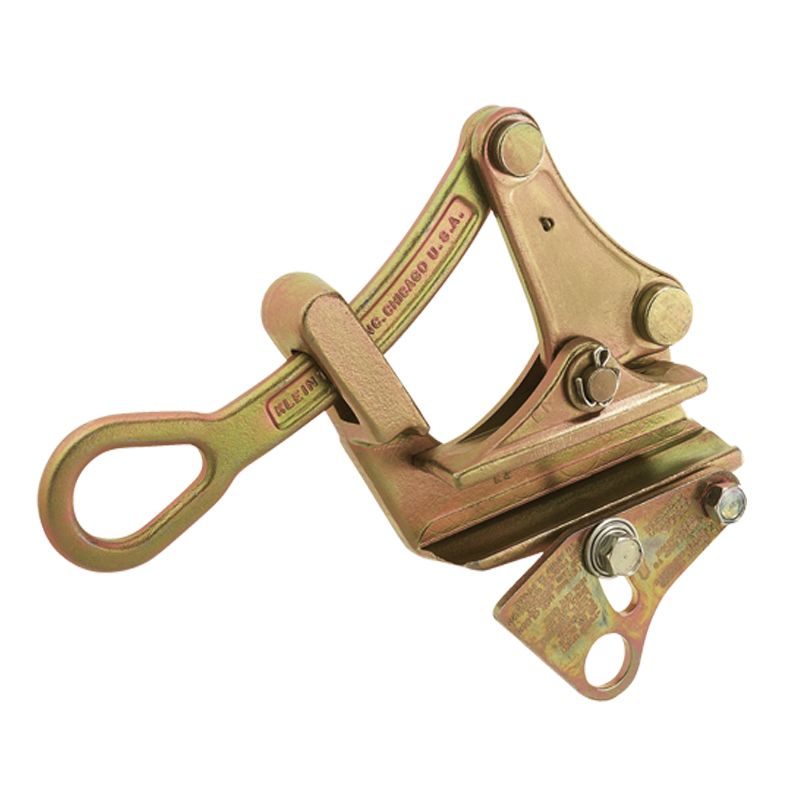

Klein 1685-31
Klein Parallel Jaw Grip
| Part No | Min-Max Dia (mm) | WLL (kN) | Jaw Type | Jaw Length (mm) | Suitable for | Wt (kg) |
|---|---|---|---|---|---|---|
| S1685-31 | 16-32 | 3409 |  |
114 | Bare Al, Cu, ACSR | 2.3 |
- Lightweight, compact grips pull an exceptionally wide range of cable sizes and types
- Designed with a round inside-jaw contour for maximum contact to minimize conductor damage
- Lower jaw is serrated to firmly grip insulated cables and conductors
- Design includes a latch that prevents the grip from falling in case of jaw disengagement from the cabl.
- Large-diameter eye accommodates large hooks on hoists, winches and tackle block
- Manufactured from drop-forged steel. Machined and heat treated for excellent durability
Other Klein Grips Available from TEN
| Part No | Min-Max Dia (mm) | WLL (kN) | Jaw Type | Jaw Length (mm) | Suitable for | Wt (kg) |
|---|---|---|---|---|---|---|
| S1613-40H | 3-9.4 | 2041 | 1 | 106 | Aircraft Cable, EHS, Messenger and Guy Strand. With hot latch and spring | 1.4 |
| 1604-20L | 3.2-12.7 | 2268 | 2 | - | Aircraft Cable, EHS, Messenger and Guy Strand. With hot latch and spring | 1.0 |
| 1684-5F | 4-14 | 3629 | 3 | 127 | Aircraft Cable, EHS, Messenger and Guy Strand. | 2.9 |
| 1685-20 | 4-22 | 2041 | 4 | 64 | Bare Al, Cu, ACSR | 1.3 |
| 1625-20 | 7.1-19 | 3636 | 2 | - | Wire Rope where damage is not an issue | 1.8 |
| 1656-40 | 13.5-18.8 | 3629 | 4 | 140 | Ideal for Bare Al and ACSR | 3.8 |
| Jaw Type | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
 |
 |
 |
|
