Stirrup Style Wedge Connector, Shear Bolt, Main 10.515-13.258mm, 550Amp Bail Rating
Stirrup Style Wedge Connector, Shear Bolt, Main 10.515-13.258mm, 550Amp Bail Rating


Code: 102009
Brand: Connector Products, Inc.
Product Details

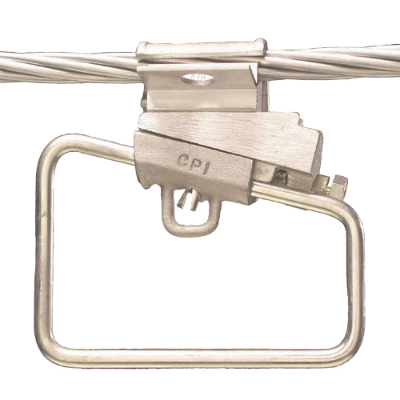

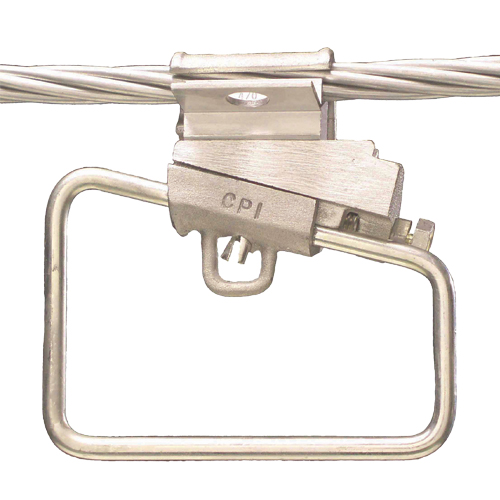

Connector, wedge, stirrup, shear bolt, main 10.515-13.258 mm, 550amp bail rating, CPI


Aluminium Strrup Connectors are designed for connecting to Aluminum or Copper conductors. Stirrups are intended to product the main line conductor from damage and arcing as Hot Line clamps are connected and disconnected.

CPI Stirrup Connectors are extremely beneficial in applications that may need to be Disconnected.

During installation, when proper spring tension and torque is achieved, the Shear Head Bolt will break off giving the installer a positive indication of a correctly completed connection.

  • Easy to remove and re-use without damaging the conductor
  • Designed for use in connecting aluminium or copper conductors for Transmission and Distribution systems
  • Heavy Duty Tin Plated bail has a large loop to allow for multiple connecting positions
  • Tin Plated bail eliminates galvanic reaction
  • Utilizes the industry-proven Wedge Connecting principle and is quick and easy to apply with a common socket or impact wrench

No Special Tools Required for Installation

  • High strength A356 heat treated spring aluminium C-Body ensures permanent connection and maintains consistent pressure on the conductors
  • Installation time is quicker than conventional crimp-type or molded joints
  • Easily adaptable to standard hot-stick tools
  • High-conductivity grit type corrosion inhibitor is factory applied for ease of installation and longevity while the connector is in service
  • Remains permanently locked through fault current or power surges
  • May be used in non-corrosive environments to connect copper conductors
  • Excellent option for emergency restoration where outside crews might not have shooton or compression tooling
  • 6101 EC grade aluminum interface offers a low resistance conductive path for an efficient electrical connection
  • All CPI clamps are type tested in accordance with AS/NZS 4325.1, IEEE 837 & ANSI C119.4

Conductor Type & Size
Aluminum ACSR

Conductor Type & Size Copper

CPI Bail
Part Number



7/.064 (7/1.63)

102011



7/.080 (7/2.03)

102010

3/2.75 SC/GZ
3/12 SC/GZ (3/2.64)



n/a

3/2.75 SC/AC
3/4/2.5 ACSR/GZ
3/4/2.5 ACSR/AC



n/a

7/2.50 AAC

7/2.75
7/.104 (7/2.64)

102010

7/3.00 AAC
6/1/3.00 ACSR
6/1/.118 ACSR

19/2.00

19/.083 (19/2.11)

102009

7/3.75 AAC
6/1/3.75 ACSR



7/4.50 AAC
6/.186+7/.062 ACSR

19/2.50
19/.116 (19/2.75)



19/2.75
19/.116 (19/2.95)

19/3.25 AAC
19/.128



336915-1

19/3.75 AAC
19/.149 AAC



556580
